Furnish New Battery Xalt Energy 31HP Series TPP 31HP 100 M

Technology: Li_NMC.png
Furnish New Battery Xalt Energy 31HP Series TPP 31HP 100 M

$295.24

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Xalt Energy 31HP Series TPP 31HP 100 M

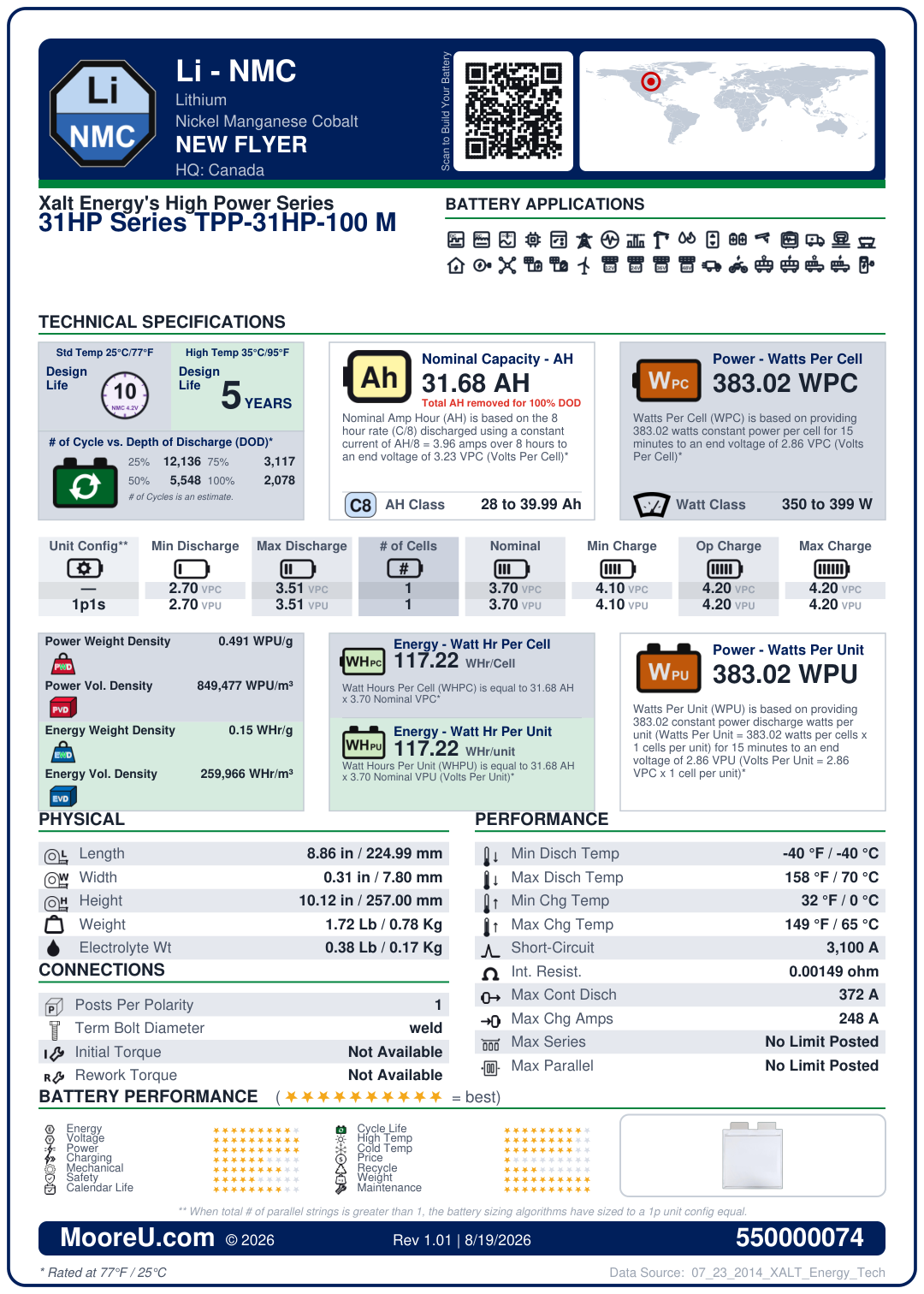

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Xalt Energy 31HP Series TPP 31HP 100 M
Adjustment	26
AH Per String	31.68
AH Per String Rating	8 hr @ 3.23 VPC
Cells Per Unit	1
Nominal VPC	3.7
Model KWH	0
Charge VPC	4.2 (Min: 2.9, Max: 4.2)
Discharge VPC	Min: 2.7, Max: 3.51
Operational Temp Comp	-0.00555 V/°C/cell
Cycle Temp Comp	-0.0074 V/°C/cell
Discharge Temp Range	-40°C to 70°C
Charge Temp Range	0°C to 65°C
ISC Amps	3100
Internal Resistance	0.00149 Ohms
Dimensions (L x W x H)	8.858 x 0.307 x 10.118 in
Weight	1.72 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (weld mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	Tab
FOB	M
Max Continuous Discharge	372 Amps
Max Charge Amps	248 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	383
Watts Per Cell Rating	15 min @ 2.86 VPC
Weight of Electrolyte	0.3784 lbs
