Furnish New Battery Xalt Energy 75HP Series TPP 75HP 100 M
Technology: Li_NMC.pngFurnish New Battery Xalt Energy 75HP Series TPP 75HP 100 M
$714.29
Build my Battery
Recycle My Battery

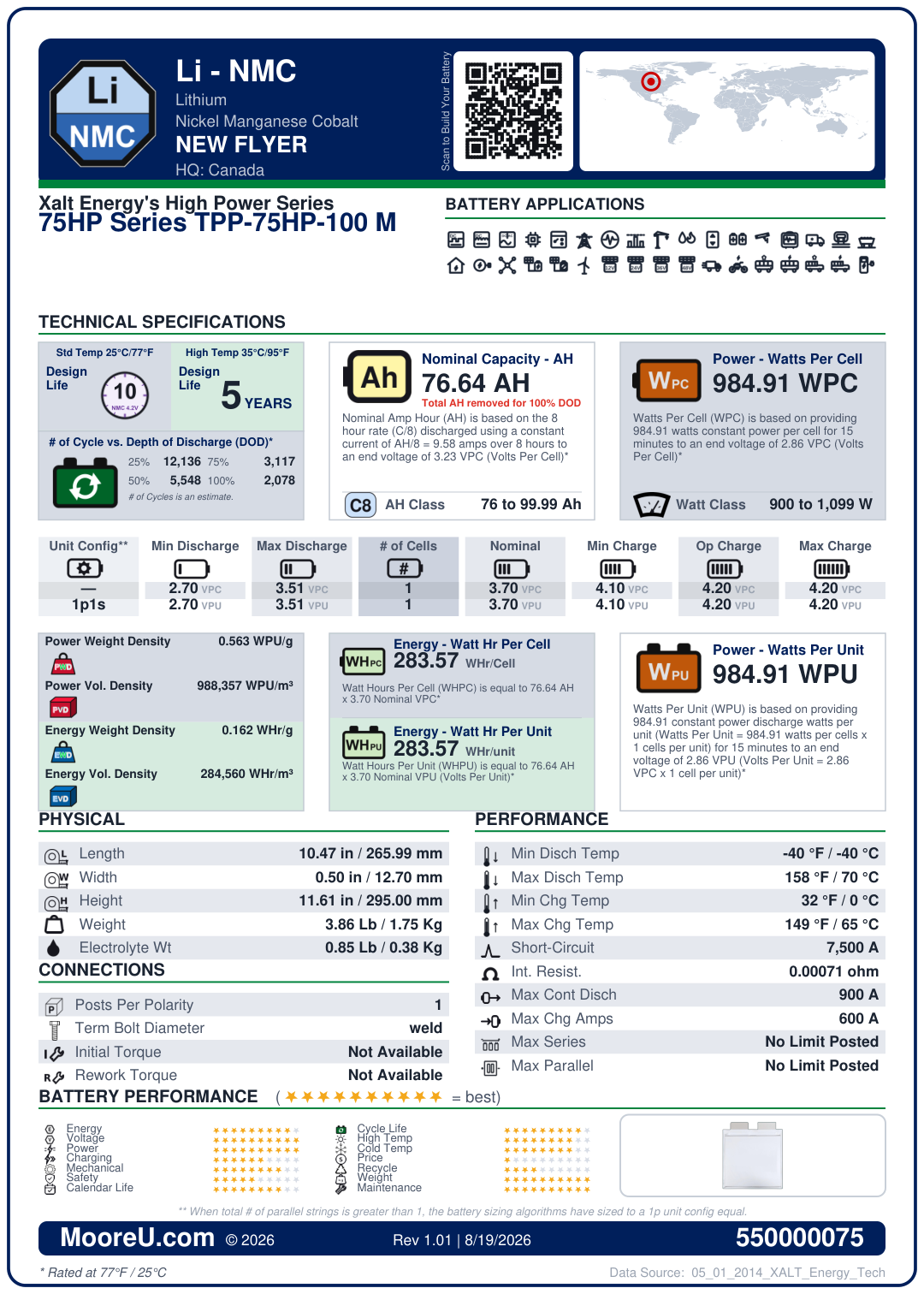

Furnish New Battery Xalt Energy 75HP Series TPP 75HP 100 M
| Battery Model | Xalt Energy 75HP Series TPP 75HP 100 M |
|---|---|
| Adjustment | 43 |
| AH Per String | 76.64 |
| AH Per String Rating | 8 hr @ 3.23 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 3.7 |
| Model KWH | 0 |
| Charge VPC | 4.2 (Min: 2.9, Max: 4.2) |
| Discharge VPC | Min: 2.7, Max: 3.51 |
| Operational Temp Comp | -0.00555 V/°C/cell |
| Cycle Temp Comp | -0.0074 V/°C/cell |
| Discharge Temp Range | -40°C to 70°C |
| Charge Temp Range | 0°C to 65°C |
| ISC Amps | 7500 |
| Internal Resistance | 0.00071 Ohms |
| Dimensions (L x W x H) | 10.472 x 0.5 x 11.614 in |
| Weight | 3.86 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0 in (weld mm) |
| Torque (Initial / Maintenance) | 0 / 0 in-lbs |
| Container | V0 |
| Terminal | Tab |
| FOB | M |
| Max Continuous Discharge | 900 Amps |
| Max Charge Amps | 600 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 985 |
| Watts Per Cell Rating | 15 min @ 2.86 VPC |
| Weight of Electrolyte | 0.84876 lbs |
| Part Number | Description | Dimensions (L x W x H) | Max Capacity |
|---|---|---|---|
| Furnish New Battery Enclosure MNBE D (1 shelf) L16 L16 midnitesolar.com | Our Best Value! Battery Enclosure with locking door and two shelves. MNBE-D holds 8 GVX3050T or 8 golf cart or 8 group 31 batteries. With the optional third shelf, the MNBE-D holds 12 group 31 batteries. MNBE-D battery enclosure accepts MNEDC175 or 250 br | 34.000 x 15.250 x 16.41 in |
180 units |
| Furnish New Battery Enclosure MNBE C (2 Shelf) L16 L16 midnitesolar.com | MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two | 34.000 x 15.250 x 16.41 in |
270 units |
| Furnish New Battery Enclosure MNBE CL16 (1 Shelf) L16 L16 midnitesolar.com | MNBE-CL16 Battery Enclosure with locking door and two shelves. Holds eight sealed L-16 batteries. Gray powder coated steel. Two cabinets can be stacked horizontal for expansion. Enclosure size: 36.5" wide x 16" deep x 55" tall/261 Lbs including pallet (tr | 34.000 x 15.250 x 16.41 in |
180 units |
| Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
| Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
1460 units |
