Furnish New Battery CDTechno Dynasty MR Series UPS12 540MR 0 25

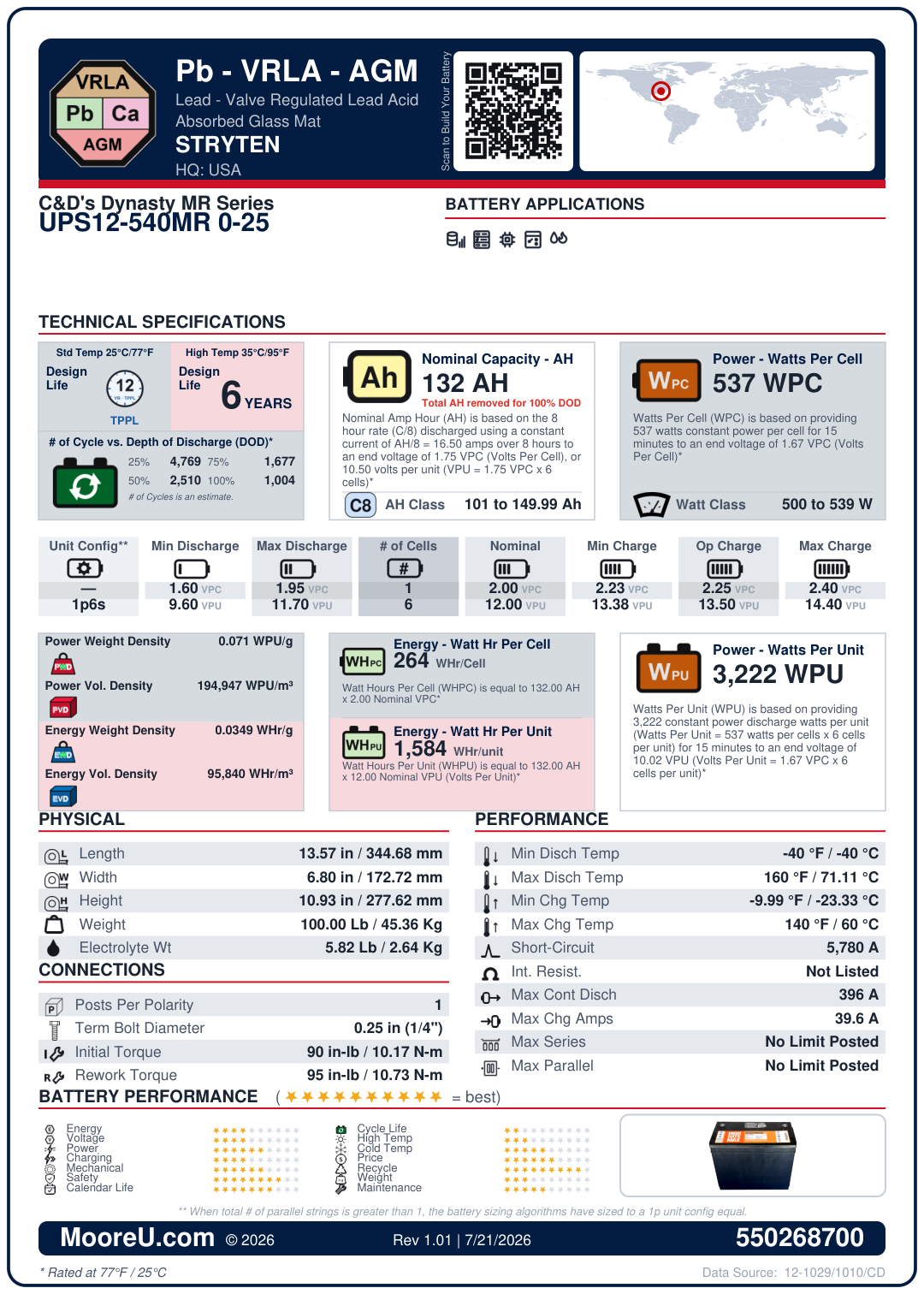

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	CDTechno Dynasty MR Series UPS12 540MR 0 25
Adjustment	1
AH Per String	132
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	2
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 71.111°C
Charge Temp Range	-23.33°C to 60°C
ISC Amps	5780
Internal Resistance	0.0011 Ohms
Dimensions (L x W x H)	13.57 x 6.8 x 10.93 in
Weight	100 lbs
Number of Posts	1
Terminal Bolt Diameter	0.25 in (0_25 mm)
Torque (Initial / Maintenance)	90 / 95 in-lbs
Container	V0
Terminal	Top 1/4 bolt
FOB	T
Max Continuous Discharge	396 Amps
Max Charge Amps	39.6 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	537
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	5.822673136 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
