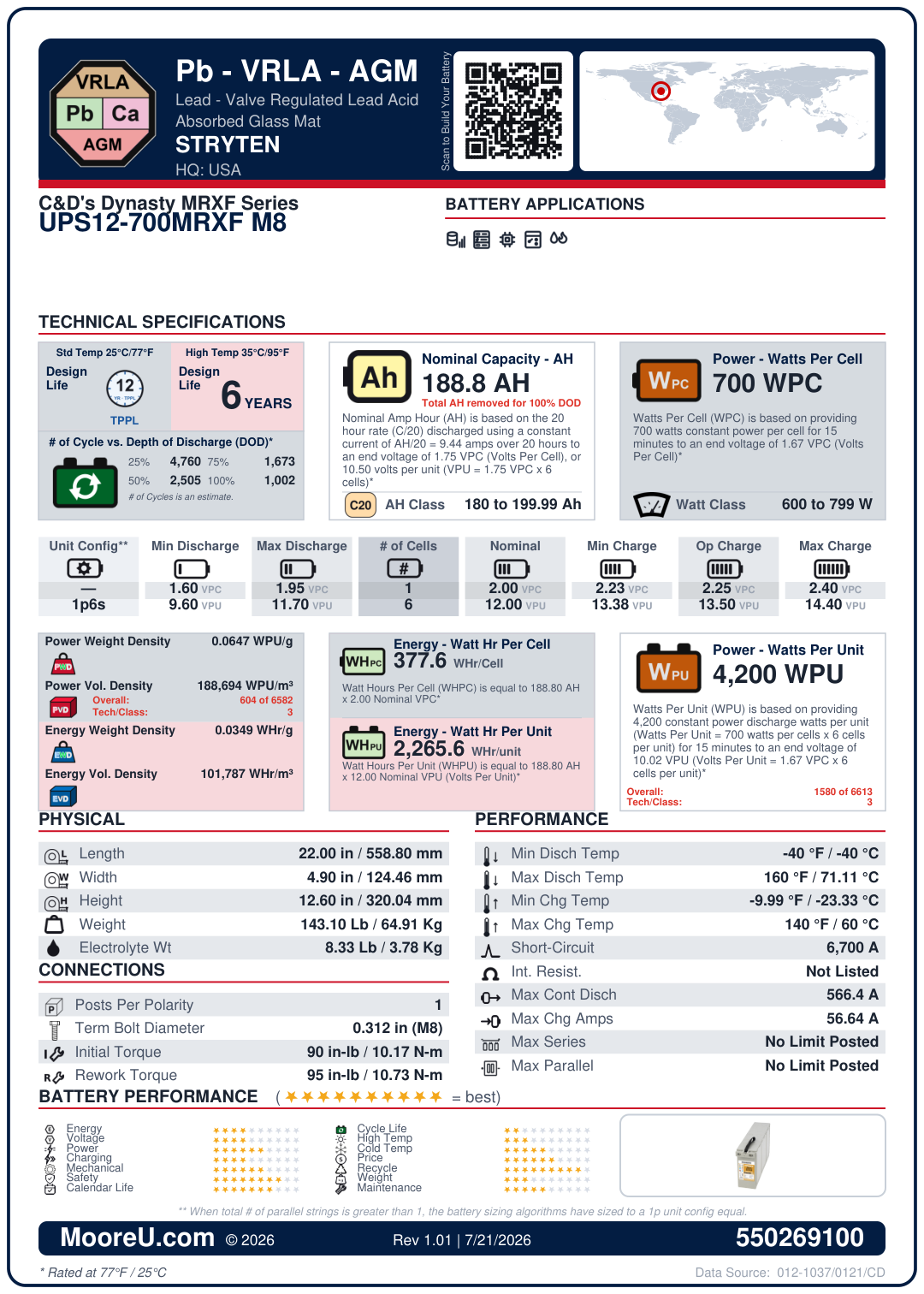

Furnish New Battery CDTechno Dynasty MRXF Series UPS12 700MRXF M8
Technology: Pb_Ca_VRLA_AGM.pngFurnish New Battery CDTechno Dynasty MRXF Series UPS12 700MRXF M8
$761.24
Build my Battery
Recycle My Battery
Furnish New Battery CDTechno Dynasty MRXF Series UPS12 700MRXF M8
| Battery Model | CDTechno Dynasty MRXF Series UPS12 700MRXF M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 188.8 |
| AH Per String Rating | 20 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 71.111°C |
| Charge Temp Range | -23.33°C to 60°C |
| ISC Amps | 6700 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 22 x 4.9 x 12.6 in |
| Weight | 143.1 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3125 in (M8 mm) |
| Torque (Initial / Maintenance) | 90 / 95 in-lbs |
| Container | V0 |
| Terminal | Front M8 bolt |
| FOB | T |
| Max Continuous Discharge | 566.4 Amps |
| Max Charge Amps | 56.64 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 700 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 8.328187031 lbs |
