Furnish New Battery CDTechno Dynasty MRXF Series UPS12 1000MRXF M8
Technology: Pb_Ca_VRLA_AGM.pngFurnish New Battery CDTechno Dynasty MRXF Series UPS12 1000MRXF M8
$958.00
Build my Battery
Recycle My Battery

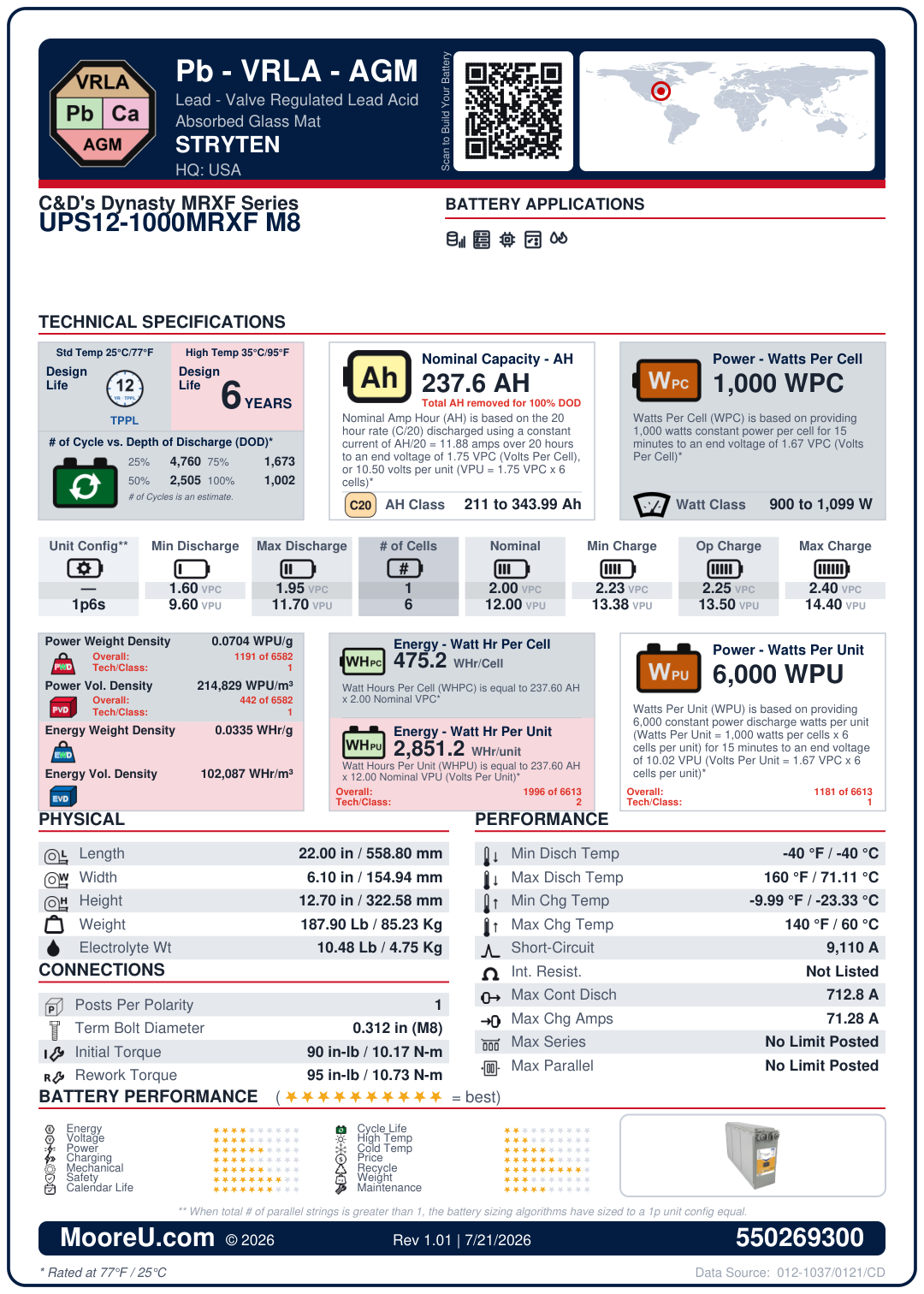

Furnish New Battery CDTechno Dynasty MRXF Series UPS12 1000MRXF M8
| Battery Model | CDTechno Dynasty MRXF Series UPS12 1000MRXF M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 237.6 |
| AH Per String Rating | 20 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 3 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 71.111°C |
| Charge Temp Range | -23.33°C to 60°C |
| ISC Amps | 9110 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 22 x 6.1 x 12.7 in |
| Weight | 187.9 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3125 in (M8 mm) |
| Torque (Initial / Maintenance) | 90 / 95 in-lbs |
| Container | V0 |
| Terminal | Front M8 bolt |
| FOB | T |
| Max Continuous Discharge | 712.8 Amps |
| Max Charge Amps | 71.28 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 1000 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 10.48081165 lbs |
