Furnish New Battery CDTechno XT Series XT4JC 09 0 188
Technology: Pb_Ca_VLA_Flooded_1250.pngFurnish New Battery CDTechno XT Series XT4JC 09 0 188
$725.76
Build my Battery
Recycle My Battery
Furnish New Battery CDTechno XT Series XT4JC 09 0 188

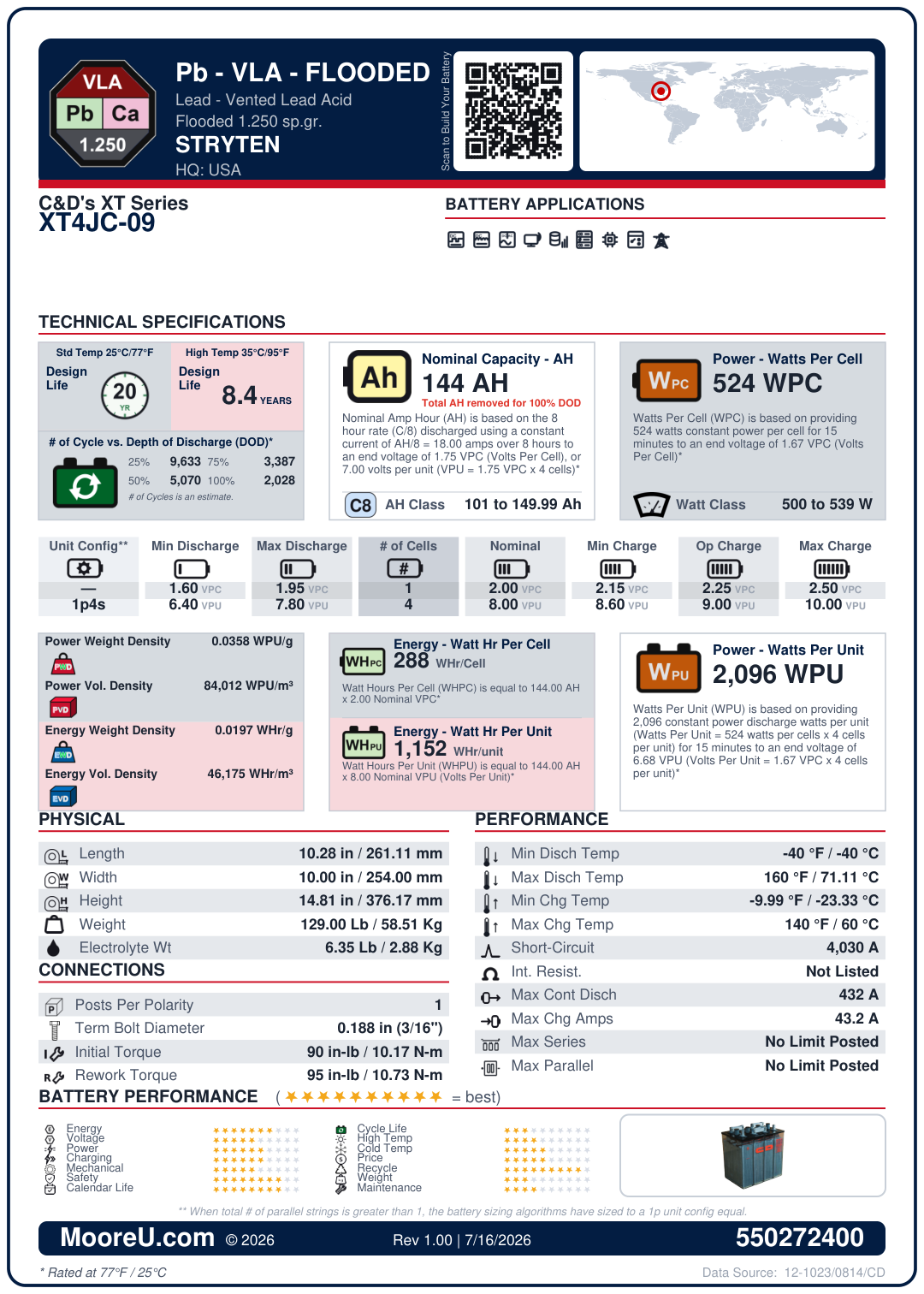

| Battery Model | CDTechno XT Series XT4JC 09 0 188 |
|---|---|
| Adjustment | 1 |
| AH Per String | 144 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 4 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.5 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 71.111°C |
| Charge Temp Range | -23.33°C to 60°C |
| ISC Amps | 4030 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 10.28 x 10 x 14.81 in |
| Weight | 129 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.188 in (0_18 mm) |
| Torque (Initial / Maintenance) | 90 / 95 in-lbs |
| Container | V0 |
| Terminal | Square Post P |
| FOB | T |
| Max Continuous Discharge | 432 Amps |
| Max Charge Amps | 43.2 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 524 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 6.352007058 lbs |
