Furnish New Battery CDTechno XT Series XT1LC 39 0 188

Technology: Pb_Ca_VLA_Flooded_1250.png
Furnish New Battery CDTechno XT Series XT1LC 39 0 188

$1,783.19

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery CDTechno XT Series XT1LC 39 0 188

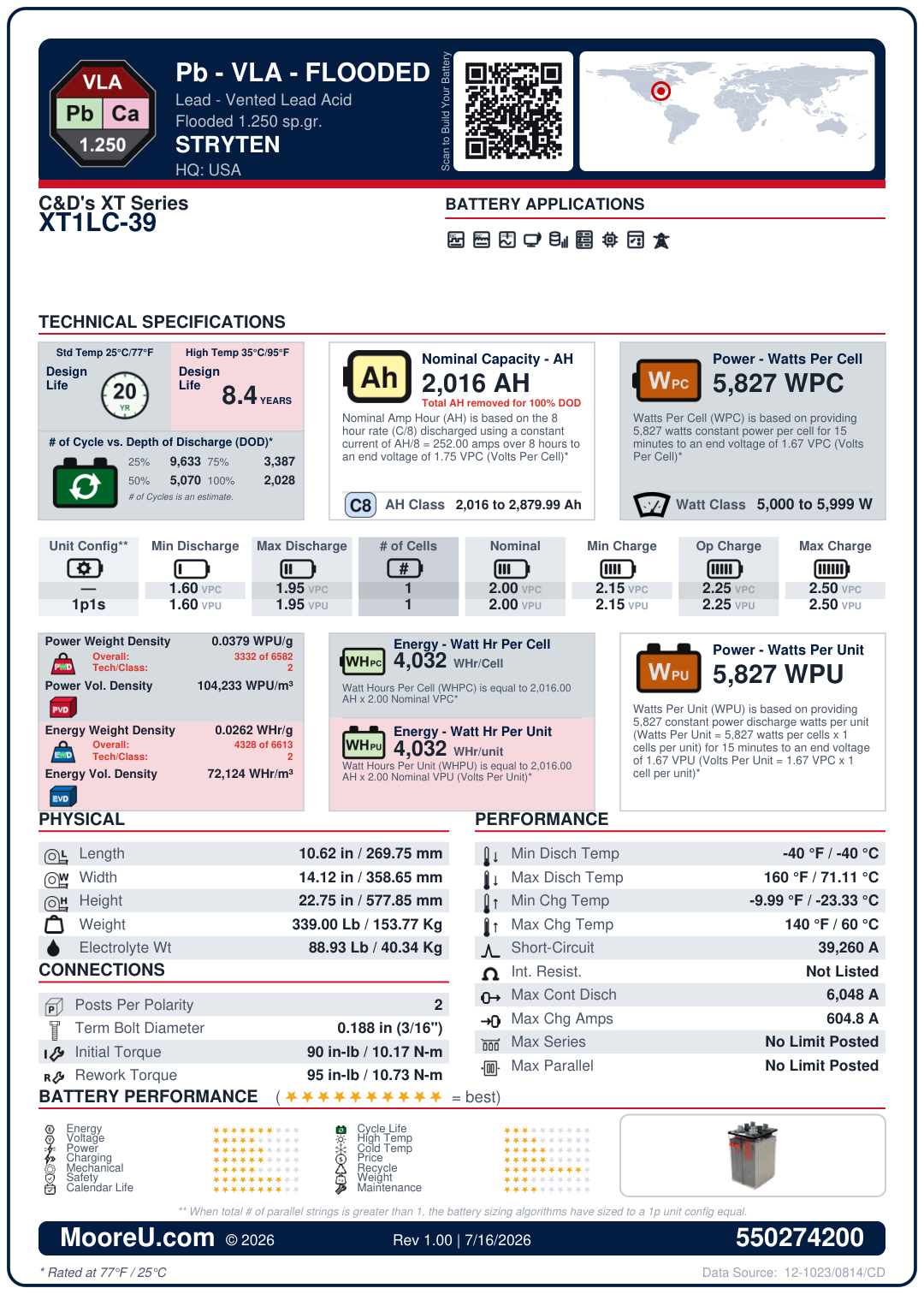

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	CDTechno XT Series XT1LC 39 0 188
Adjustment	1
AH Per String	2016
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	1
Nominal VPC	2
Model KWH	4
Charge VPC	2.5 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 71.111°C
Charge Temp Range	-23.33°C to 60°C
ISC Amps	39260
Internal Resistance	0.0011 Ohms
Dimensions (L x W x H)	10.62 x 14.12 x 22.75 in
Weight	339 lbs
Number of Posts	2
Terminal Bolt Diameter	0.188 in (0_18 mm)
Torque (Initial / Maintenance)	90 / 95 in-lbs
Container	V0
Terminal	Square Post P
FOB	T
Max Continuous Discharge	6048 Amps
Max Charge Amps	604.8 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	5827
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	88.92809881 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
Furnish New Battery Rack UA43 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 21.870 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA43 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 21.870 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA46 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 24.370 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA46 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 24.370 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA46 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 24.370 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA46 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 24.370 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA46 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 24.370 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA46 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 24.370 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA47 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 37.620 x 33.54 in	3 units Quantity
Furnish New Battery Rack UA47 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 37.620 x 33.54 in	3 units Quantity
Furnish New Battery Rack UA47 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 37.620 x 33.54 in	3 units Quantity
Furnish New Battery Rack UA47 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 37.620 x 33.54 in	3 units Quantity
Furnish New Battery Rack UA47 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 37.620 x 33.54 in	3 units Quantity
Furnish New Battery Rack UA47 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 37.620 x 33.54 in	3 units Quantity
Furnish New Battery Rack UA48 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 31.620 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA48 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 31.620 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA48 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 31.620 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA48 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 31.620 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA48 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 31.620 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA48 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 31.620 x 33.54 in	2 units Quantity
Furnish New Battery Rack N741 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 12.000 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N741 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 12.000 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N741 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 12.000 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N741 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 12.000 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N741 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 12.000 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N741 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 12.000 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 17.620 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 17.620 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 17.620 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 17.620 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 17.620 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 17.620 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 17.620 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N743 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 17.620 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N743 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 17.620 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N743 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 17.620 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N743 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 17.620 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N743 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 17.620 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N743 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 17.620 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N746 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 24.370 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N746 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 24.370 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N746 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 24.370 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N746 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 24.370 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N746 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 24.370 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N746 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 24.370 x 33.54 in	2 units Unavailable
Furnish New Battery Rack U441 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 12.000 x 33.54 in	1 units Quantity
Furnish New Battery Rack U441 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 12.000 x 33.54 in	1 units Quantity
Furnish New Battery Rack U441 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 12.000 x 33.54 in	1 units Quantity
Furnish New Battery Rack U441 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 12.000 x 33.54 in	1 units Quantity
Furnish New Battery Rack U441 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 12.000 x 33.54 in	1 units Quantity
Furnish New Battery Rack U441 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 12.000 x 33.54 in	1 units Quantity
Furnish New Battery Rack N747 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 37.620 x 33.54 in	3 units Unavailable
Furnish New Battery Rack N747 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 37.620 x 33.54 in	3 units Unavailable
Furnish New Battery Rack N747 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 37.620 x 33.54 in	3 units Unavailable
Furnish New Battery Rack N747 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 37.620 x 33.54 in	3 units Unavailable
Furnish New Battery Rack N747 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 37.620 x 33.54 in	3 units Unavailable
Furnish New Battery Rack N747 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 37.620 x 33.54 in	3 units Unavailable
Furnish New Battery Rack UA42 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 17.620 x 33.54 in	1 units Quantity
Furnish New Battery Rack UA42 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 17.620 x 33.54 in	1 units Quantity
Furnish New Battery Rack UA42 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 17.620 x 33.54 in	1 units Quantity
Furnish New Battery Rack UA42 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 17.620 x 33.54 in	1 units Quantity
Furnish New Battery Rack UA42 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 17.620 x 33.54 in	1 units Quantity
Furnish New Battery Rack UA42 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 17.620 x 33.54 in	1 units Quantity
Furnish New Battery Rack N748 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 31.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N748 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 31.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N748 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 31.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N748 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 31.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N748 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 31.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N748 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 31.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack UA43 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 21.870 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA43 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 21.870 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA43 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 21.870 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA43 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 21.870 x 33.54 in	2 units Quantity
