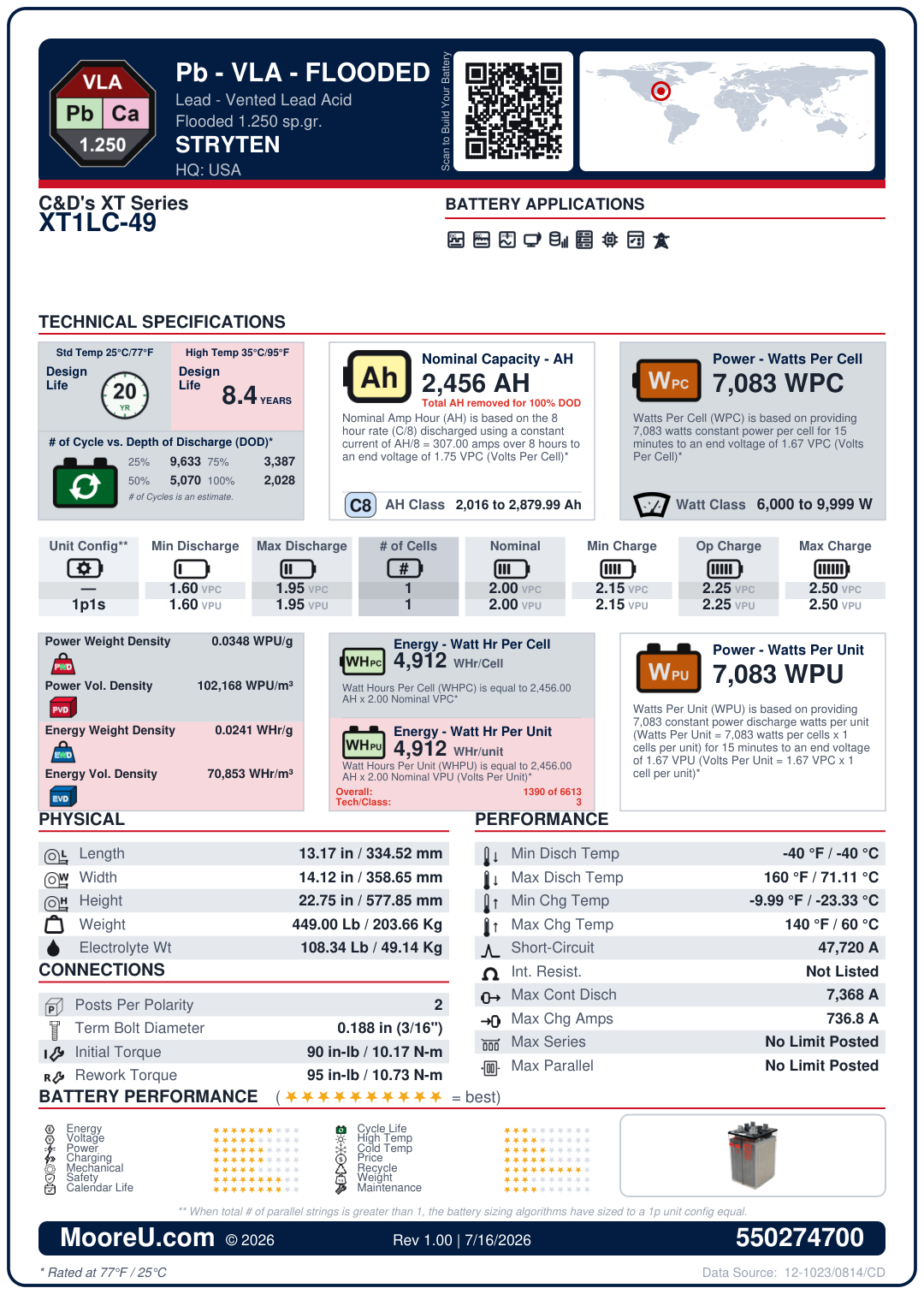

Furnish New Battery CDTechno XT Series XT1LC 49 0 188
Technology: Pb_Ca_VLA_Flooded_1250.pngFurnish New Battery CDTechno XT Series XT1LC 49 0 188
$2,172.38
Build my Battery
Recycle My Battery
Furnish New Battery CDTechno XT Series XT1LC 49 0 188
| Battery Model | CDTechno XT Series XT1LC 49 0 188 |
|---|---|
| Adjustment | 1 |
| AH Per String | 2456 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 5 |
| Charge VPC | 2.5 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 71.111°C |
| Charge Temp Range | -23.33°C to 60°C |
| ISC Amps | 47720 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 13.17 x 14.12 x 22.75 in |
| Weight | 449 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.188 in (0_18 mm) |
| Torque (Initial / Maintenance) | 90 / 95 in-lbs |
| Container | V0 |
| Terminal | Square Post P |
| FOB | T |
| Max Continuous Discharge | 7368 Amps |
| Max Charge Amps | 736.8 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 7083 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 108.3370093 lbs |
