Furnish New Battery CDTechno XT Series 4XTHCP 13 0 188

Technology: Pb_Ca_VLA_Flooded_1250.png
Furnish New Battery CDTechno XT Series 4XTHCP 13 0 188

$2,932.07

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery CDTechno XT Series 4XTHCP 13 0 188

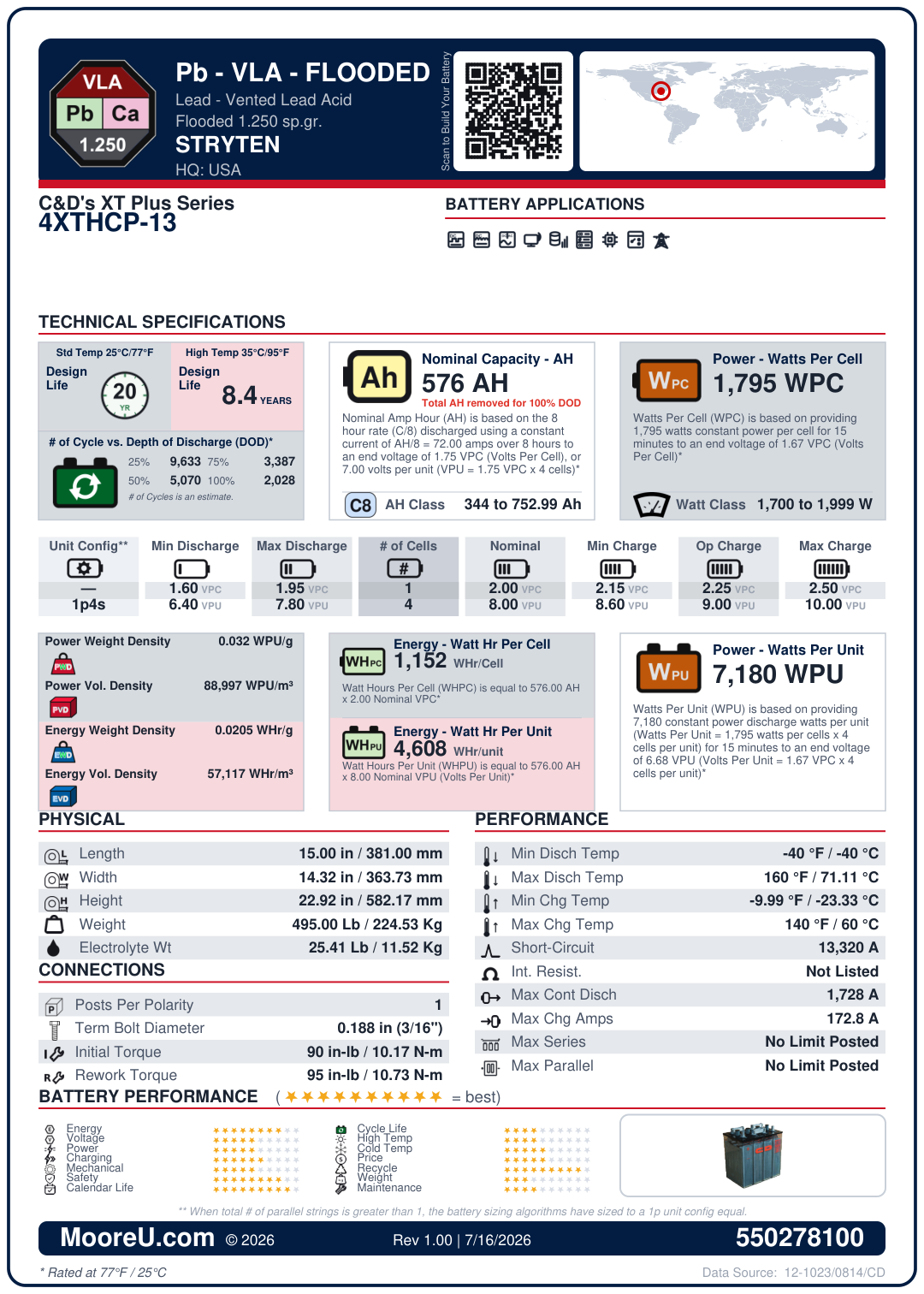

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	CDTechno XT Series 4XTHCP 13 0 188
Adjustment	1
AH Per String	576
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	4
Nominal VPC	2
Model KWH	5
Charge VPC	2.5 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 71.111°C
Charge Temp Range	-23.33°C to 60°C
ISC Amps	13320
Internal Resistance	0.0011 Ohms
Dimensions (L x W x H)	15 x 14.32 x 22.92 in
Weight	495 lbs
Number of Posts	1
Terminal Bolt Diameter	0.188 in (0_18 mm)
Torque (Initial / Maintenance)	90 / 95 in-lbs
Container	V0
Terminal	Square Post P
FOB	T
Max Continuous Discharge	1728 Amps
Max Charge Amps	172.8 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	1795
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	25.40802823 lbs
