Furnish New Battery CSB XPL Series XP6700 M6
Technology: Pb_Ca_VRLA_AGM.pngFurnish New Battery CSB XPL Series XP6700 M6
$508.60
Build my Battery
Recycle My Battery
Furnish New Battery CSB XPL Series XP6700 M6

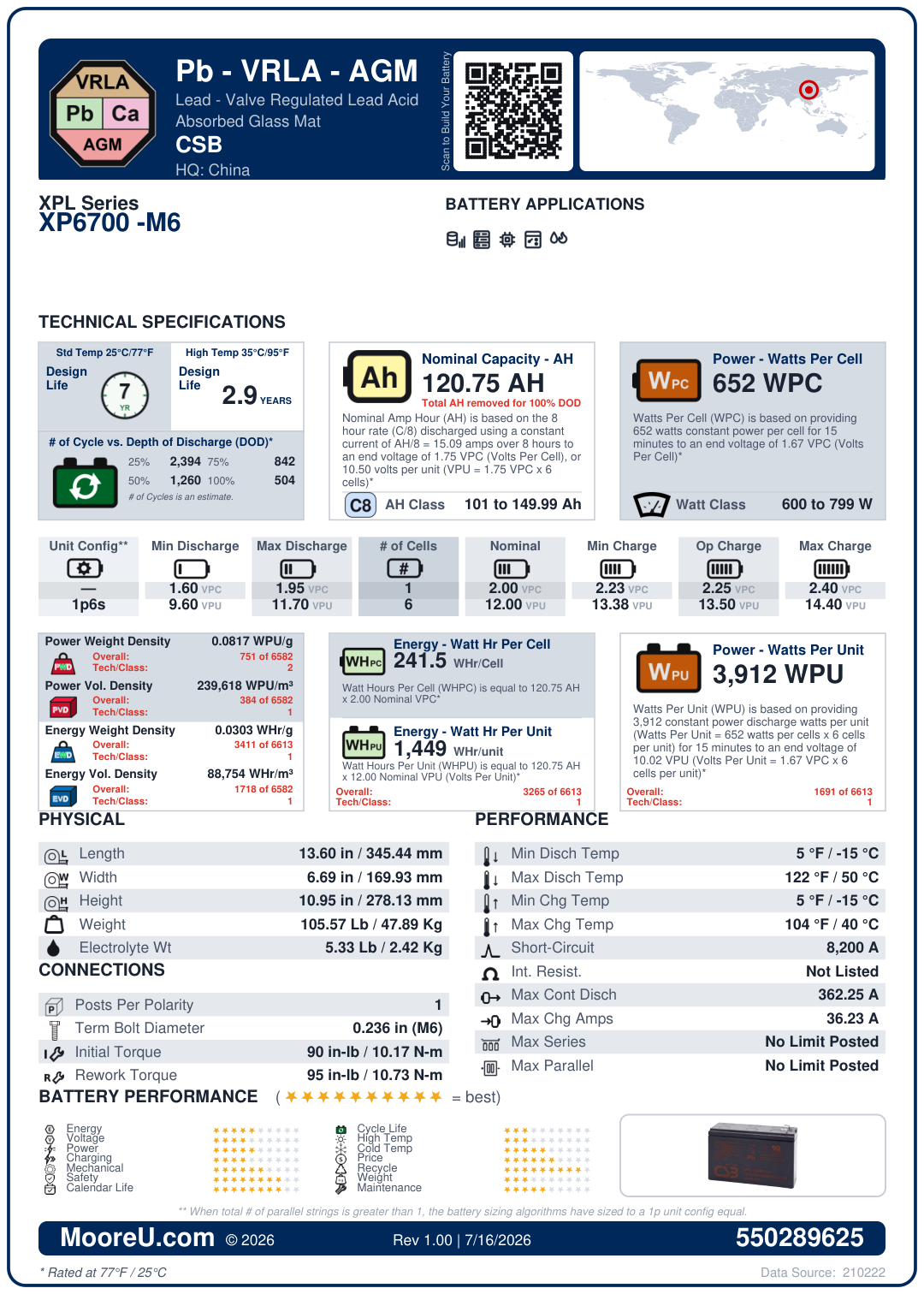

| Battery Model | CSB XPL Series XP6700 M6 |
|---|---|
| Adjustment | 1 |
| AH Per String | 120.75 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.94 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -15°C to 50°C |
| Charge Temp Range | -15°C to 40°C |
| ISC Amps | 8200 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 13.6 x 6.87 x 10.95 in |
| Weight | 105.57 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 90 / 95 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 362.25 Amps |
| Max Charge Amps | 36.225 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 652 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 5.326422585 lbs |
