Furnish New Battery GS Yuasa PWL Series PWL12V115FT M8

Technology: Pb_VRLA_AGM_500.png
Furnish New Battery GS Yuasa PWL Series PWL12V115FT M8

$533.74

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery GS Yuasa PWL Series PWL12V115FT M8

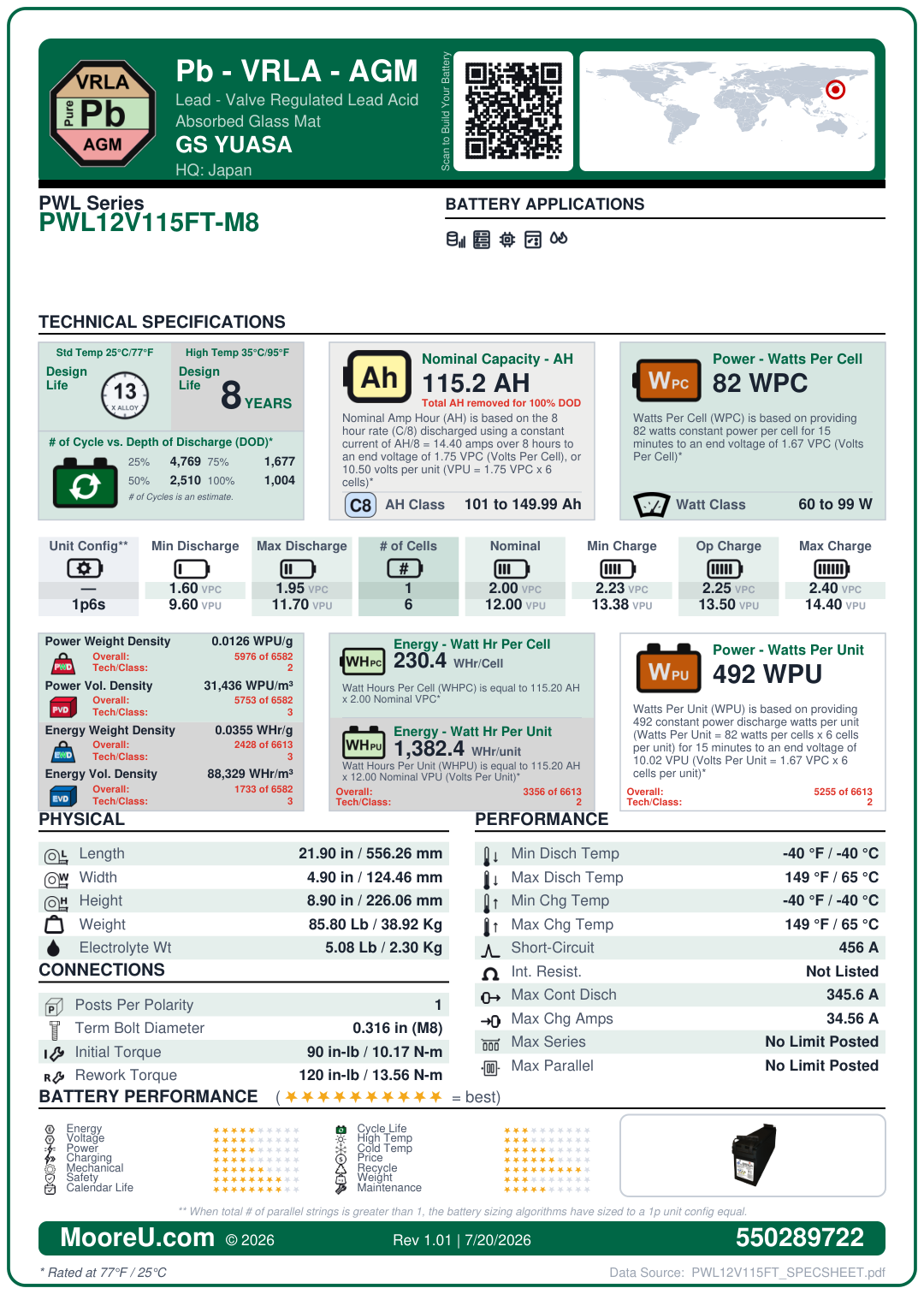

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	GS Yuasa PWL Series PWL12V115FT M8
Adjustment	1
AH Per String	115.2
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 65°C
Charge Temp Range	-40°C to 65°C
ISC Amps	456
Internal Resistance	0.0011 Ohms
Dimensions (L x W x H)	21.9 x 4.9 x 8.9 in
Weight	85.8 lbs
Number of Posts	1
Terminal Bolt Diameter	0.316 in (M8 mm)
Torque (Initial / Maintenance)	90 / 120 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	345.6 Amps
Max Charge Amps	34.56 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	82
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	5.081605646 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
