Furnish New Battery Narada Acme F Series 12NDF85 M6

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Narada Acme F Series 12NDF85 M6

$309.55

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Narada Acme F Series 12NDF85 M6

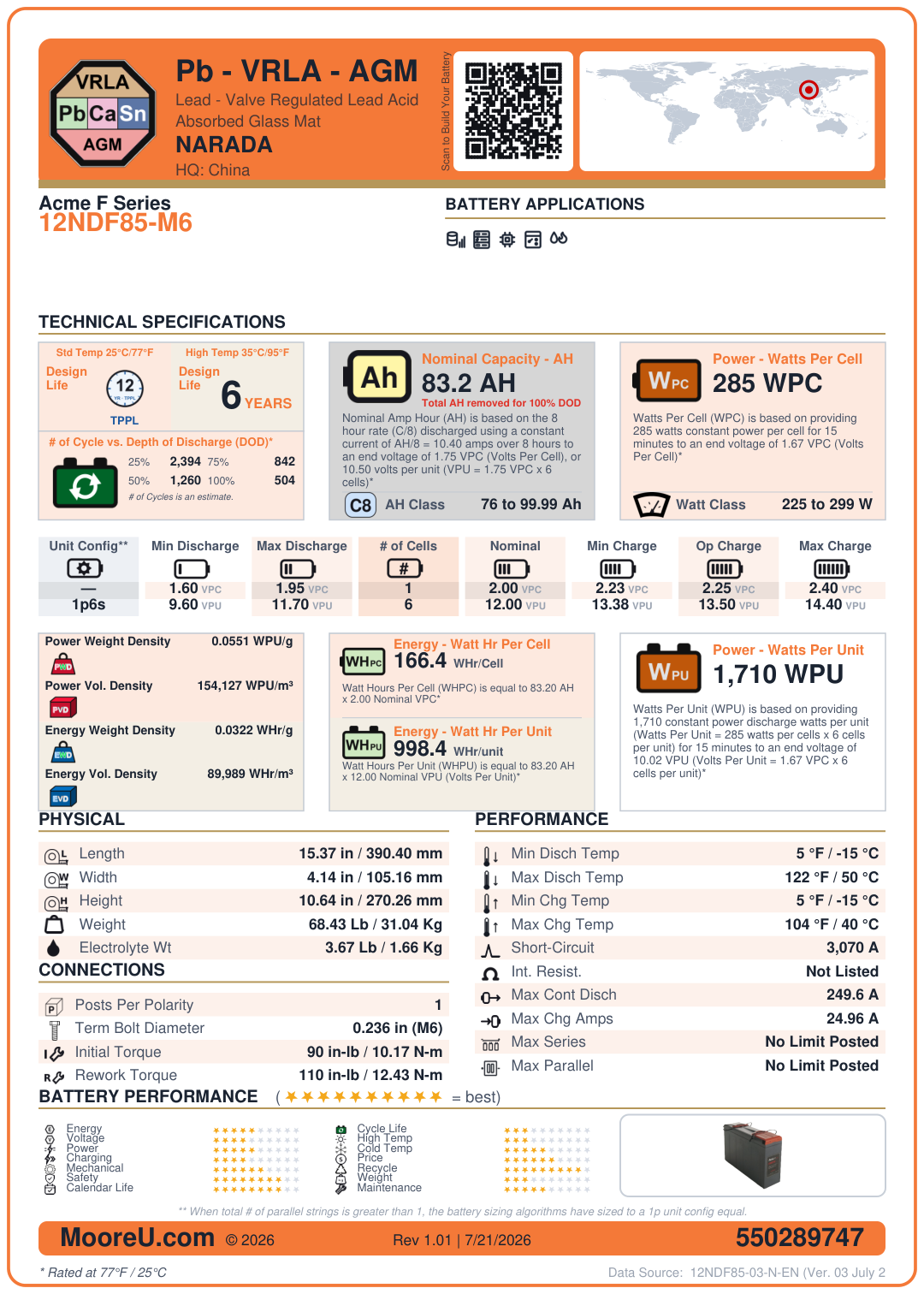

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Narada Acme F Series 12NDF85 M6
Adjustment	1
AH Per String	83.2
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-15°C to 50°C
Charge Temp Range	-15°C to 40°C
ISC Amps	3070
Internal Resistance	0.0011 Ohms
Dimensions (L x W x H)	15.37 x 4.14 x 7.88 in
Weight	68.43 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	90 / 110 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	249.6 Amps
Max Charge Amps	24.96 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	285
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	3.670048522 lbs
