Furnish New Battery Enersys PowerSafe SBS Series SBSB14F M6

Technology: Pb_Sn_VRLA_AGM.png
Furnish New Battery Enersys PowerSafe SBS Series SBSB14F M6

$289.11

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

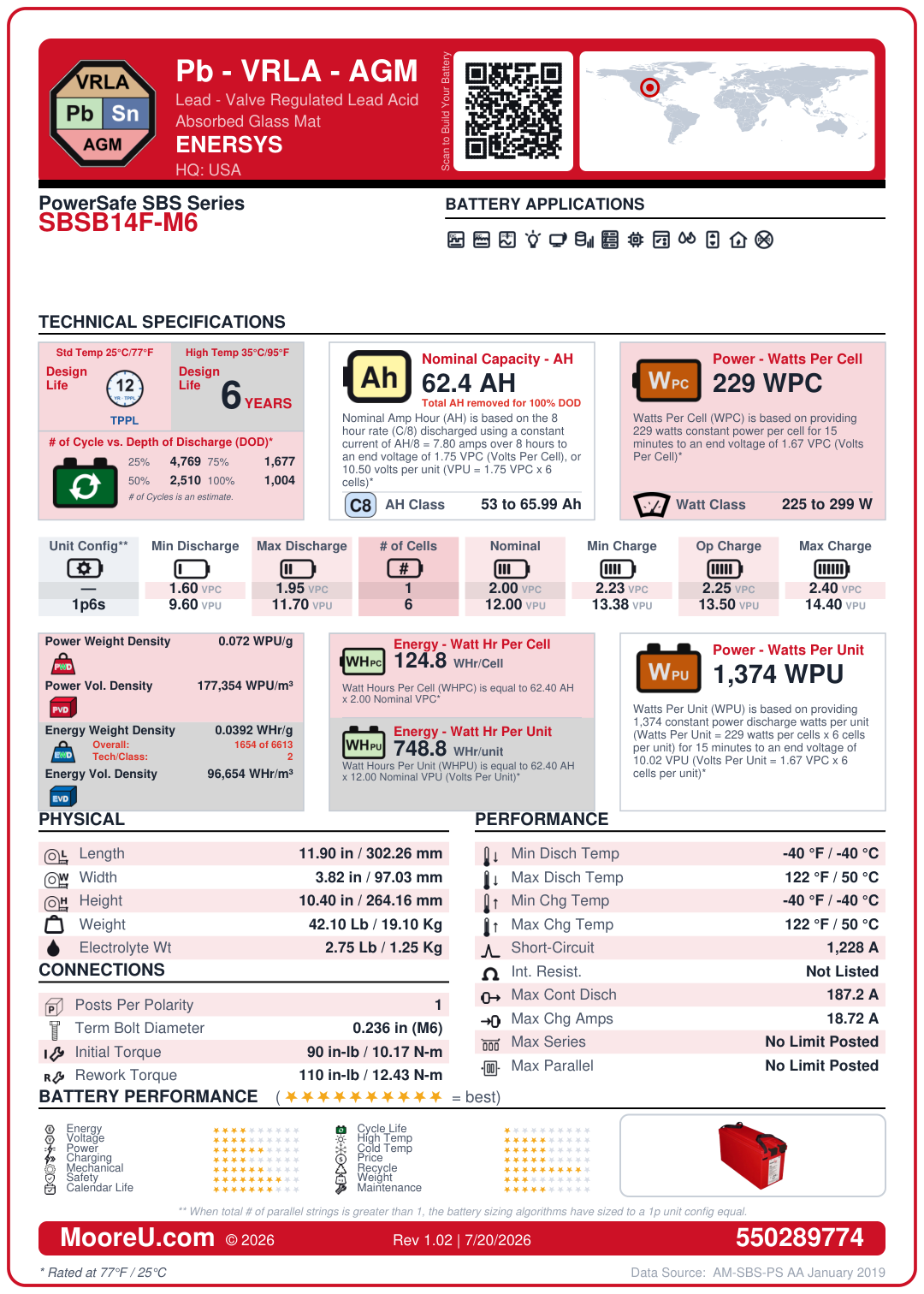

Furnish New Battery Enersys PowerSafe SBS Series SBSB14F M6

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Enersys PowerSafe SBS Series SBSB14F M6
Adjustment	1
AH Per String	62.4
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 50°C
Charge Temp Range	-40°C to 50°C
ISC Amps	1228
Internal Resistance	0.0011 Ohms
Dimensions (L x W x H)	11.9 x 3.82 x 10.4 in
Weight	42.1 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	90 / 110 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	187.2 Amps
Max Charge Amps	18.72 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	229
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	2.752536392 lbs
