Furnish New Battery Enersys PowerSafe SBS Series SBS400 M10

Technology: Pb_Sn_VRLA_AGM.png
Furnish New Battery Enersys PowerSafe SBS Series SBS400 M10

$310.12

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Enersys PowerSafe SBS Series SBS400 M10

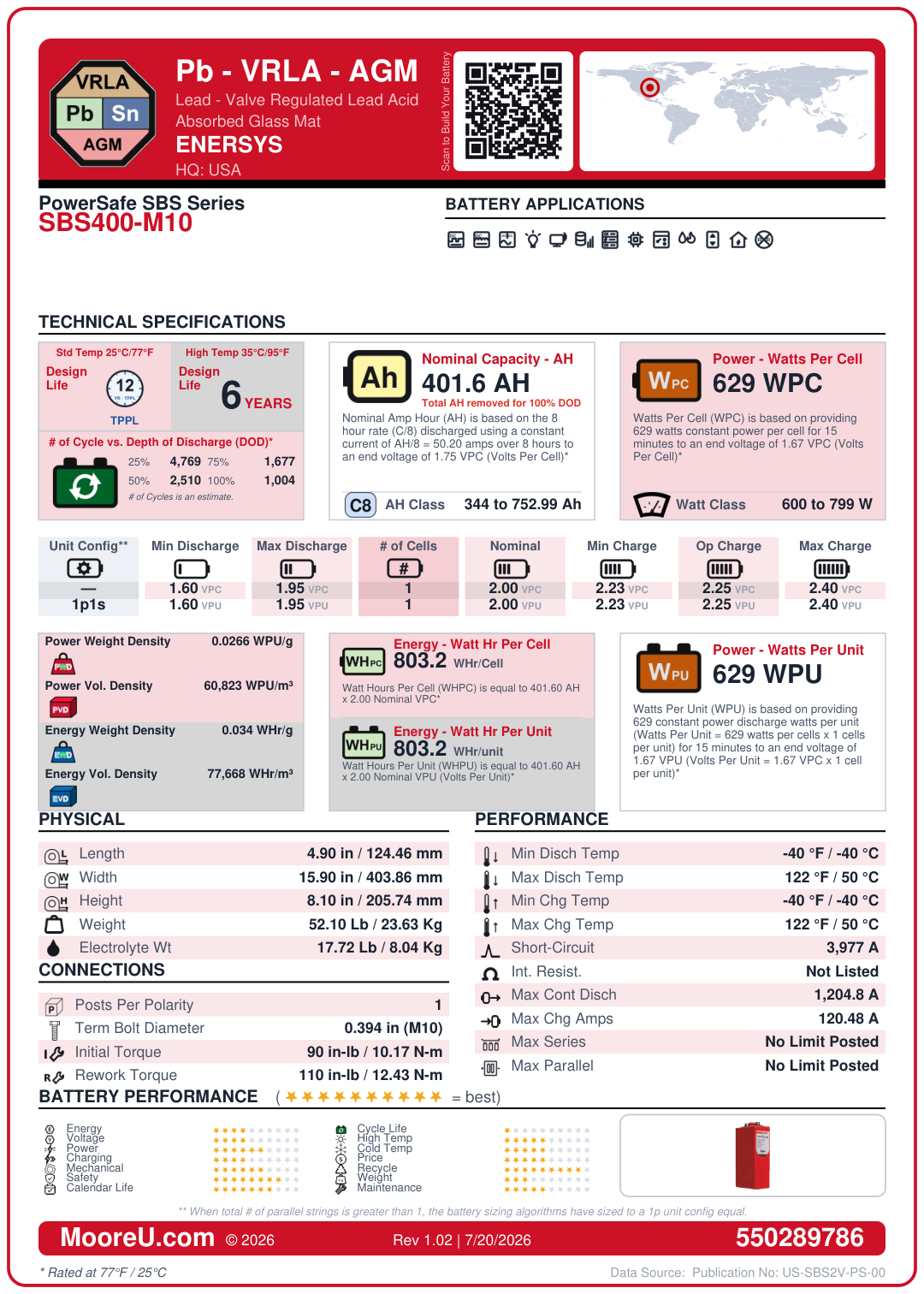

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Enersys PowerSafe SBS Series SBS400 M10
Adjustment	1
AH Per String	401.6
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	1
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 50°C
Charge Temp Range	-40°C to 50°C
ISC Amps	3977
Internal Resistance	0.0011 Ohms
Dimensions (L x W x H)	4.9 x 15.9 x 8.1 in
Weight	52.1 lbs
Number of Posts	1
Terminal Bolt Diameter	0.393701 in (M10 mm)
Torque (Initial / Maintenance)	90 / 110 in-lbs
Container	V0
Terminal	M10
FOB	T
Max Continuous Discharge	1204.8 Amps
Max Charge Amps	120.48 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	629
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	17.71504191 lbs
