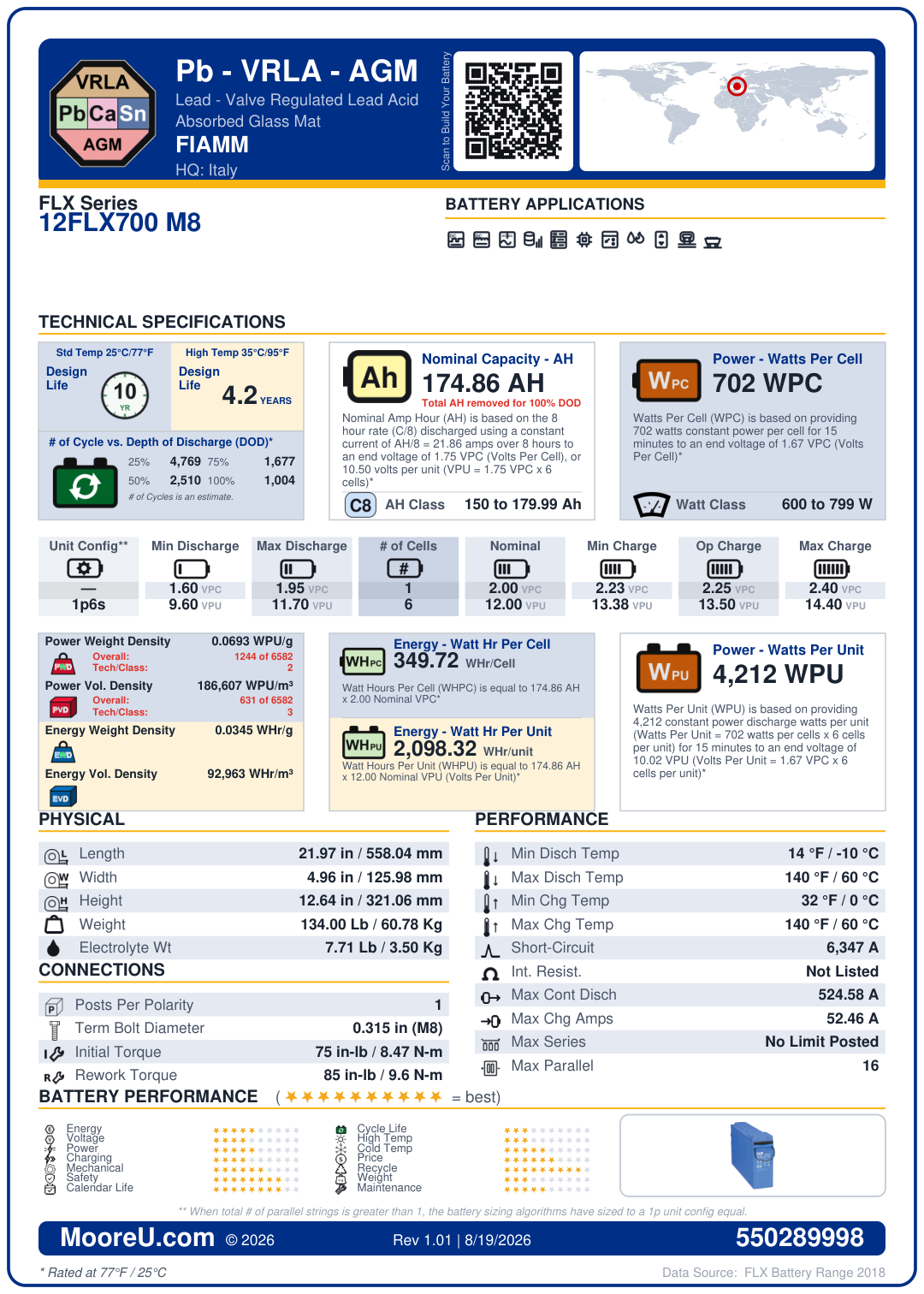

Furnish New Battery Fiamm FLX Series 12FLX700 M8
Technology: Pb_Ca_Sn_VRLA_AGM.pngFurnish New Battery Fiamm FLX Series 12FLX700 M8
$707.05
Build my Battery
Recycle My Battery
Furnish New Battery Fiamm FLX Series 12FLX700 M8
| Battery Model | Fiamm FLX Series 12FLX700 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 174.86 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.92 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -10°C to 60°C |
| Charge Temp Range | 0°C to 60°C |
| ISC Amps | 6347 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 21.97 x 4.96 x 12.64 in |
| Weight | 134 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 75 / 85 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 524.58 Amps |
| Max Charge Amps | 52.458 Amps |
| Max In Series / Parallel | 0 / 16 |
| Watts Per Cell (15min 1.67) | 702 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 7.713277459 lbs |
