Furnish New Battery Ritar OPzV Series OPzV12 0060 V0 F10 T

Technology: Pb_Ca_Sn_VRLA_GEL.png
Furnish New Battery Ritar OPzV Series OPzV12 0060 V0 F10 T

$491.29

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Ritar OPzV Series OPzV12 0060 V0 F10 T

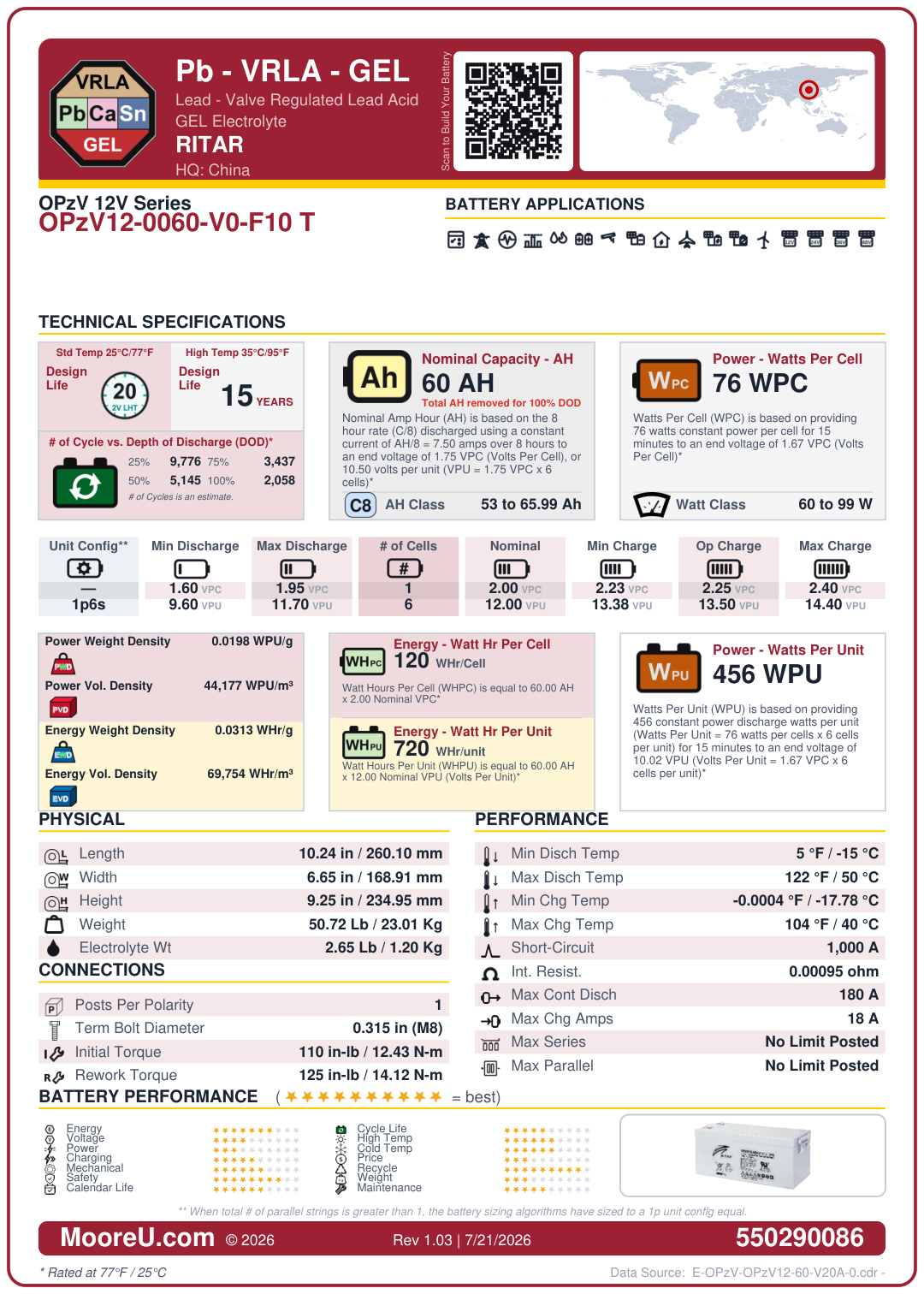

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar OPzV Series OPzV12 0060 V0 F10 T
Adjustment	0.02
AH Per String	60
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-15°C to 50°C
Charge Temp Range	-17.778°C to 40°C
ISC Amps	1000
Internal Resistance	0.00095 Ohms
Dimensions (L x W x H)	10.24 x 6.65 x 9.25 in
Weight	50.72 lbs
Number of Posts	1
Terminal Bolt Diameter	0.3149 in (M8 mm)
Torque (Initial / Maintenance)	110 / 125 in-lbs
Container	V0
Terminal	F10
FOB	T
Max Continuous Discharge	180 Amps
Max Charge Amps	18 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	76
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	2.646669607 lbs
