Furnish New Battery Valence XP Series UEV 18XP M8

Technology: Li_LFP.png
Furnish New Battery Valence XP Series UEV 18XP M8

$2,216.52

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Valence XP Series UEV 18XP M8

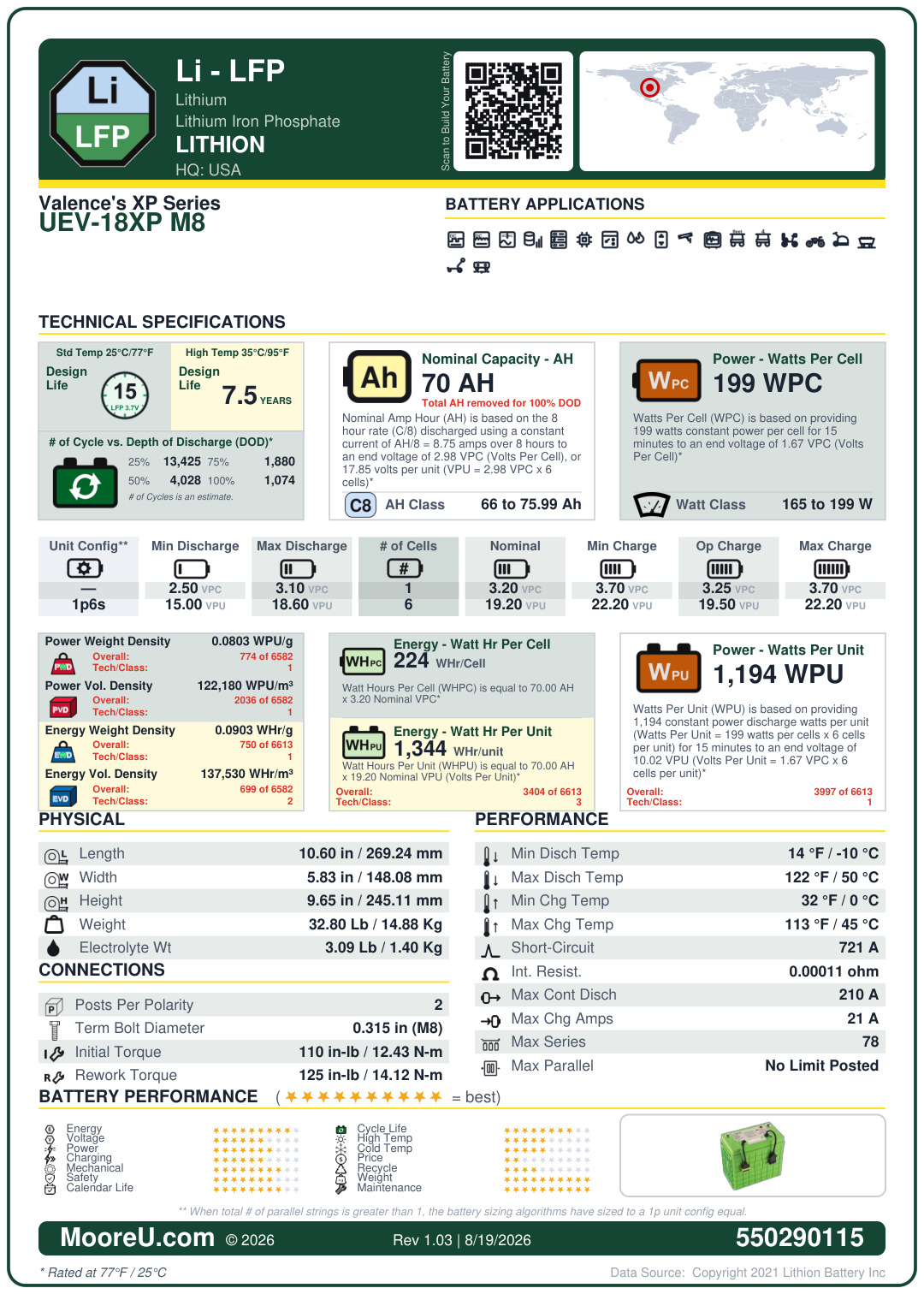

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Valence XP Series UEV 18XP M8
Adjustment	1
AH Per String	70
AH Per String Rating	8 hr @ 2.975 VPC
Cells Per Unit	6
Nominal VPC	3.1
Model KWH	1
Charge VPC	3.9 (Min: 2.8, Max: 3.9)
Discharge VPC	Min: 2.7, Max: 3.25
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-10°C to 50°C
Charge Temp Range	0°C to 45°C
ISC Amps	721
Internal Resistance	0.00011 Ohms
Dimensions (L x W x H)	10.6 x 5.83 x 9.65 in
Weight	32.8 lbs
Number of Posts	2
Terminal Bolt Diameter	0.3149 in (M8 mm)
Torque (Initial / Maintenance)	110 / 125 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	210 Amps
Max Charge Amps	21 Amps
Max In Series / Parallel	78 / 0
Watts Per Cell (15min 1.67)	199
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	3.087781209 lbs
