Furnish New Battery CdTechno PLP Series UPS12 705PLPF M8
Technology: Pb_VRLA_AGM_500.pngFurnish New Battery CdTechno PLP Series UPS12 705PLPF M8
$704.80
Build my Battery
Recycle My Battery

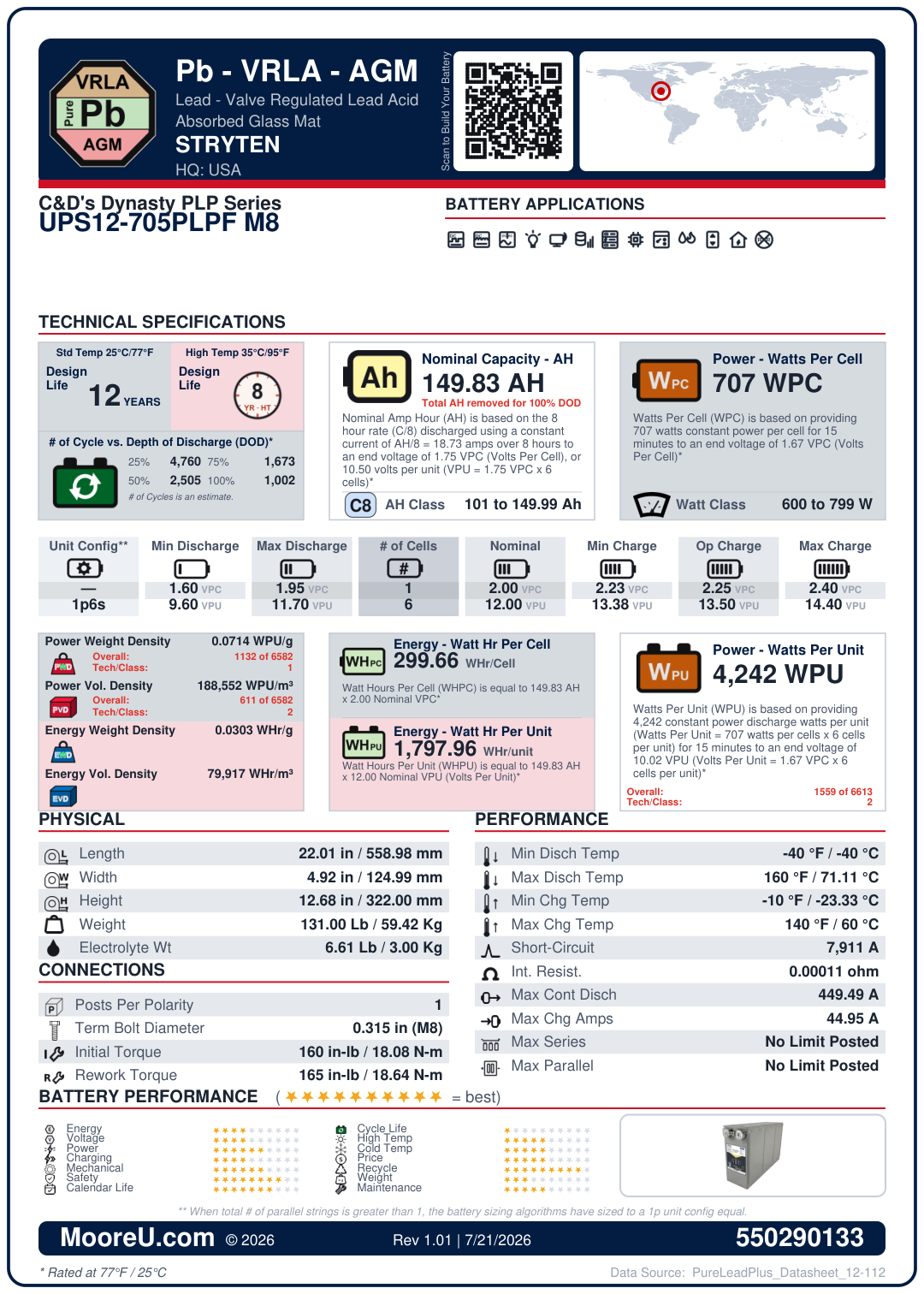

Furnish New Battery CdTechno PLP Series UPS12 705PLPF M8
| Battery Model | CdTechno PLP Series UPS12 705PLPF M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 149.83 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.5, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 71.111°C |
| Charge Temp Range | -23.333°C to 60°C |
| ISC Amps | 7911 |
| Internal Resistance | 0.00011 Ohms |
| Dimensions (L x W x H) | 22.007 x 4.921 x 12.6772 in |
| Weight | 131 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 160 / 165 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 449.49 Amps |
| Max Charge Amps | 44.949 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 707 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 6.609175121 lbs |
