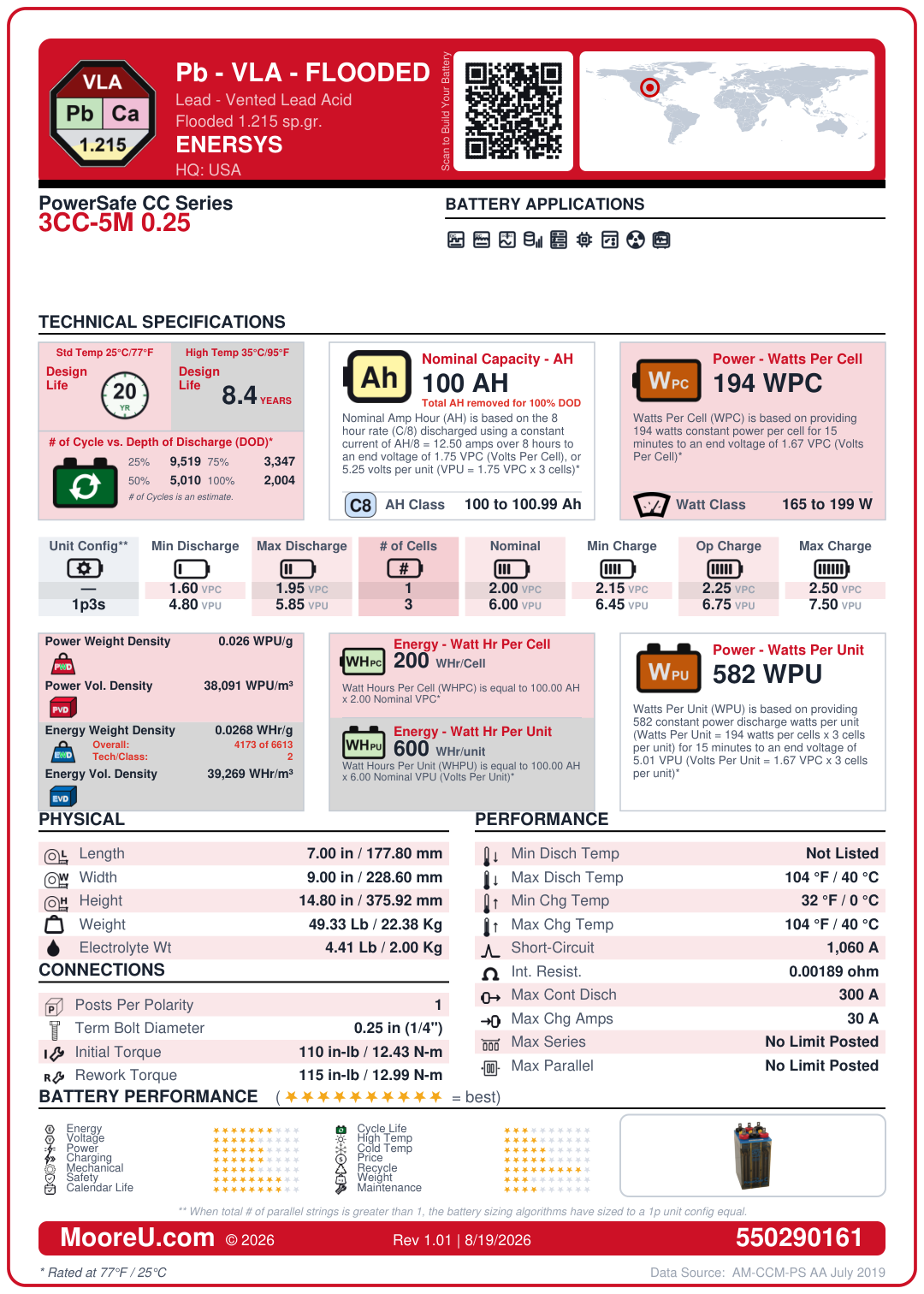

Furnish New Battery Enersys PowerSafe CC Series 3CC 5M 0 25
Technology: Pb_Ca_VLA_Flooded.pngFurnish New Battery Enersys PowerSafe CC Series 3CC 5M 0 25
$710.64
Build my Battery
Recycle My Battery
Furnish New Battery Enersys PowerSafe CC Series 3CC 5M 0 25
| Battery Model | Enersys PowerSafe CC Series 3CC 5M 0 25 |
|---|---|
| Adjustment | 1 |
| AH Per String | 100 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 3 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | 0°C to 40°C |
| Charge Temp Range | 0°C to 40°C |
| ISC Amps | 1060 |
| Internal Resistance | 0.001895 Ohms |
| Dimensions (L x W x H) | 7 x 9 x 14.8 in |
| Weight | 49.33 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.25 in (0_25 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | 0_25 |
| FOB | T |
| Max Continuous Discharge | 300 Amps |
| Max Charge Amps | 30 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 194 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 4.411116012 lbs |
