Furnish New Battery Northstar HT Red Series NSB60FT M8

Technology: Pb_Sn_VRLA_AGM.png
Furnish New Battery Northstar HT Red Series NSB60FT M8

$231.24

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Northstar HT Red Series NSB60FT M8

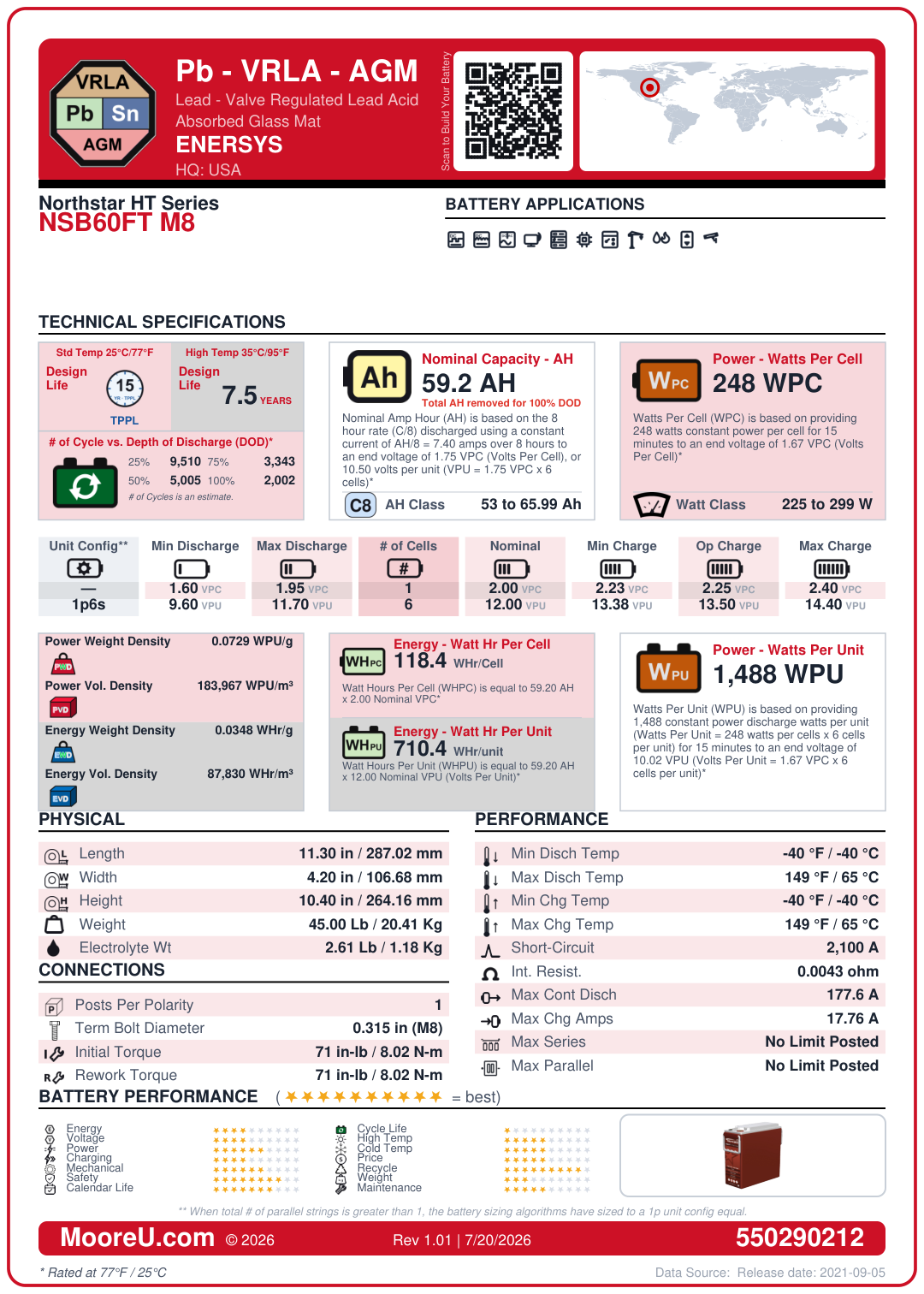

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Northstar HT Red Series NSB60FT M8
Adjustment	1
AH Per String	59.2
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.5, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 65°C
Charge Temp Range	-40°C to 65°C
ISC Amps	2100
Internal Resistance	0.0043 Ohms
Dimensions (L x W x H)	11.3 x 4.2 x 10.4 in
Weight	45 lbs
Number of Posts	1
Terminal Bolt Diameter	0.315 in (M8 mm)
Torque (Initial / Maintenance)	71 / 71 in-lbs
Container	V0
Terminal	0_315
FOB	T
Max Continuous Discharge	177.6 Amps
Max Charge Amps	17.76 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	248
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	2.611380679 lbs
