Furnish New Battery Exide GNB Classic Series NAT 19 0 188
Technology: Pb_Ca_Sn_VLA_1215_107.pngFurnish New Battery Exide GNB Classic Series NAT 19 0 188
$1,800.29
Build my Battery
Recycle My Battery

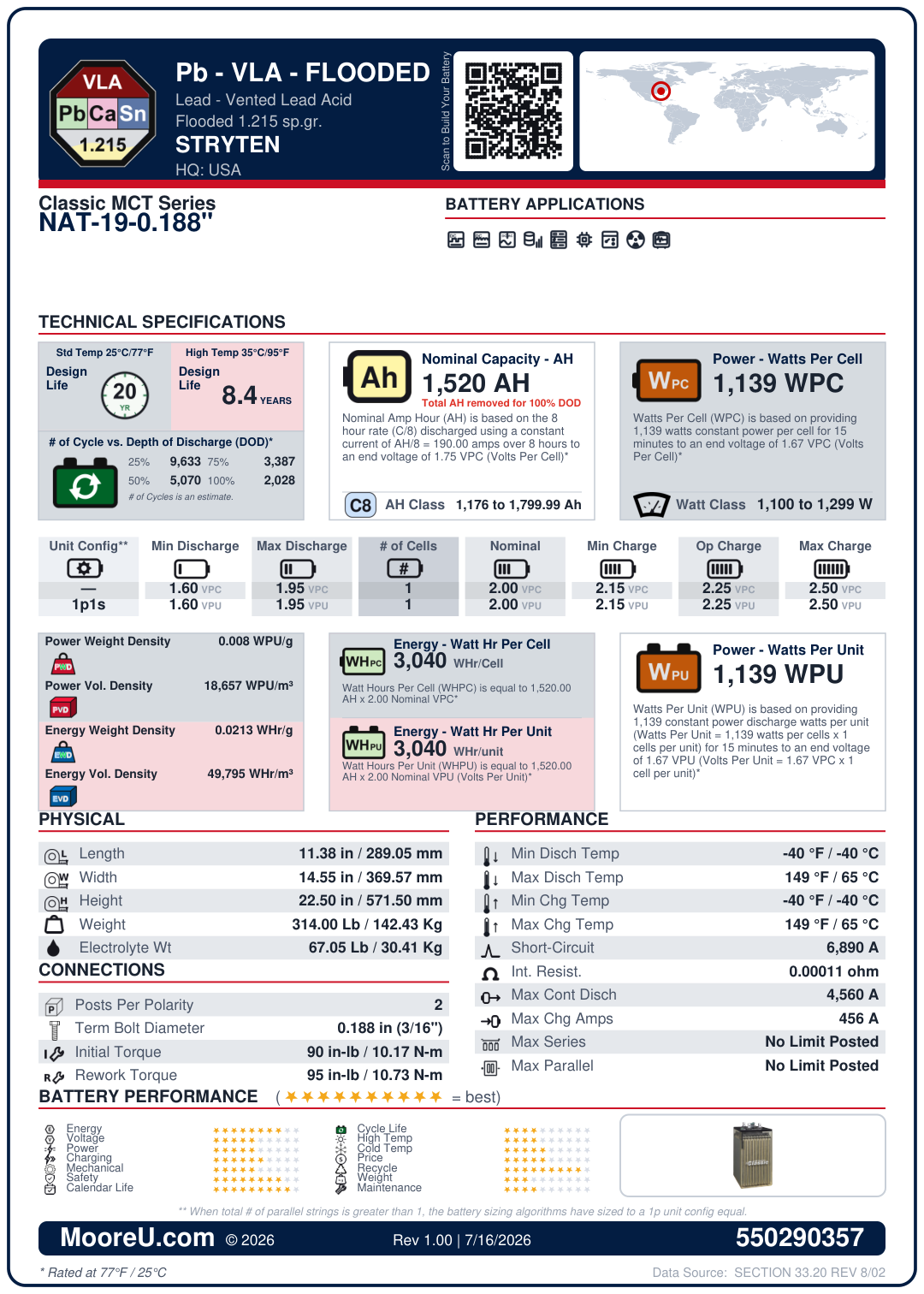

Furnish New Battery Exide GNB Classic Series NAT 19 0 188
| Battery Model | Exide GNB Classic Series NAT 19 0 188 |
|---|---|
| Adjustment | 1 |
| AH Per String | 1520 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 3 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.92 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 65°C |
| Charge Temp Range | -40°C to 65°C |
| ISC Amps | 6890 |
| Internal Resistance | 0.00011 Ohms |
| Dimensions (L x W x H) | 11.38 x 14.55 x 22.5 in |
| Weight | 314 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.188 in (0_18 mm) |
| Torque (Initial / Maintenance) | 90 / 95 in-lbs |
| Container | V0 |
| Terminal | 0_188 |
| FOB | T |
| Max Continuous Discharge | 4560 Amps |
| Max Charge Amps | 456 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 1139 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 67.04896339 lbs |
