Furnish New Battery Exide GNB Sprinter XP P Series XP12V1800 M6

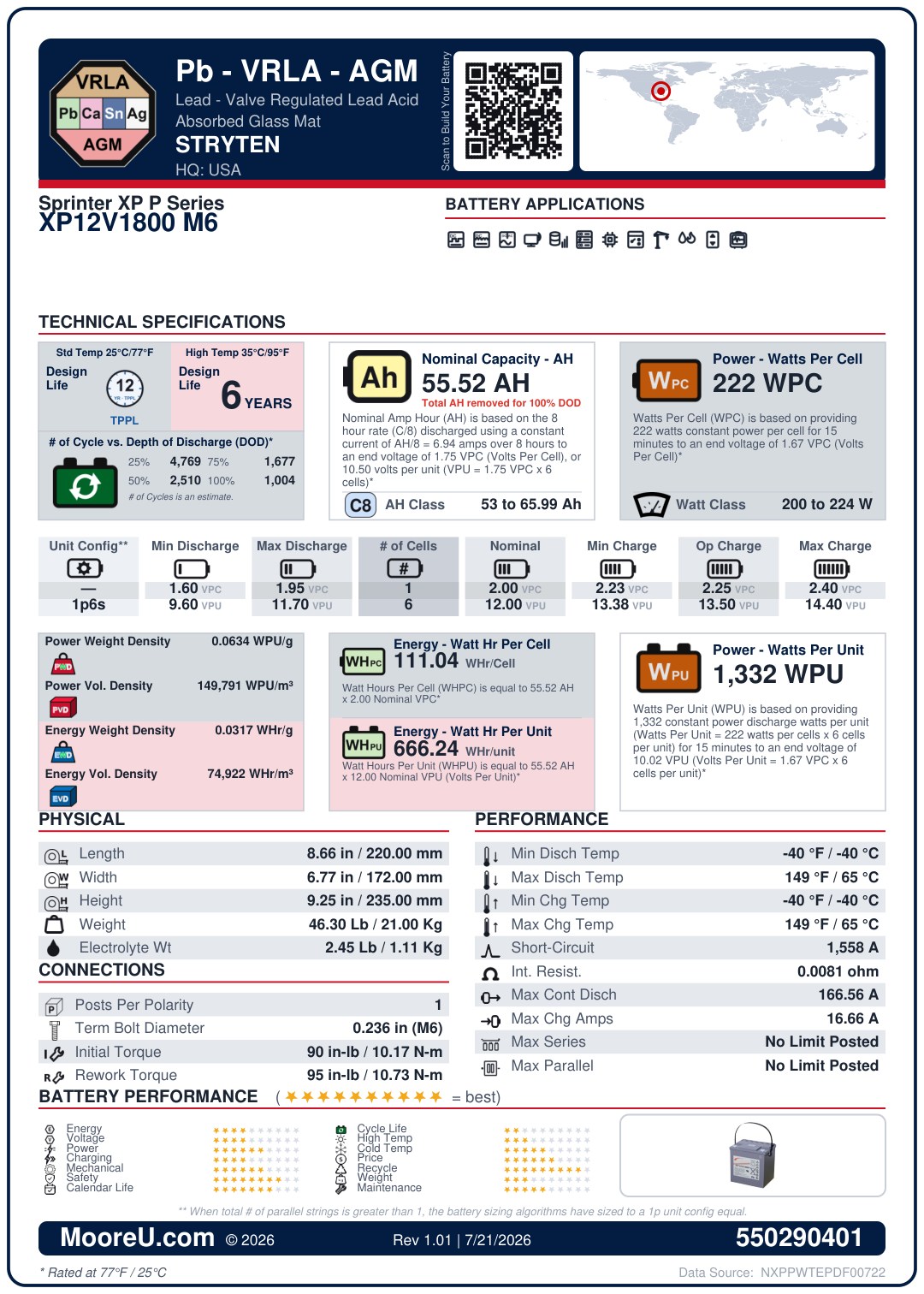

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Exide GNB Sprinter XP P Series XP12V1800 M6
Adjustment	1
AH Per String	55.52
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 65°C
Charge Temp Range	-40°C to 65°C
ISC Amps	1558
Internal Resistance	0.0081 Ohms
Dimensions (L x W x H)	8.66142 x 6.77165 x 9.25197 in
Weight	46.3 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	90 / 95 in-lbs
Container	V0
Terminal	0_216
FOB	T
Max Continuous Discharge	166.56 Amps
Max Charge Amps	16.656 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	222
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	2.44905161 lbs
