Furnish New Battery CDTechno TEL Series TEL12 80 0 25

Technology: Pb_Ca_VRLA_AGM.png
Furnish New Battery CDTechno TEL Series TEL12 80 0 25

$350.56

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery CDTechno TEL Series TEL12 80 0 25

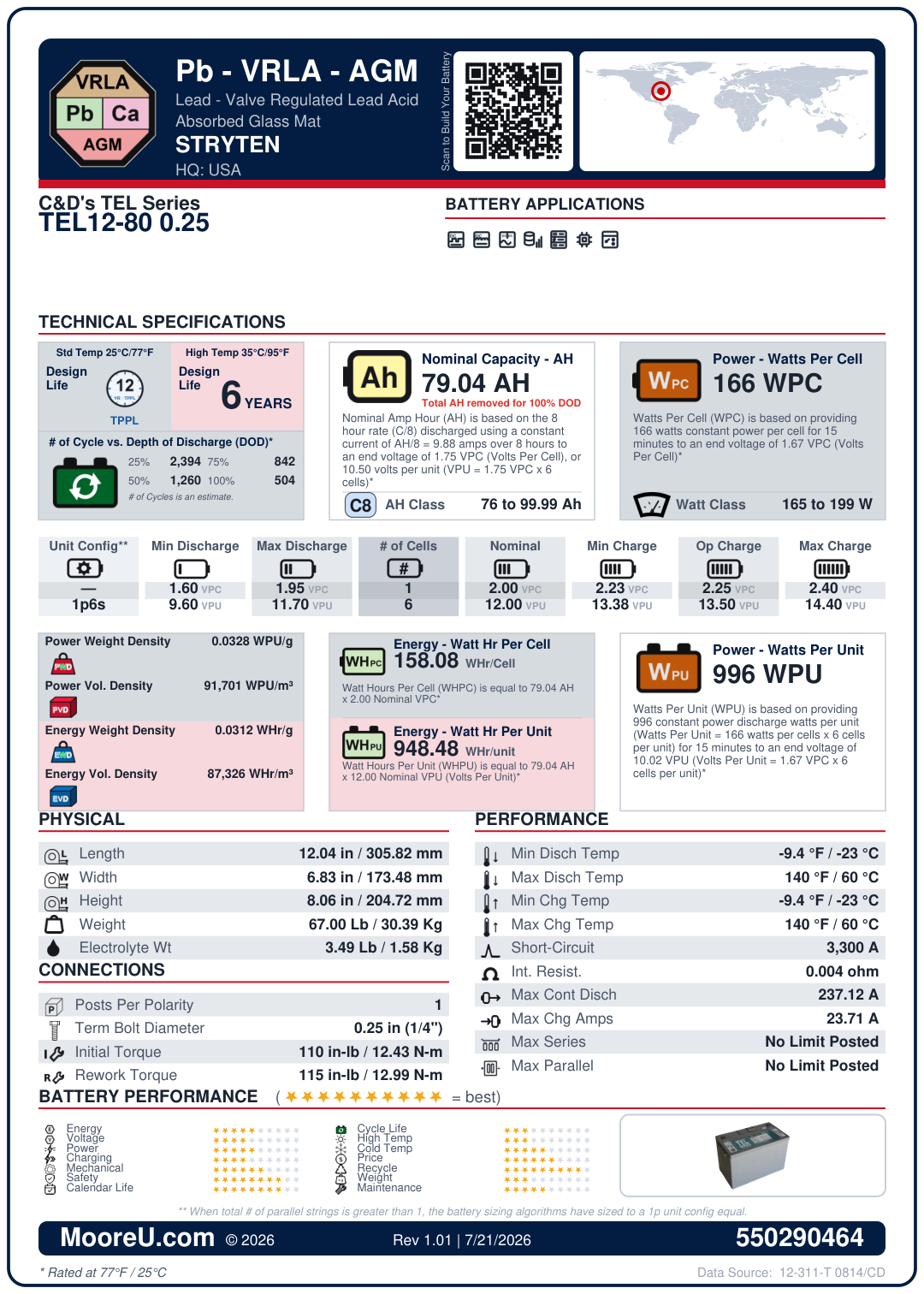

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	CDTechno TEL Series TEL12 80 0 25
Adjustment	1
AH Per String	79.04
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-23°C to 60°C
Charge Temp Range	-23°C to 60°C
ISC Amps	3300
Internal Resistance	0.004 Ohms
Dimensions (L x W x H)	12.04 x 6.83 x 8.06 in
Weight	67 lbs
Number of Posts	1
Terminal Bolt Diameter	0.25 in (0_25 mm)
Torque (Initial / Maintenance)	110 / 115 in-lbs
Container	V0
Terminal	0_25
FOB	T
Max Continuous Discharge	237.12 Amps
Max Charge Amps	23.712 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	166
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	3.486546096 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
Furnish New Battery Enclosure BC25 350WPC 350W UPS12 300MR ccpower.com	na	29.000 x 31.500 x 8.06 in	32 units Quantity
Furnish New Battery Enclosure BC55 350WPC 350W UPS12 300MR ccpower.com	na	40.000 x 29.500 x 8.06 in	60 units Quantity
Furnish New Battery Enclosure BC39 350WPC 350W UPS12 300MR ccpower.com	na	36.000 x 29.500 x 8.06 in	32 units Quantity
Furnish New Battery Enclosure BC43 350WPC 350W UPS12 300MR ccpower.com	na	36.000 x 29.500 x 8.06 in	40 units Quantity
Furnish New Battery Enclosure BC25 350WPC 350W UPS12 300MR ccpower.com	na	29.000 x 31.500 x 8.06 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 350WPC 350W UPS12 300MR ccpower.com	na	29.000 x 31.500 x 8.06 in	16 units Quantity
Furnish New Battery Enclosure BC39 350WPC 350W UPS12 300MR ccpower.com	na	36.000 x 29.500 x 8.06 in	32 units Quantity
Furnish New Battery Enclosure BC55 350WPC 350W UPS12 300MR ccpower.com	na	40.000 x 29.500 x 8.06 in	60 units Quantity
Furnish New Battery Enclosure BC43 350WPC 350W UPS12 300MR ccpower.com	na	36.000 x 29.500 x 8.06 in	40 units Quantity
Furnish New Battery Enclosure BC25 350WPC 350W UPS12 300MR ccpower.com	na	29.000 x 31.500 x 8.06 in	32 units Quantity
Furnish New Battery Enclosure BC55 350WPC 350W UPS12 300MR ccpower.com	na	40.000 x 29.500 x 8.06 in	60 units Quantity
Furnish New Battery Enclosure BC25 Spares 350WPC 350W UPS12 300MR ccpower.com	na	29.000 x 31.500 x 8.06 in	16 units Quantity
Furnish New Battery Enclosure BC39 350WPC 350W UPS12 300MR ccpower.com	na	36.000 x 29.500 x 8.06 in	32 units Quantity
Furnish New Battery Enclosure BC43 350WPC 350W UPS12 300MR ccpower.com	na	36.000 x 29.500 x 8.06 in	40 units Quantity
Furnish New Battery Enclosure BC25 Spares 350WPC 350W UPS12 300MR ccpower.com	na	29.000 x 31.500 x 8.06 in	16 units Quantity
Furnish New Battery Enclosure BC55 350WPC 350W UPS12 300MR ccpower.com	na	40.000 x 29.500 x 8.06 in	60 units Quantity
Furnish New Battery Enclosure BC43 350WPC 350W UPS12 300MR ccpower.com	na	36.000 x 29.500 x 8.06 in	40 units Quantity
Furnish New Battery Enclosure BC25 350WPC 350W UPS12 300MR ccpower.com	na	29.000 x 31.500 x 8.06 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 350WPC 350W UPS12 300MR ccpower.com	na	29.000 x 31.500 x 8.06 in	16 units Quantity
Furnish New Battery Enclosure BC39 350WPC 350W UPS12 300MR ccpower.com	na	36.000 x 29.500 x 8.06 in	32 units Quantity
Furnish New Battery Enclosure BC25 350WPC 350W UPS12 300MR ccpower.com	na	29.000 x 31.500 x 8.06 in	32 units Quantity
Furnish New Battery Enclosure BC55 350WPC 350W UPS12 300MR ccpower.com	na	40.000 x 29.500 x 8.06 in	60 units Quantity
Furnish New Battery Enclosure BC39 350WPC 350W UPS12 300MR ccpower.com	na	36.000 x 29.500 x 8.06 in	32 units Quantity
Furnish New Battery Enclosure BC43 350WPC 350W UPS12 300MR ccpower.com	na	36.000 x 29.500 x 8.06 in	40 units Quantity
Furnish New Battery Enclosure BC25 Spares 350WPC 350W UPS12 300MR ccpower.com	na	29.000 x 31.500 x 8.06 in	16 units Quantity
Furnish New Battery Enclosure BC55 350WPC 350W UPS12 300MR ccpower.com	na	40.000 x 29.500 x 8.06 in	60 units Quantity
Furnish New Battery Enclosure BC43 350WPC 350W UPS12 300MR ccpower.com	na	36.000 x 29.500 x 8.06 in	40 units Quantity
Furnish New Battery Enclosure BC25 350WPC 350W UPS12 300MR ccpower.com	na	29.000 x 31.500 x 8.06 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 350WPC 350W UPS12 300MR ccpower.com	na	29.000 x 31.500 x 8.06 in	16 units Quantity
Furnish New Battery Enclosure BC39 350WPC 350W UPS12 300MR ccpower.com	na	36.000 x 29.500 x 8.06 in	32 units Quantity
Furnish New Battery Enclosure BC25 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC55 620WPC 620W UPS12 620MR ccpower.com	na	40.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC39 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC43 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	40 units Quantity
Furnish New Battery Enclosure BC25 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	16 units Quantity
Furnish New Battery Enclosure BC39 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC55 620WPC 620W UPS12 620MR ccpower.com	na	40.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC43 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	40 units Quantity
Furnish New Battery Enclosure BC25 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC55 620WPC 620W UPS12 620MR ccpower.com	na	40.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC25 Spares 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	16 units Quantity
Furnish New Battery Enclosure BC39 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC43 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	40 units Quantity
Furnish New Battery Enclosure BC25 Spares 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	16 units Quantity
Furnish New Battery Enclosure BC55 620WPC 620W UPS12 620MR ccpower.com	na	40.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC43 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	40 units Quantity
Furnish New Battery Enclosure BC25 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	16 units Quantity
Furnish New Battery Enclosure BC39 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC25 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC55 620WPC 620W UPS12 620MR ccpower.com	na	40.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC39 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC43 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	40 units Quantity
Furnish New Battery Enclosure BC25 Spares 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	16 units Quantity
Furnish New Battery Enclosure BC55 620WPC 620W UPS12 620MR ccpower.com	na	40.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC43 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	40 units Quantity
Furnish New Battery Enclosure BC25 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	16 units Quantity
Furnish New Battery Enclosure BC39 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	32 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	32 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	32 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	32 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	32 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	32 units Quantity
Furnish New Battery Enclosure MNBE A (1 shelf) 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Holds three group 31 or 27 sealed batteries per shelf side by side or two per shelf end to end. Also holds one 8D per shelf. Two cabinets can be stacked horizontal or vertical for expansion. Remove middle	29.000 x 14.500 x 10.82 in	8 units Quantity
Furnish New Battery Enclosure MNBE C (3 Shelf) 8D 8D midnitesolar.com	MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two	34.000 x 15.250 x 10.82 in	16 units Quantity
Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Outdoor 3R rain type design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated a	28.500 x 26.250 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) Deluxe e/w 250A Breaker and 4/0 cabling 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Outdoor 3R rain proof design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated	28.500 x 26.250 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
