Furnish New Battery CDTechno TEL Series TEL12 115FN M6

Technology: Pb_Ca_VRLA_AGM.png
Furnish New Battery CDTechno TEL Series TEL12 115FN M6

$479.00

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery CDTechno TEL Series TEL12 115FN M6

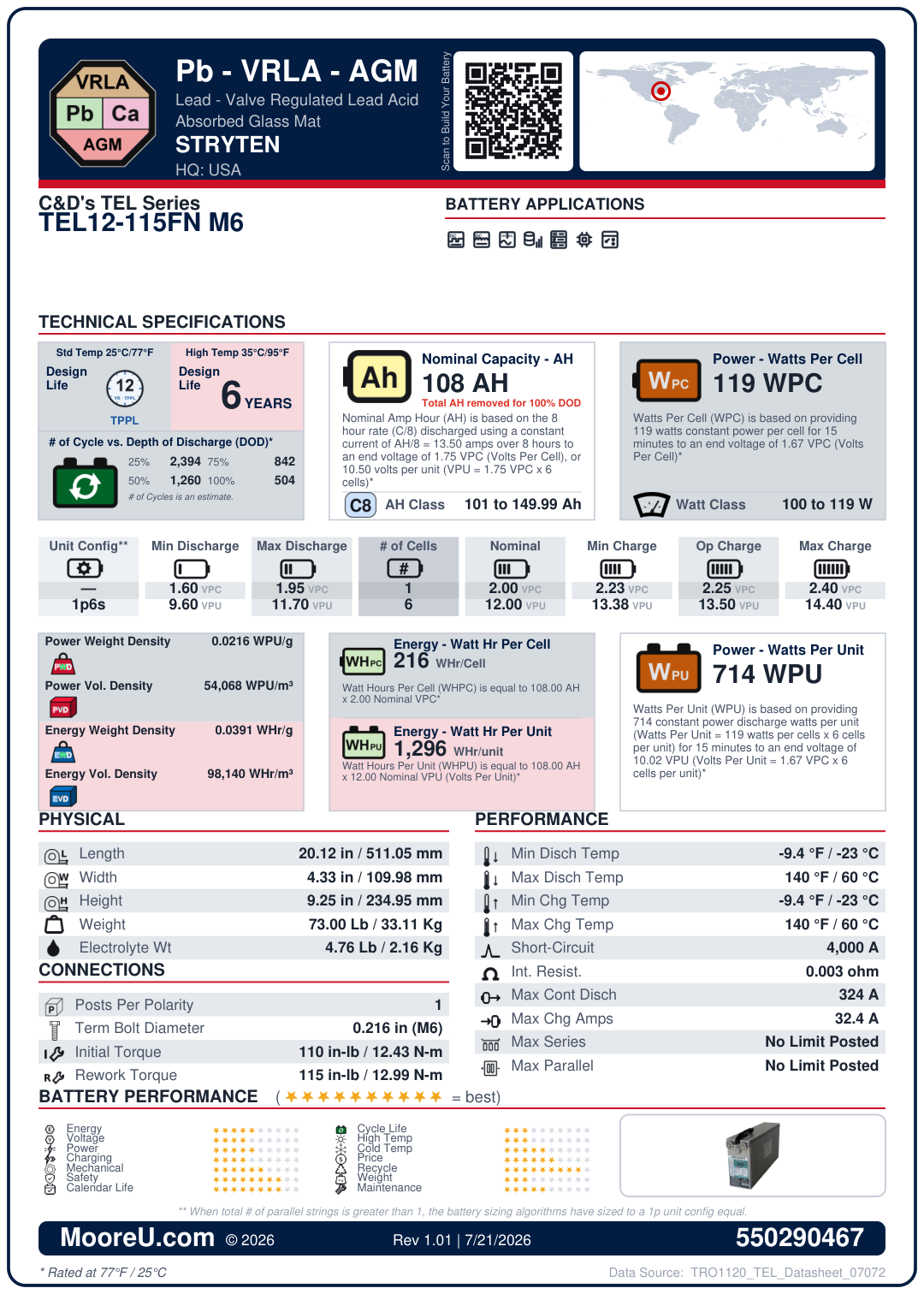

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	CDTechno TEL Series TEL12 115FN M6
Adjustment	1
AH Per String	108
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-23°C to 60°C
Charge Temp Range	-23°C to 60°C
ISC Amps	4000
Internal Resistance	0.003 Ohms
Dimensions (L x W x H)	20.12 x 4.33 x 9.25 in
Weight	73 lbs
Number of Posts	1
Terminal Bolt Diameter	0.216 in (M6 mm)
Torque (Initial / Maintenance)	110 / 115 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	324 Amps
Max Charge Amps	32.4 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	119
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	4.764005293 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
Furnish New Battery Enclosure UBC75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 33.600 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBR75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 32.440 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBC75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 33.600 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBR75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 32.440 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure BC25 Spares 170AH 170AH FT TEL12 170FG ccpower.com	na	29.000 x 31.500 x 11.2 in	14 units Quantity
Furnish New Battery Enclosure UBC75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 33.600 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBR75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 32.440 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure BC25 Spares 170AH 170AH FT TEL12 170FG ccpower.com	na	29.000 x 31.500 x 11.2 in	14 units Quantity
Furnish New Battery Enclosure UBC75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 33.600 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBR75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 32.440 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure BC25 Spares 170AH 170AH FT TEL12 170FG ccpower.com	na	29.000 x 31.500 x 11.2 in	14 units Quantity
Furnish New Battery Enclosure BC25 Spares 170AH 170AH FT TEL12 170FG ccpower.com	na	29.000 x 31.500 x 11.2 in	14 units Quantity
Furnish New Battery Enclosure UBC75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 33.600 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBR75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 32.440 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBC75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 33.600 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBR75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 32.440 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure BC25 Spares 170AH 170AH FT TEL12 170FG ccpower.com	na	29.000 x 31.500 x 11.2 in	14 units Quantity
Furnish New Battery Enclosure BC25 Spares 170AH 170AH FT TEL12 170FG ccpower.com	na	29.000 x 31.500 x 11.2 in	14 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	28 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	28 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	28 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	28 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	28 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	28 units Quantity
Furnish New Battery Enclosure MNBE A (1 shelf) 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Holds three group 31 or 27 sealed batteries per shelf side by side or two per shelf end to end. Also holds one 8D per shelf. Two cabinets can be stacked horizontal or vertical for expansion. Remove middle	29.000 x 14.500 x 10.82 in	6 units Quantity
Furnish New Battery Enclosure MNBE C (3 Shelf) 8D 8D midnitesolar.com	MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two	34.000 x 15.250 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Outdoor 3R rain type design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated a	28.500 x 26.250 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) Deluxe e/w 250A Breaker and 4/0 cabling 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Outdoor 3R rain proof design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated	28.500 x 26.250 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	10 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	10 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	10 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	10 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	10 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	10 units Quantity
Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
