Furnish New Battery CDTechno TEL Series TEL12 125 0 25

Technology: Pb_Ca_VRLA_AGM.png
Furnish New Battery CDTechno TEL Series TEL12 125 0 25

$558.84

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery CDTechno TEL Series TEL12 125 0 25

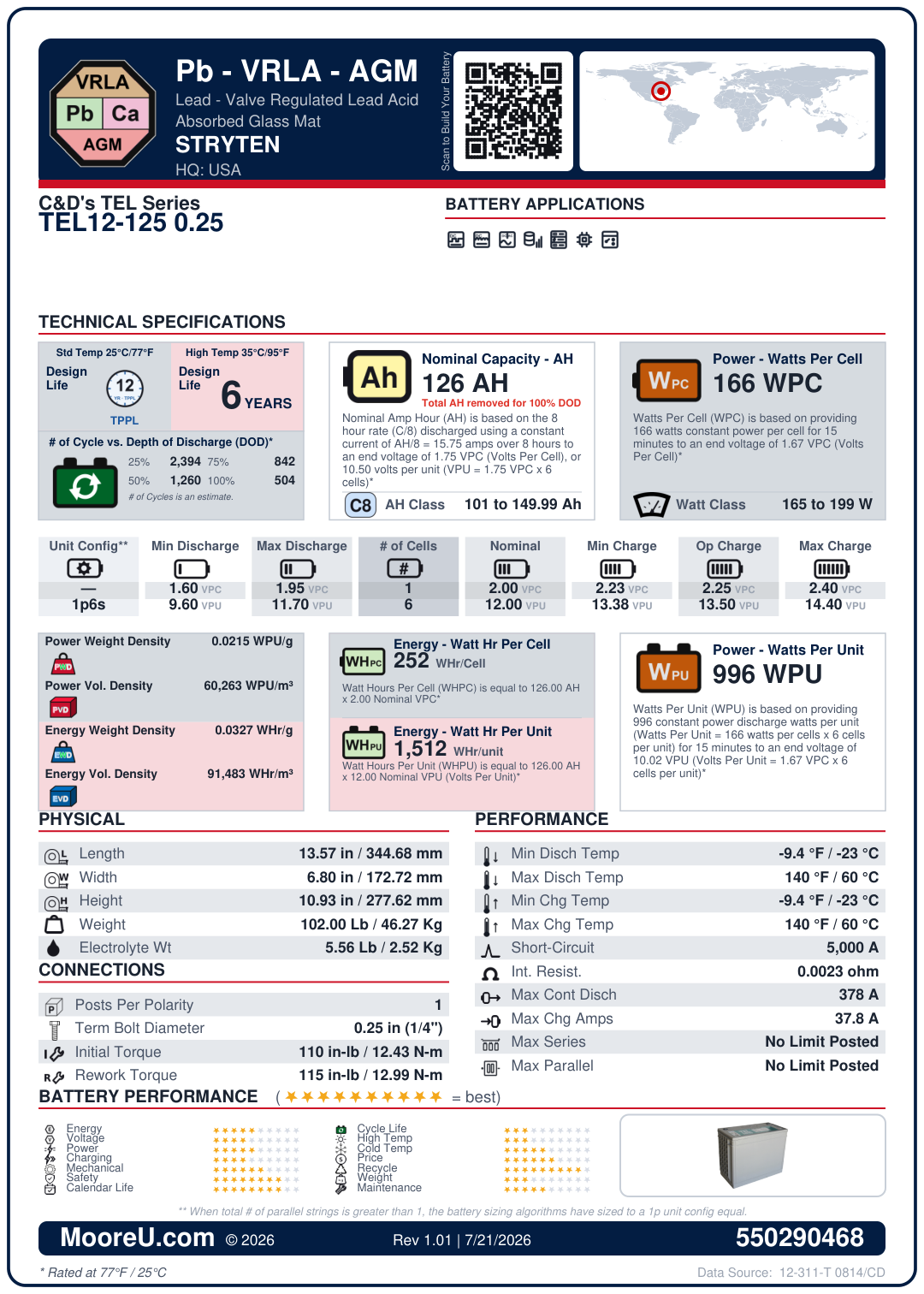

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	CDTechno TEL Series TEL12 125 0 25
Adjustment	1
AH Per String	126
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	2
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-23°C to 60°C
Charge Temp Range	-23°C to 60°C
ISC Amps	5000
Internal Resistance	0.0023 Ohms
Dimensions (L x W x H)	13.57 x 6.8 x 10.93 in
Weight	102 lbs
Number of Posts	1
Terminal Bolt Diameter	0.25 in (0_25 mm)
Torque (Initial / Maintenance)	110 / 115 in-lbs
Container	V0
Terminal	0_25
FOB	T
Max Continuous Discharge	378 Amps
Max Charge Amps	37.8 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	166
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	5.558006176 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
Furnish New Battery Enclosure BC25 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W UPS12 490MR ccpower.com	na	40.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W UPS12 540MR ccpower.com	na	40.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W UPS12 490MR ccpower.com	na	40.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W UPS12 540MR ccpower.com	na	40.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W UPS12 490MR ccpower.com	na	40.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W UPS12 540MR ccpower.com	na	40.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W UPS12 490MR ccpower.com	na	40.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W UPS12 540MR ccpower.com	na	40.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W UPS12 490MR ccpower.com	na	40.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W UPS12 540MR ccpower.com	na	40.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W UPS12 490MR ccpower.com	na	40.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W UPS12 540MR ccpower.com	na	40.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	40 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	75 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	75 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	75 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	75 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	75 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	75 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	75 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	75 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	75 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	75 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	75 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	75 units Quantity
