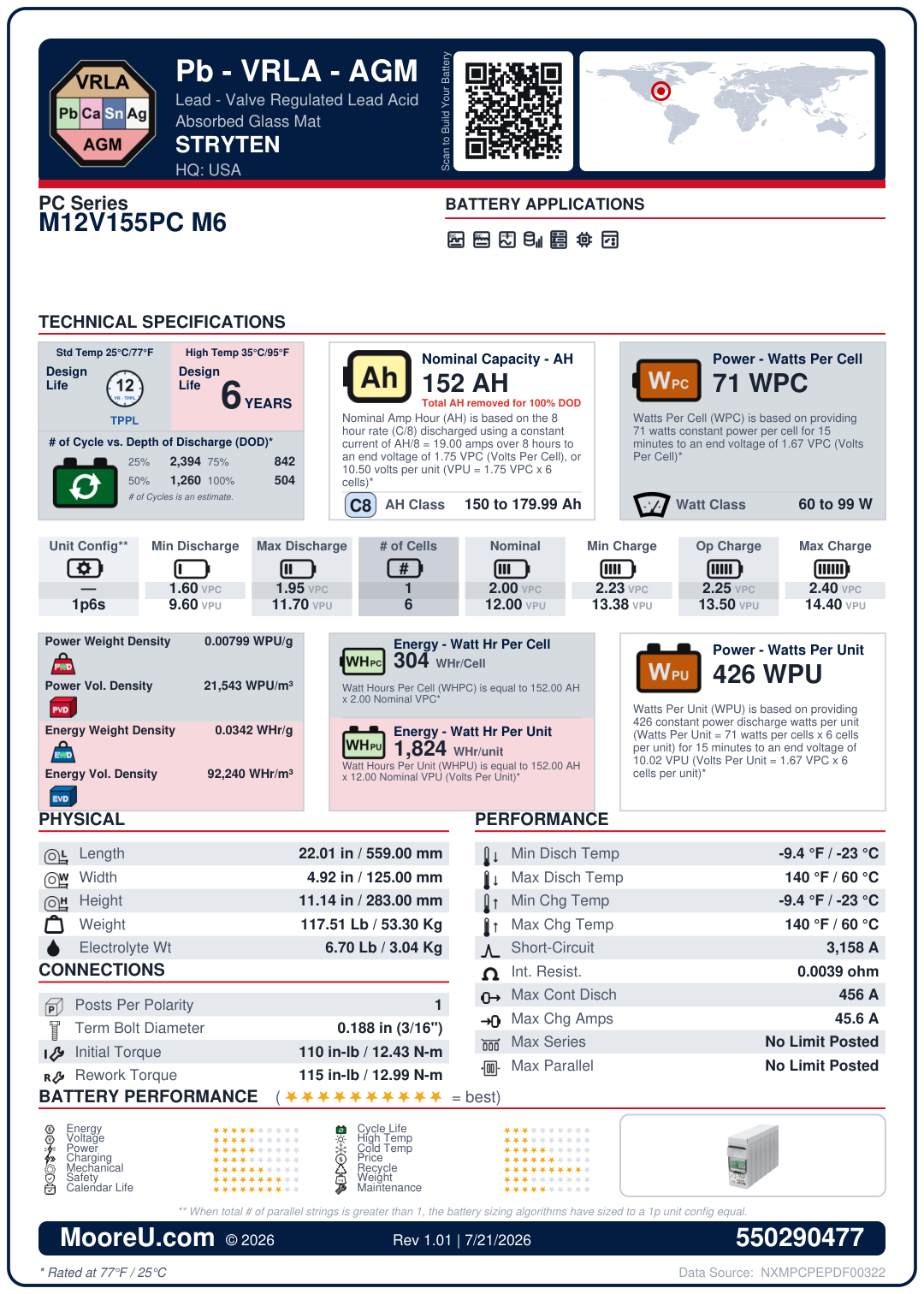

Front of card
Back of card
Furnish New Battery Exide GNB PC Series M12V155PC M6
Technology: Pb_Ca_Sn_Ag_VRLA_AGM_841.pngFurnish New Battery Exide GNB PC Series M12V155PC M6
$632.02
Build my Battery
Recycle My Battery
Furnish New Battery Exide GNB PC Series M12V155PC M6
| Battery Model | Exide GNB PC Series M12V155PC M6 |
|---|---|
| Adjustment | 1 |
| AH Per String | 152 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -23°C to 60°C |
| Charge Temp Range | -23°C to 60°C |
| ISC Amps | 3158 |
| Internal Resistance | 0.0039 Ohms |
| Dimensions (L x W x H) | 22.0079 x 4.92126 x 11.1417 in |
| Weight | 117.51 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.188 in (0_18 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | 0_188 |
| FOB | T |
| Max Continuous Discharge | 456 Amps |
| Max Charge Amps | 45.6 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 71 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 6.704896339 lbs |
