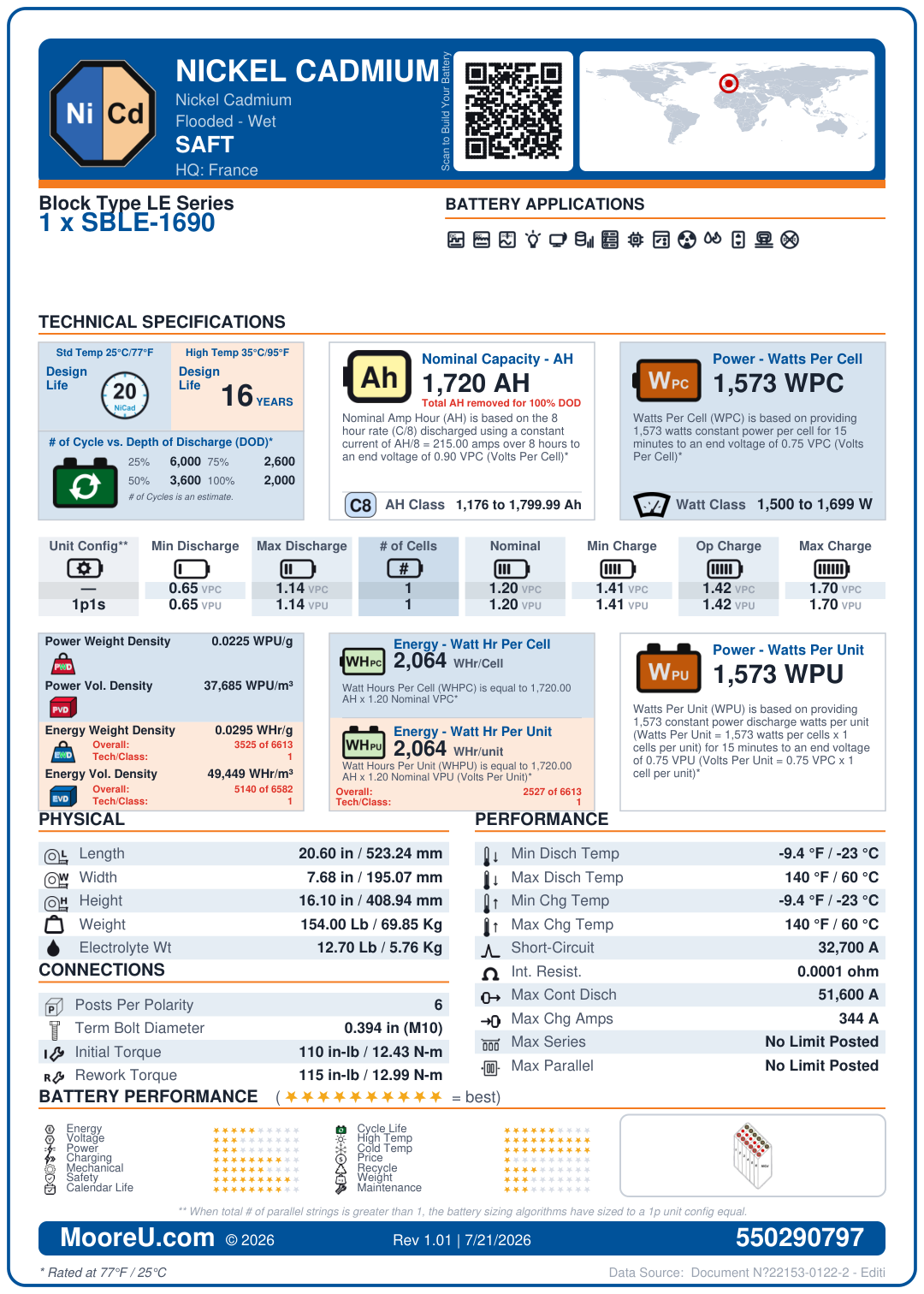

Furnish New Battery SAFT Block Type LE 1 x SBLE 1690
Technology: Ni_Cd_Nickel_Cadmium.pngFurnish New Battery SAFT Block Type LE 1 x SBLE 1690
$2,897.86
Build my Battery
Recycle My Battery
Furnish New Battery SAFT Block Type LE 1 x SBLE 1690
| Battery Model | SAFT Block Type LE 1 x SBLE 1690 |
|---|---|
| Adjustment | 1 |
| AH Per String | 1720 |
| AH Per String Rating | 8 hr @ 0.895 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 1.2 |
| Model KWH | 2 |
| Charge VPC | 1.7 (Min: 1.47, Max: 1.7) |
| Discharge VPC | Min: 0.65, Max: 1.14 |
| Operational Temp Comp | 0 V/°C/cell |
| Cycle Temp Comp | 0 V/°C/cell |
| Discharge Temp Range | -23°C to 60°C |
| Charge Temp Range | -23°C to 60°C |
| ISC Amps | 32700 |
| Internal Resistance | 0.0001 Ohms |
| Dimensions (L x W x H) | 20.6 x 7.68 x 16.1 in |
| Weight | 154 lbs |
| Number of Posts | 6 |
| Terminal Bolt Diameter | 0.393701 in (M10 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | M10 |
| FOB | T |
| Max Continuous Discharge | 51600 Amps |
| Max Charge Amps | 344 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 1573 |
| Watts Per Cell Rating | 15 min @ 0.75 VPC |
| Weight of Electrolyte | 12.7 lbs |
