Furnish New Battery SAFT Block Type M 1 x SBM 830

Technology: Ni_Cd_Nickel_Cadmium.png
Furnish New Battery SAFT Block Type M 1 x SBM 830

$1,401.75

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery SAFT Block Type M 1 x SBM 830

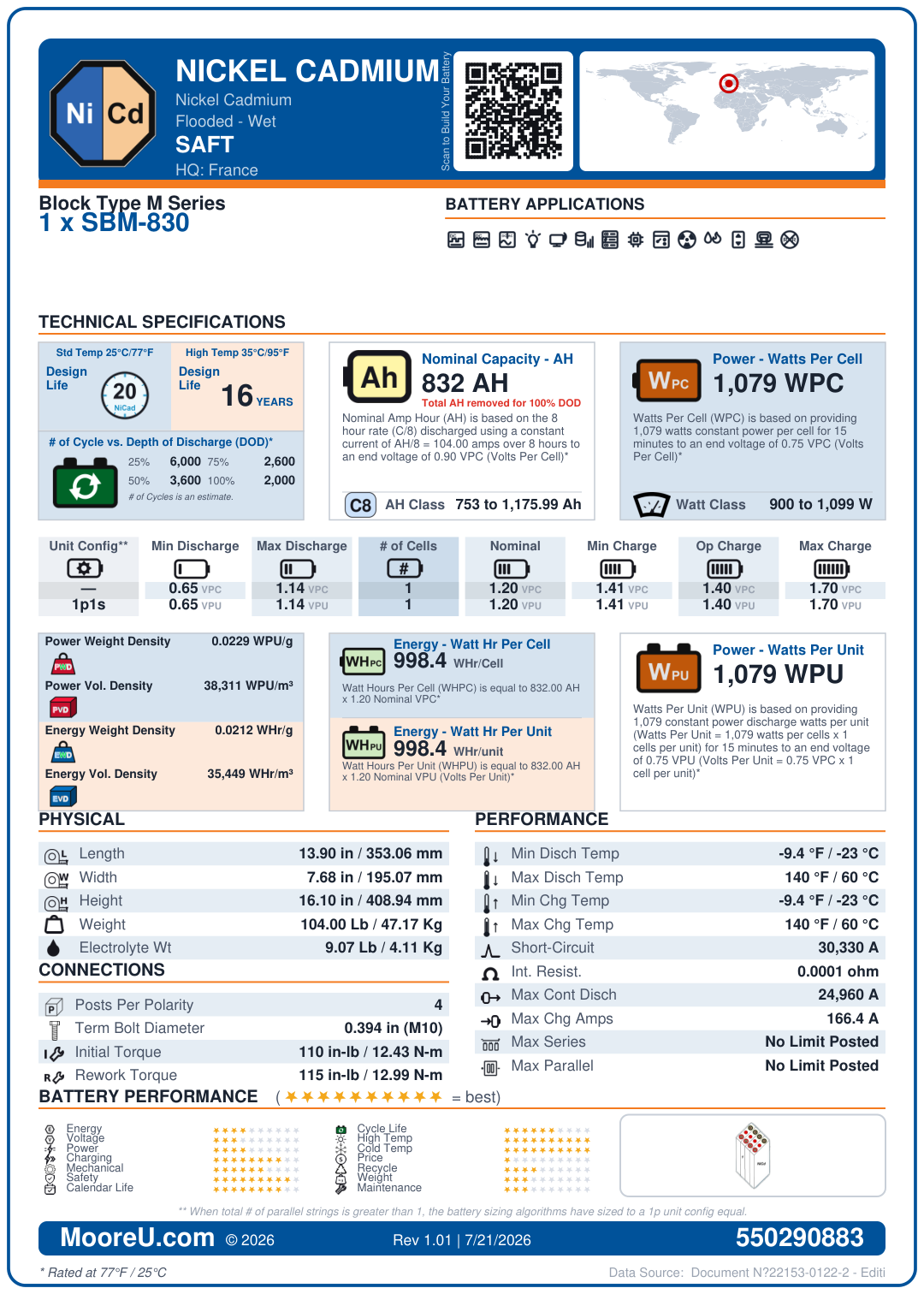

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	SAFT Block Type M 1 x SBM 830
Adjustment	1
AH Per String	832
AH Per String Rating	8 hr @ 0.895 VPC
Cells Per Unit	1
Nominal VPC	1.2
Model KWH	1
Charge VPC	1.7 (Min: 1.47, Max: 1.7)
Discharge VPC	Min: 0.65, Max: 1.14
Operational Temp Comp	0 V/°C/cell
Cycle Temp Comp	0 V/°C/cell
Discharge Temp Range	-23°C to 60°C
Charge Temp Range	-23°C to 60°C
ISC Amps	30330
Internal Resistance	0.0001 Ohms
Dimensions (L x W x H)	13.9 x 7.68 x 16.1 in
Weight	104 lbs
Number of Posts	4
Terminal Bolt Diameter	0.393701 in (M10 mm)
Torque (Initial / Maintenance)	110 / 115 in-lbs
Container	V0
Terminal	M10
FOB	T
Max Continuous Discharge	24960 Amps
Max Charge Amps	166.4 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	1079
Watts Per Cell Rating	15 min @ 0.75 VPC
Weight of Electrolyte	9.07 lbs
