Furnish New Battery SAFT Block Type M 1 x SBM 940

Technology: Ni_Cd_Nickel_Cadmium.png
Furnish New Battery SAFT Block Type M 1 x SBM 940

$1,590.45

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery SAFT Block Type M 1 x SBM 940

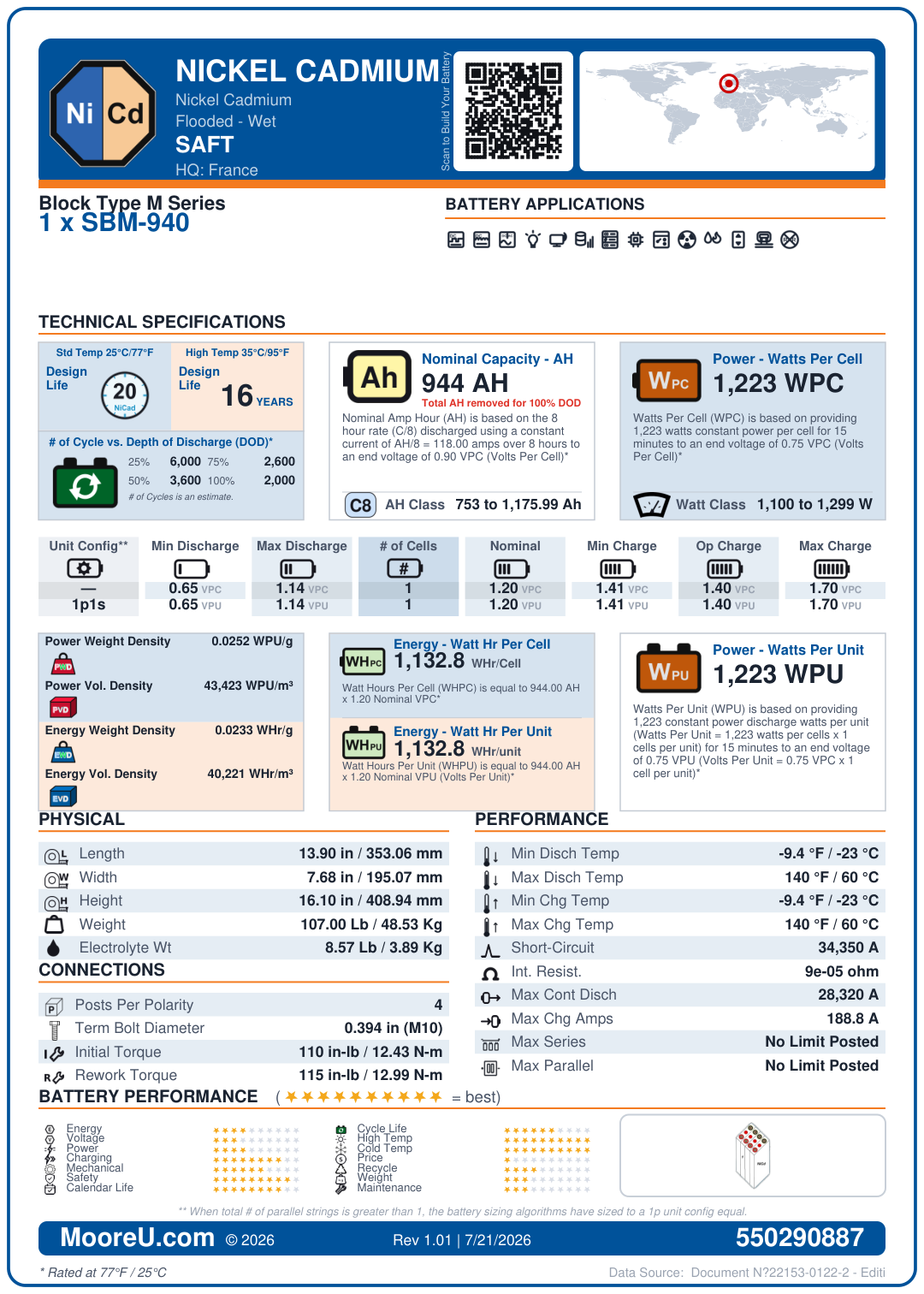

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	SAFT Block Type M 1 x SBM 940
Adjustment	1
AH Per String	944
AH Per String Rating	8 hr @ 0.895 VPC
Cells Per Unit	1
Nominal VPC	1.2
Model KWH	1
Charge VPC	1.7 (Min: 1.47, Max: 1.7)
Discharge VPC	Min: 0.65, Max: 1.14
Operational Temp Comp	0 V/°C/cell
Cycle Temp Comp	0 V/°C/cell
Discharge Temp Range	-23°C to 60°C
Charge Temp Range	-23°C to 60°C
ISC Amps	34350
Internal Resistance	9.0E-5 Ohms
Dimensions (L x W x H)	13.9 x 7.68 x 16.1 in
Weight	107 lbs
Number of Posts	4
Terminal Bolt Diameter	0.393701 in (M10 mm)
Torque (Initial / Maintenance)	110 / 115 in-lbs
Container	V0
Terminal	M10
FOB	T
Max Continuous Discharge	28320 Amps
Max Charge Amps	188.8 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	1223
Watts Per Cell Rating	15 min @ 0.75 VPC
Weight of Electrolyte	8.57 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
Furnish New Battery Rack UA43 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 21.870 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA43 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 21.870 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA46 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	14.000 x 24.370 x 33.54 in	3 units Quantity
Furnish New Battery Rack UA46 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 24.370 x 33.54 in	3 units Quantity
Furnish New Battery Rack UA46 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 24.370 x 33.54 in	3 units Quantity
Furnish New Battery Rack UA46 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 24.370 x 33.54 in	3 units Quantity
Furnish New Battery Rack UA46 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 24.370 x 33.54 in	3 units Quantity
Furnish New Battery Rack UA46 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 24.370 x 33.54 in	3 units Quantity
Furnish New Battery Rack UA46 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 24.370 x 33.54 in	3 units Quantity
Furnish New Battery Rack UA47 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	14.000 x 37.620 x 33.54 in	4 units Quantity
Furnish New Battery Rack UA47 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 37.620 x 33.54 in	4 units Quantity
Furnish New Battery Rack UA47 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 37.620 x 33.54 in	4 units Quantity
Furnish New Battery Rack UA47 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 37.620 x 33.54 in	4 units Quantity
Furnish New Battery Rack UA47 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 37.620 x 33.54 in	4 units Quantity
Furnish New Battery Rack UA47 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 37.620 x 33.54 in	4 units Quantity
Furnish New Battery Rack UA47 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 37.620 x 33.54 in	4 units Quantity
Furnish New Battery Rack UA48 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	14.000 x 31.620 x 33.54 in	4 units Quantity
Furnish New Battery Rack UA48 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 31.620 x 33.54 in	4 units Quantity
Furnish New Battery Rack UA48 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 31.620 x 33.54 in	4 units Quantity
Furnish New Battery Rack UA48 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 31.620 x 33.54 in	4 units Quantity
Furnish New Battery Rack UA48 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 31.620 x 33.54 in	4 units Quantity
Furnish New Battery Rack UA48 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 31.620 x 33.54 in	4 units Quantity
Furnish New Battery Rack UA48 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 31.620 x 33.54 in	4 units Quantity
Furnish New Battery Rack N741 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	14.000 x 12.000 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N741 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 12.000 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N741 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 12.000 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N741 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 12.000 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N741 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 12.000 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N741 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 12.000 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N741 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 12.000 x 33.54 in	1 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	14.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N742 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N743 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	14.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N743 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N743 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N743 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N743 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N743 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N743 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 17.620 x 33.54 in	2 units Unavailable
Furnish New Battery Rack N746 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	14.000 x 24.370 x 33.54 in	3 units Unavailable
Furnish New Battery Rack N746 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 24.370 x 33.54 in	3 units Unavailable
Furnish New Battery Rack N746 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 24.370 x 33.54 in	3 units Unavailable
Furnish New Battery Rack N746 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 24.370 x 33.54 in	3 units Unavailable
Furnish New Battery Rack N746 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 24.370 x 33.54 in	3 units Unavailable
Furnish New Battery Rack N746 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 24.370 x 33.54 in	3 units Unavailable
Furnish New Battery Rack N746 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 24.370 x 33.54 in	3 units Unavailable
Furnish New Battery Rack U441 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	14.000 x 12.000 x 33.54 in	1 units Quantity
Furnish New Battery Rack U441 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 12.000 x 33.54 in	1 units Quantity
Furnish New Battery Rack U441 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 12.000 x 33.54 in	1 units Quantity
Furnish New Battery Rack U441 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 12.000 x 33.54 in	1 units Quantity
Furnish New Battery Rack U441 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 12.000 x 33.54 in	1 units Quantity
Furnish New Battery Rack U441 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 12.000 x 33.54 in	1 units Quantity
Furnish New Battery Rack U441 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 12.000 x 33.54 in	1 units Quantity
Furnish New Battery Rack N747 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	14.000 x 37.620 x 33.54 in	4 units Unavailable
Furnish New Battery Rack N747 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 37.620 x 33.54 in	4 units Unavailable
Furnish New Battery Rack N747 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 37.620 x 33.54 in	4 units Unavailable
Furnish New Battery Rack N747 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 37.620 x 33.54 in	4 units Unavailable
Furnish New Battery Rack N747 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 37.620 x 33.54 in	4 units Unavailable
Furnish New Battery Rack N747 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 37.620 x 33.54 in	4 units Unavailable
Furnish New Battery Rack N747 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 37.620 x 33.54 in	4 units Unavailable
Furnish New Battery Rack UA42 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	14.000 x 17.620 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA42 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 17.620 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA42 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 17.620 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA42 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 17.620 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA42 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 17.620 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA42 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 17.620 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA42 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 17.620 x 33.54 in	2 units Quantity
Furnish New Battery Rack N748 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	14.000 x 31.620 x 33.54 in	4 units Unavailable
Furnish New Battery Rack N748 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 31.620 x 33.54 in	4 units Unavailable
Furnish New Battery Rack N748 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 31.620 x 33.54 in	4 units Unavailable
Furnish New Battery Rack N748 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 31.620 x 33.54 in	4 units Unavailable
Furnish New Battery Rack N748 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 31.620 x 33.54 in	4 units Unavailable
Furnish New Battery Rack N748 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	19.000 x 31.620 x 33.54 in	4 units Unavailable
Furnish New Battery Rack N748 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	20.000 x 31.620 x 33.54 in	4 units Unavailable
Furnish New Battery Rack UA43 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	14.000 x 21.870 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA43 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	15.000 x 21.870 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA43 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	16.000 x 21.870 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA43 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	17.000 x 21.870 x 33.54 in	2 units Quantity
Furnish New Battery Rack UA43 04o = OPzV2 200 Perp or Parallel enersys.com	Battery_Racks	18.000 x 21.870 x 33.54 in	2 units Quantity
