Furnish New Battery SAFT Block Type H 1 x SBH 196
Technology: Ni_Cd_Nickel_Cadmium.pngFurnish New Battery SAFT Block Type H 1 x SBH 196
$331.57
Build my Battery
Recycle My Battery
Furnish New Battery SAFT Block Type H 1 x SBH 196

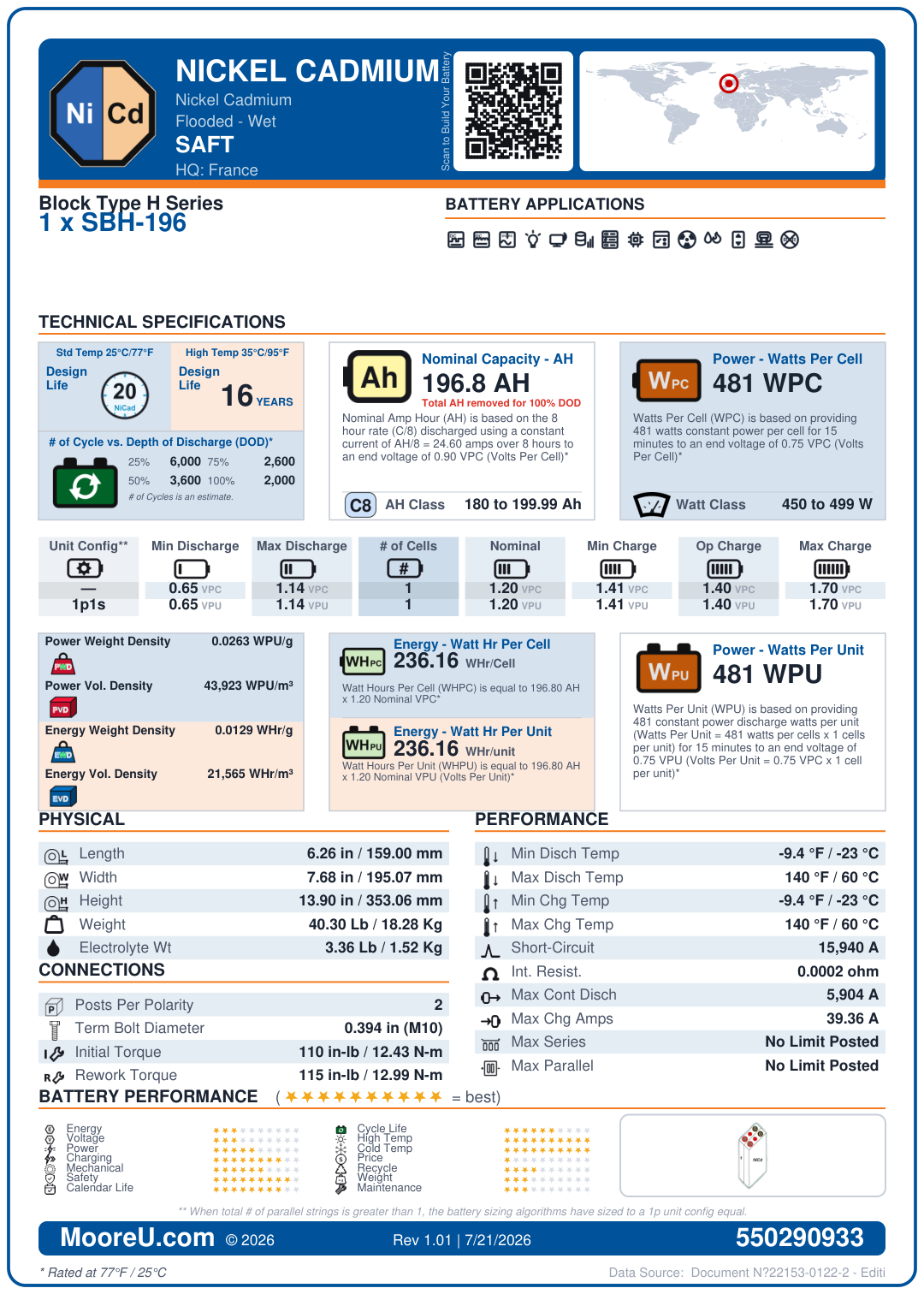

| Battery Model | SAFT Block Type H 1 x SBH 196 |
|---|---|
| Adjustment | 1 |
| AH Per String | 196.8 |
| AH Per String Rating | 8 hr @ 0.895 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 1.2 |
| Model KWH | 0 |
| Charge VPC | 1.7 (Min: 1.47, Max: 1.7) |
| Discharge VPC | Min: 0.65, Max: 1.14 |
| Operational Temp Comp | 0 V/°C/cell |
| Cycle Temp Comp | 0 V/°C/cell |
| Discharge Temp Range | -23°C to 60°C |
| Charge Temp Range | -23°C to 60°C |
| ISC Amps | 15940 |
| Internal Resistance | 0.0002 Ohms |
| Dimensions (L x W x H) | 6.26 x 7.68 x 13.9 in |
| Weight | 40.3 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.393701 in (M10 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | M10 |
| FOB | T |
| Max Continuous Discharge | 5904 Amps |
| Max Charge Amps | 39.36 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 481 |
| Watts Per Cell Rating | 15 min @ 0.75 VPC |
| Weight of Electrolyte | 3.36 lbs |
| Part Number | Description | Dimensions (L x W x H) | Max Capacity |
|---|---|---|---|
| Furnish New Battery Enclosure MNBE D (1 shelf) L16 L16 midnitesolar.com | Our Best Value! Battery Enclosure with locking door and two shelves. MNBE-D holds 8 GVX3050T or 8 golf cart or 8 group 31 batteries. With the optional third shelf, the MNBE-D holds 12 group 31 batteries. MNBE-D battery enclosure accepts MNEDC175 or 250 br | 34.000 x 15.250 x 16.41 in |
16 units |
| Furnish New Battery Enclosure MNBE C (2 Shelf) L16 L16 midnitesolar.com | MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two | 34.000 x 15.250 x 16.41 in |
24 units |
| Furnish New Battery Enclosure MNBE CL16 (1 Shelf) L16 L16 midnitesolar.com | MNBE-CL16 Battery Enclosure with locking door and two shelves. Holds eight sealed L-16 batteries. Gray powder coated steel. Two cabinets can be stacked horizontal for expansion. Enclosure size: 36.5" wide x 16" deep x 55" tall/261 Lbs including pallet (tr | 34.000 x 15.250 x 16.41 in |
16 units |
