Furnish New Battery Enersys AlphaCell XTV Series AlphaCell 240XTV M6

Technology: Pb_VRLA_AGM_500.png
Furnish New Battery Enersys AlphaCell XTV Series AlphaCell 240XTV M6

$432.43

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Enersys AlphaCell XTV Series AlphaCell 240XTV M6

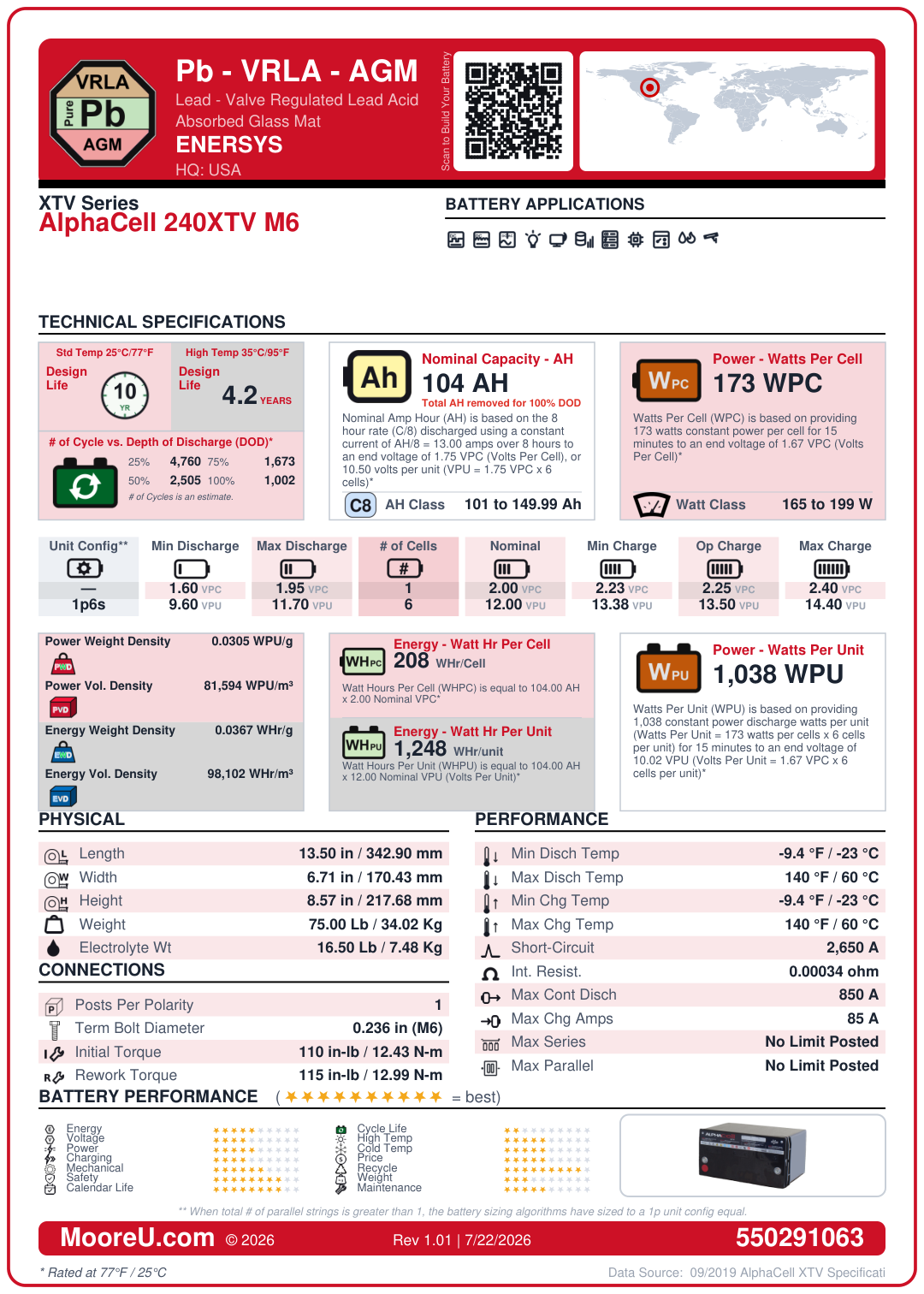

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Enersys AlphaCell XTV Series AlphaCell 240XTV M6
Adjustment	1
AH Per String	104
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.5, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-23°C to 60°C
Charge Temp Range	-23°C to 60°C
ISC Amps	2650
Internal Resistance	0.00034 Ohms
Dimensions (L x W x H)	13.5 x 6.71 x 8.57 in
Weight	75 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	110 / 115 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	850 Amps
Max Charge Amps	85 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	173
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	16.5 lbs
