Furnish New Battery ZincFive Monoblock Series Z5 13 80 H x x M6

Technology: Ni_Zn_Co.png
Furnish New Battery ZincFive Monoblock Series Z5 13 80 H x x M6

$427.68

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery ZincFive Monoblock Series Z5 13 80 H x x M6

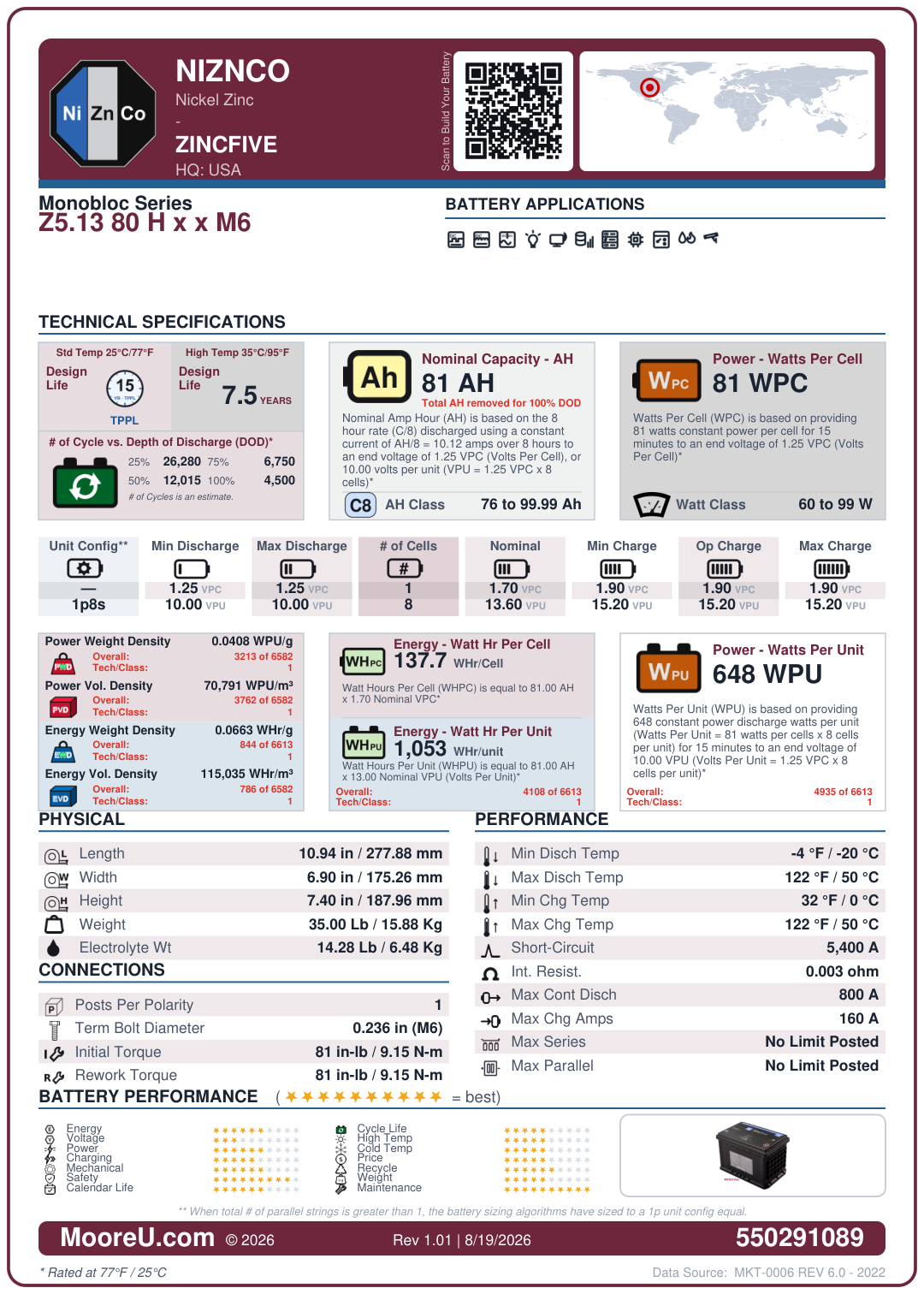

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	ZincFive Monoblock Series Z5 13 80 H x x M6
Adjustment	1
AH Per String	81
AH Per String Rating	8 hr @ 1.25 VPC
Cells Per Unit	8
Nominal VPC	1.65
Model KWH	1
Charge VPC	1.9 (Min: 1.9, Max: 1.9)
Discharge VPC	Min: 1.25, Max: 1.25
Operational Temp Comp	-0.0022 V/°C/cell
Cycle Temp Comp	-0.0022 V/°C/cell
Discharge Temp Range	-20°C to 50°C
Charge Temp Range	0°C to 50°C
ISC Amps	5400
Internal Resistance	0.003 Ohms
Dimensions (L x W x H)	10.94 x 6.9 x 7.4 in
Weight	35 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	81 / 81 in-lbs
Container	UL-2054
Terminal	M6
FOB	T
Max Continuous Discharge	800 Amps
Max Charge Amps	160 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	81
Watts Per Cell Rating	15 min @ 1.25 VPC
Weight of Electrolyte	14.28 lbs
