Furnish New Battery GS Yuasa SLR Series SLR50 12 M6 FlagTerm

Technology: Pb_VRLA_AGM_500.png
Furnish New Battery GS Yuasa SLR Series SLR50 12 M6 FlagTerm

$222.39

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery GS Yuasa SLR Series SLR50 12 M6 FlagTerm

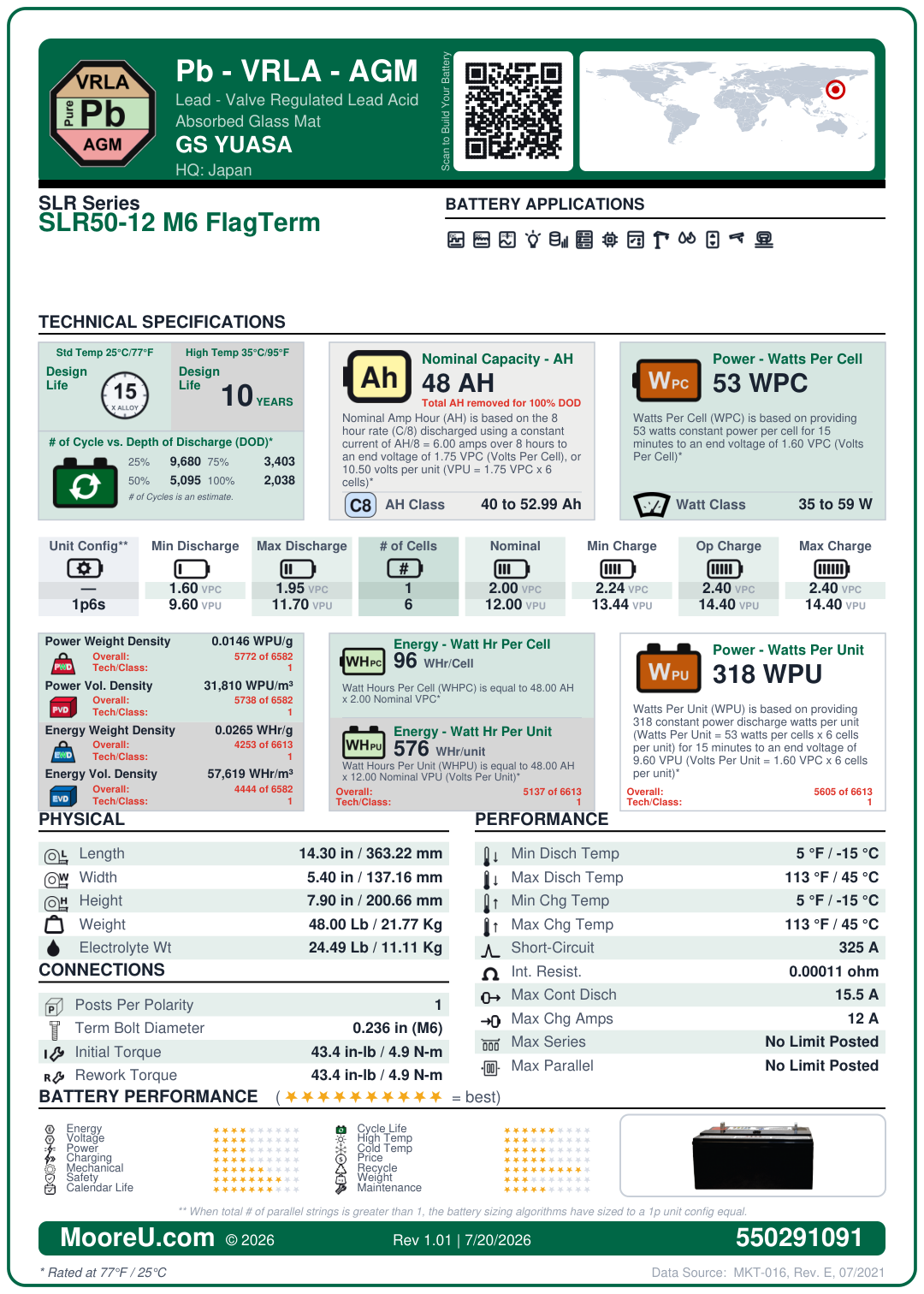

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	GS Yuasa SLR Series SLR50 12 M6 FlagTerm
Adjustment	1
AH Per String	48
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.75)
Discharge VPC	Min: 1.6, Max: 1.95
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-15°C to 45°C
Charge Temp Range	-15°C to 45°C
ISC Amps	325
Internal Resistance	0.00011 Ohms
Dimensions (L x W x H)	14.3 x 5.4 x 7.9 in
Weight	48 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	43.4 / 43.4 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	15.5 Amps
Max Charge Amps	12 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	53
Watts Per Cell Rating	15 min @ 1.6 VPC
Weight of Electrolyte	24.49333333 lbs
