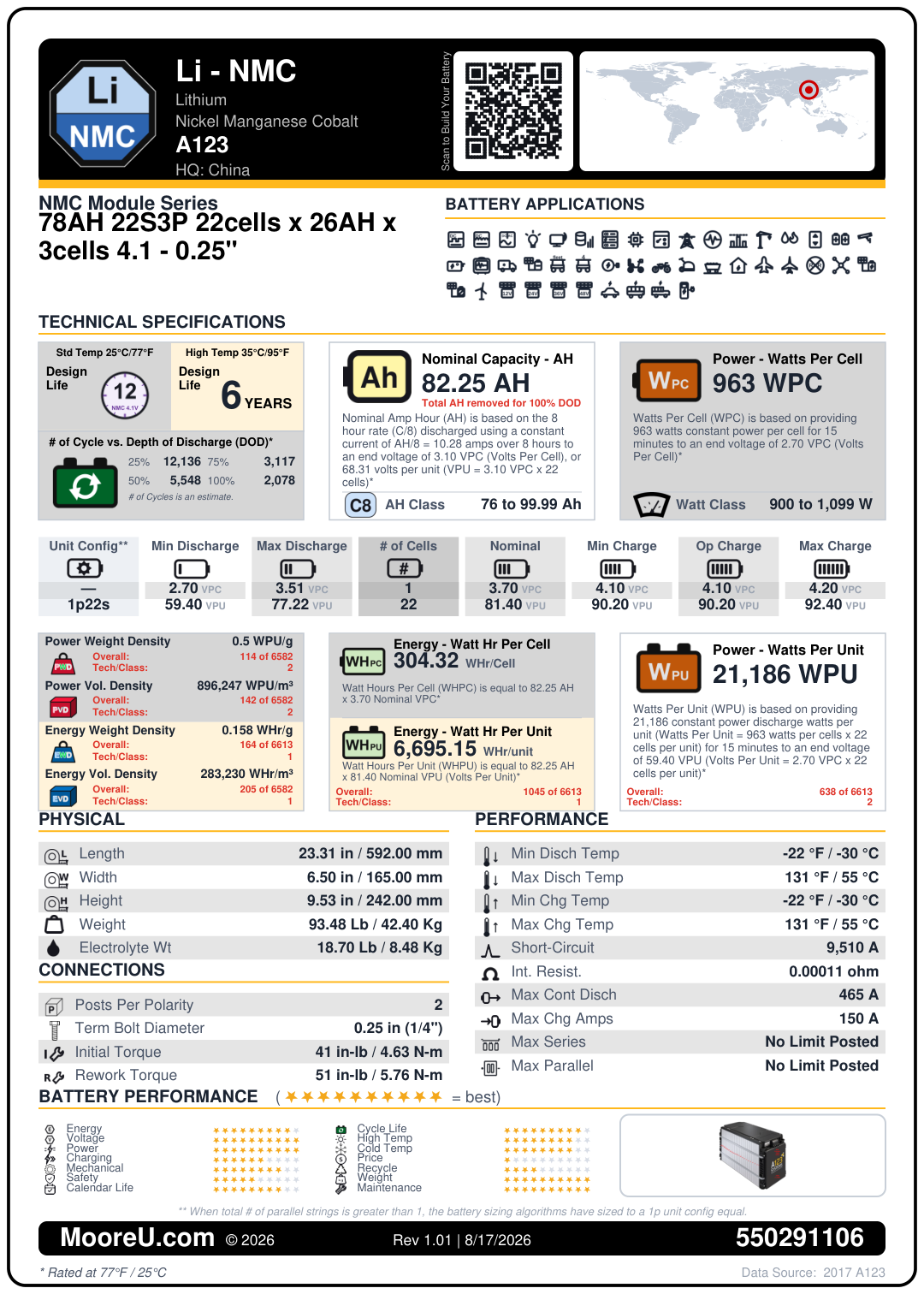

Front of card
Back of card
Furnish New Battery A123 NMC Module Series 78AH 22S3P 22cells x 26AH x 3cells 4 1 0 25
Technology: Li_NMC.pngFurnish New Battery A123 NMC Module Series 78AH 22S3P 22cells x 26AH x 3cells 4 1 0 25
$21,149.98
Build my Battery
Recycle My Battery
Furnish New Battery A123 NMC Module Series 78AH 22S3P 22cells x 26AH x 3cells 4 1 0 25
| Battery Model | A123 NMC Module Series 78AH 22S3P 22cells x 26AH x 3cells 4 1 0 25 |
|---|---|
| Adjustment | 1 |
| AH Per String | 82.25 |
| AH Per String Rating | 8 hr @ 3.105 VPC |
| Cells Per Unit | 22 |
| Nominal VPC | 3.7 |
| Model KWH | 7 |
| Charge VPC | 4.1 (Min: 4.1, Max: 4.18) |
| Discharge VPC | Min: 2.7, Max: 3.51 |
| Operational Temp Comp | -0.00555 V/°C/cell |
| Cycle Temp Comp | -0.0074 V/°C/cell |
| Discharge Temp Range | -30°C to 55°C |
| Charge Temp Range | -30°C to 55°C |
| ISC Amps | 9510 |
| Internal Resistance | 0.00011 Ohms |
| Dimensions (L x W x H) | 23.3071 x 6.49606 x 9.52756 in |
| Weight | 93.476 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.25 in (0_25 mm) |
| Torque (Initial / Maintenance) | 41 / 51 in-lbs |
| Container | V0 |
| Terminal | 0_25 |
| FOB | T |
| Max Continuous Discharge | 465 Amps |
| Max Charge Amps | 150 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 963 |
| Watts Per Cell Rating | 15 min @ 2.7 VPC |
| Weight of Electrolyte | 18.6952 lbs |
