Furnish New Battery Leoch Battery LFeLi Unit Series LFeLi 12 75M 4s1p 3 6 M6

Technology: Li_LFP.png
Furnish New Battery Leoch Battery LFeLi Unit Series LFeLi 12 75M 4s1p 3 6 M6

$1,260.38

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Leoch Battery LFeLi Unit Series LFeLi 12 75M 4s1p 3 6 M6

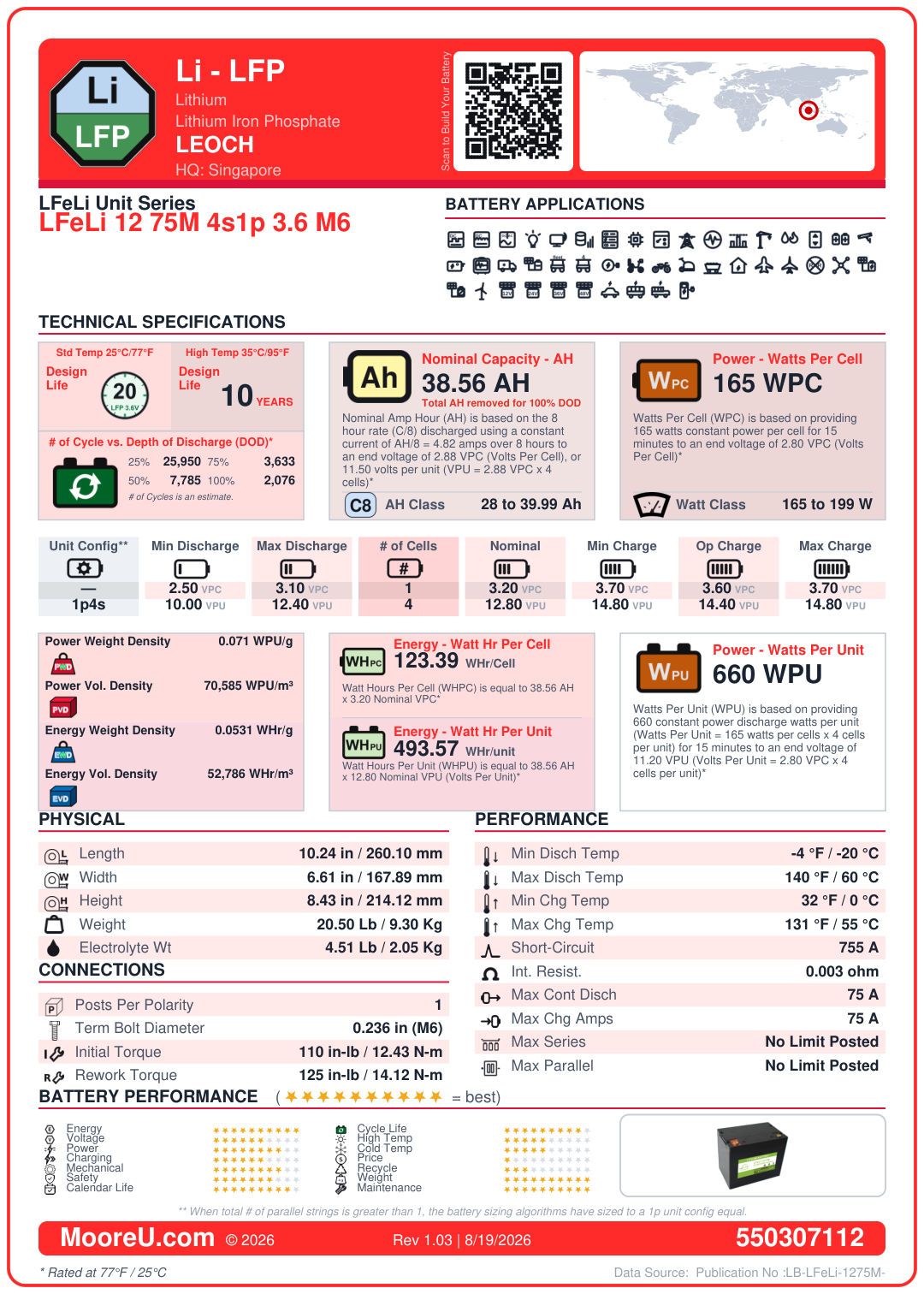

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Leoch Battery LFeLi Unit Series LFeLi 12 75M 4s1p 3 6 M6
Adjustment	1
AH Per String	38.56
AH Per String Rating	8 hr @ 2.875 VPC
Cells Per Unit	4
Nominal VPC	3.2
Model KWH	0
Charge VPC	3.6 (Min: 3.6, Max: 3.6)
Discharge VPC	Min: 2.7, Max: 3.05
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	0°C to 55°C
ISC Amps	755
Internal Resistance	0.003 Ohms
Dimensions (L x W x H)	10.24 x 6.61 x 8.43 in
Weight	20.5 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	110 / 125 in-lbs
Container	ABS
Terminal	F2
FOB	T
Max Continuous Discharge	75 Amps
Max Charge Amps	75 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	165
Watts Per Cell Rating	15 min @ 2.8 VPC
Weight of Electrolyte	4.51 lbs
