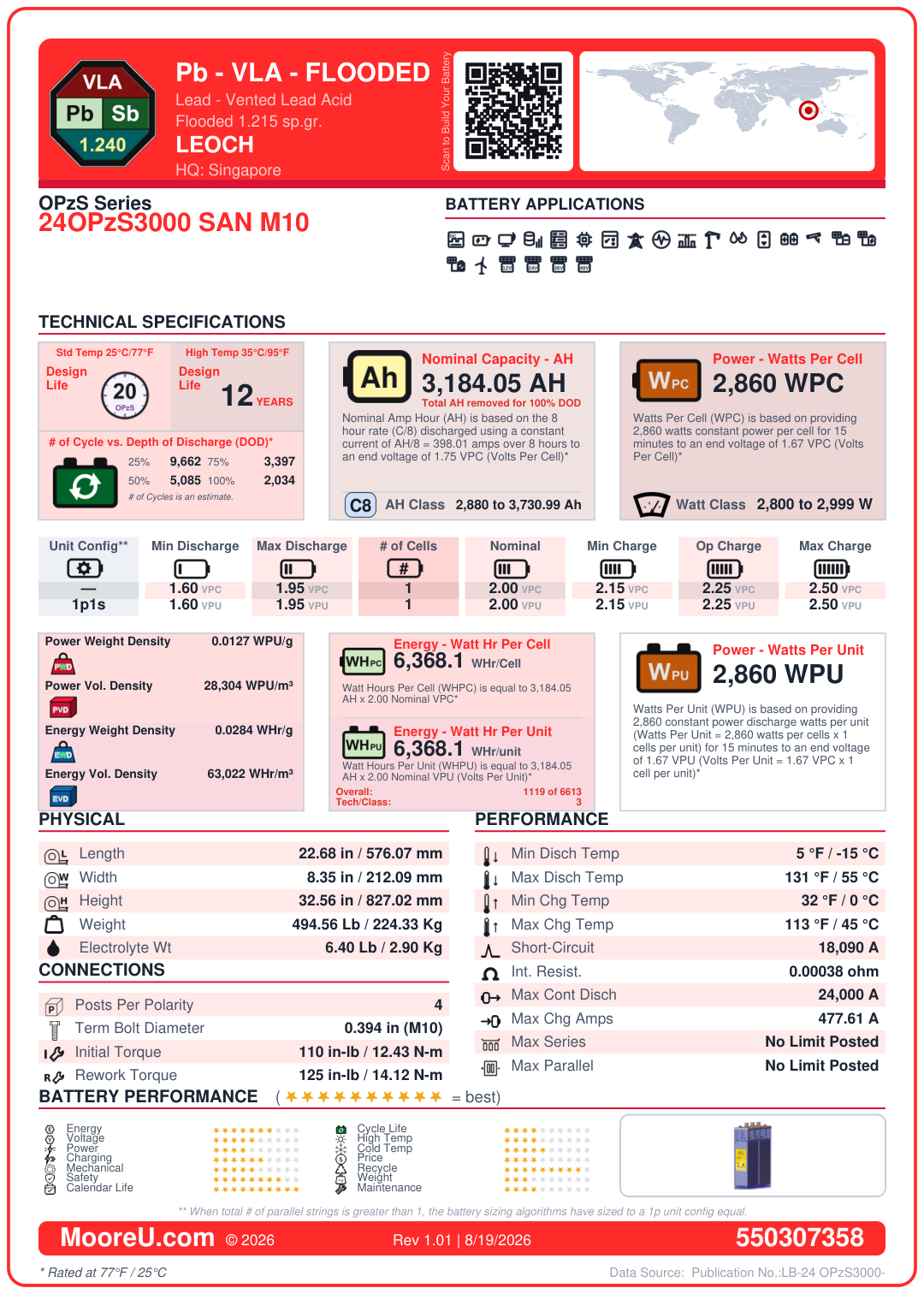

Front of card
Back of card
Furnish New Battery Leoch Battery OPzS Series 24OPzS3000 SAN M10
Technology: Pb_Sb_VLA_Flooded_1240.pngFurnish New Battery Leoch Battery OPzS Series 24OPzS3000 SAN M10
$3,061.89
Build my Battery
Recycle My Battery
Furnish New Battery Leoch Battery OPzS Series 24OPzS3000 SAN M10
| Battery Model | Leoch Battery OPzS Series 24OPzS3000 SAN M10 |
|---|---|
| Adjustment | 1 |
| AH Per String | 3184.0512 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 6 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -15°C to 55°C |
| Charge Temp Range | 0°C to 45°C |
| ISC Amps | 18090 |
| Internal Resistance | 0.00038 Ohms |
| Dimensions (L x W x H) | 22.68 x 8.35 x 32.56 in |
| Weight | 494.56 lbs |
| Number of Posts | 4 |
| Terminal Bolt Diameter | 0.393701 in (M10 mm) |
| Torque (Initial / Maintenance) | 110 / 125 in-lbs |
| Container | SAN |
| Terminal | M10 |
| FOB | T |
| Max Continuous Discharge | 24000 Amps |
| Max Charge Amps | 477.60768 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 2860 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 6.4042 lbs |
