Furnish New Battery Leoch Battery OPzV Series 3OPzV100FT ABS M6
Technology: Pb_Ca_Sn_Al_VRLA_GEL.pngFurnish New Battery Leoch Battery OPzV Series 3OPzV100FT ABS M6
$758.74
Build my Battery
Recycle My Battery

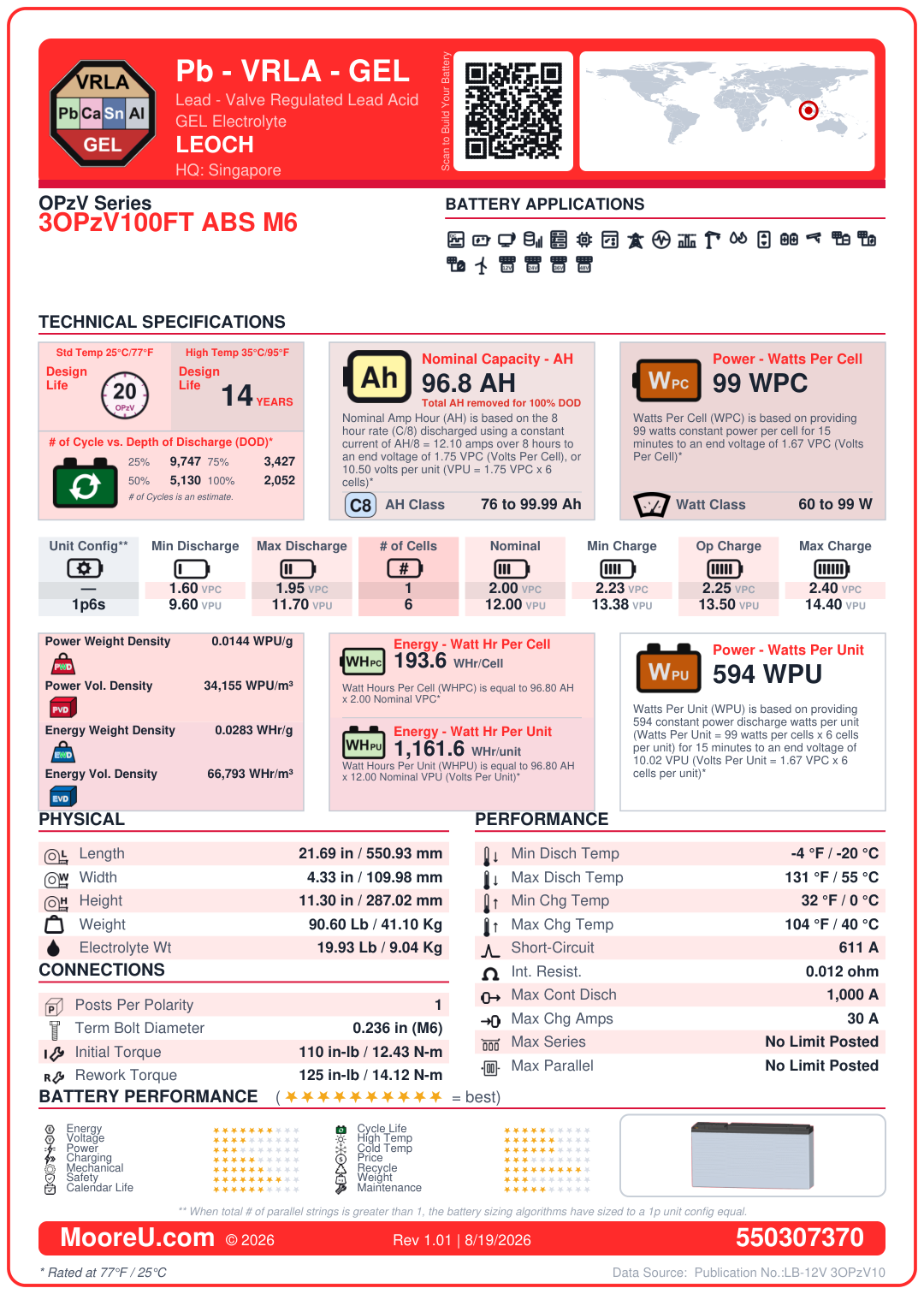

Furnish New Battery Leoch Battery OPzV Series 3OPzV100FT ABS M6
| Battery Model | Leoch Battery OPzV Series 3OPzV100FT ABS M6 |
|---|---|
| Adjustment | 1 |
| AH Per String | 96.8 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | 0°C to 40°C |
| ISC Amps | 611 |
| Internal Resistance | 0.012 Ohms |
| Dimensions (L x W x H) | 21.69 x 4.33 x 11.3 in |
| Weight | 90.6 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 110 / 125 in-lbs |
| Container | ABS |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 1000 Amps |
| Max Charge Amps | 30 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 99 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 19.932 lbs |
