Furnish New Battery Leoch Battery PLC Plus C Series PLC Plus C 180FT V0 M8
Technology: Pb_VRLA_AGM_500.pngFurnish New Battery Leoch Battery PLC Plus C Series PLC Plus C 180FT V0 M8
$149.81
Build my Battery
Recycle My Battery

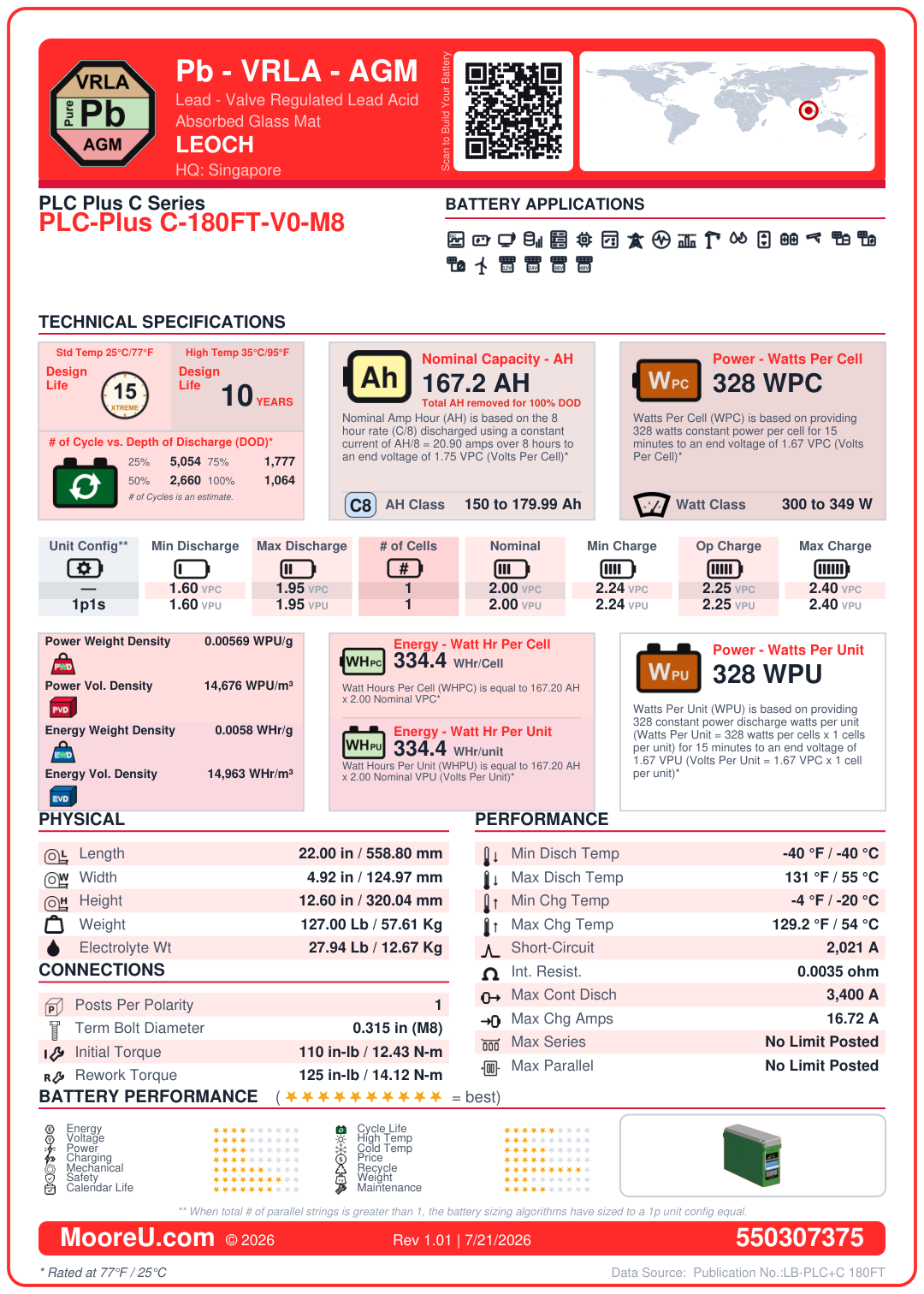

Furnish New Battery Leoch Battery PLC Plus C Series PLC Plus C 180FT V0 M8
| Battery Model | Leoch Battery PLC Plus C Series PLC Plus C 180FT V0 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 167.2 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 0 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 55°C |
| Charge Temp Range | -20°C to 54°C |
| ISC Amps | 2021 |
| Internal Resistance | 0.0035 Ohms |
| Dimensions (L x W x H) | 22 x 4.92 x 12.6 in |
| Weight | 127 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 110 / 125 in-lbs |
| Container | ABS |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 3400 Amps |
| Max Charge Amps | 16.72 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 328 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 27.94 lbs |
