Furnish New Battery Leoch Battery PLX Series PLX12 620 V0 M6

Technology: Pb_VRLA_AGM_GEL_850.png
Furnish New Battery Leoch Battery PLX Series PLX12 620 V0 M6

$682.01

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Leoch Battery PLX Series PLX12 620 V0 M6

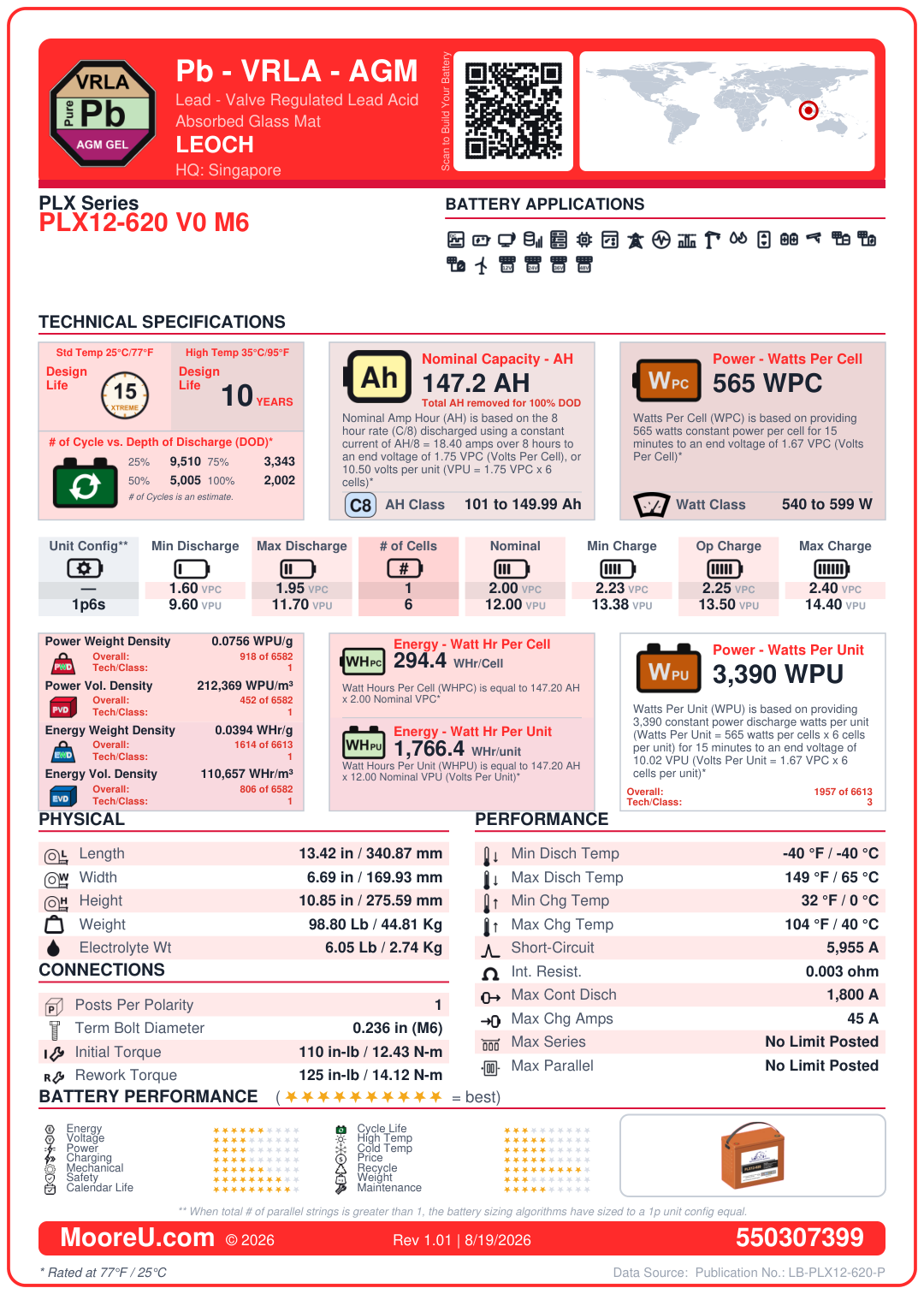

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Leoch Battery PLX Series PLX12 620 V0 M6
Adjustment	1
AH Per String	147.2
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	2
Charge VPC	2.4 (Min: 2.4, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 65°C
Charge Temp Range	0°C to 40°C
ISC Amps	5955
Internal Resistance	0.003 Ohms
Dimensions (L x W x H)	13.42 x 6.69 x 10.85 in
Weight	98.8 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	110 / 125 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	1800 Amps
Max Charge Amps	45 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	565
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	6.05 lbs
