Furnish New Battery Leoch Battery XP Series XP12 400 ABS M6

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Leoch Battery XP Series XP12 400 ABS M6

$425.78

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Leoch Battery XP Series XP12 400 ABS M6

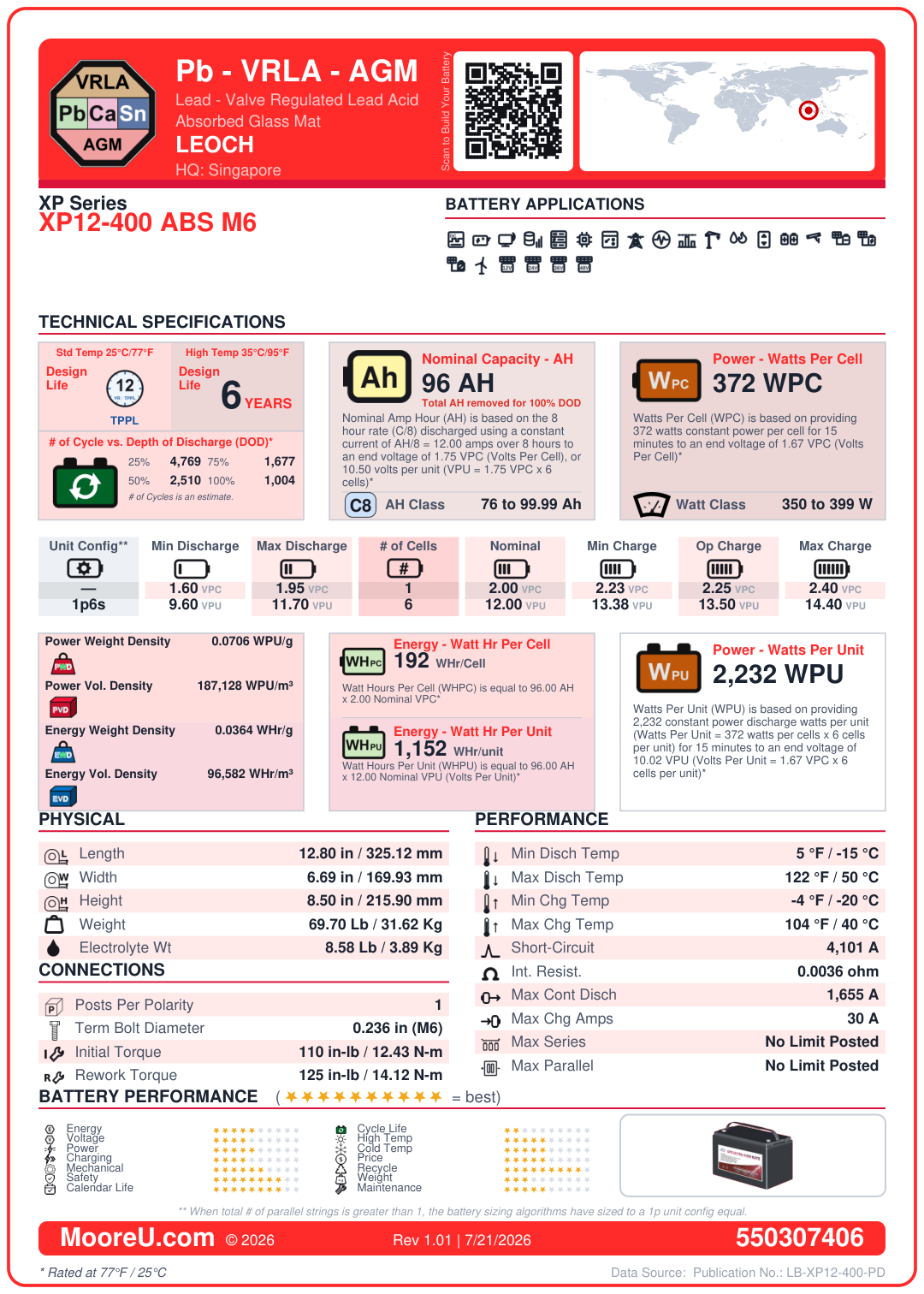

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Leoch Battery XP Series XP12 400 ABS M6
Adjustment	1
AH Per String	96
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-15°C to 50°C
Charge Temp Range	-20°C to 40°C
ISC Amps	4101
Internal Resistance	0.0036 Ohms
Dimensions (L x W x H)	12.8 x 6.69 x 8.5 in
Weight	69.7 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	110 / 125 in-lbs
Container	ABS
Terminal	M6
FOB	T
Max Continuous Discharge	1655 Amps
Max Charge Amps	30 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	372
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	8.58 lbs
