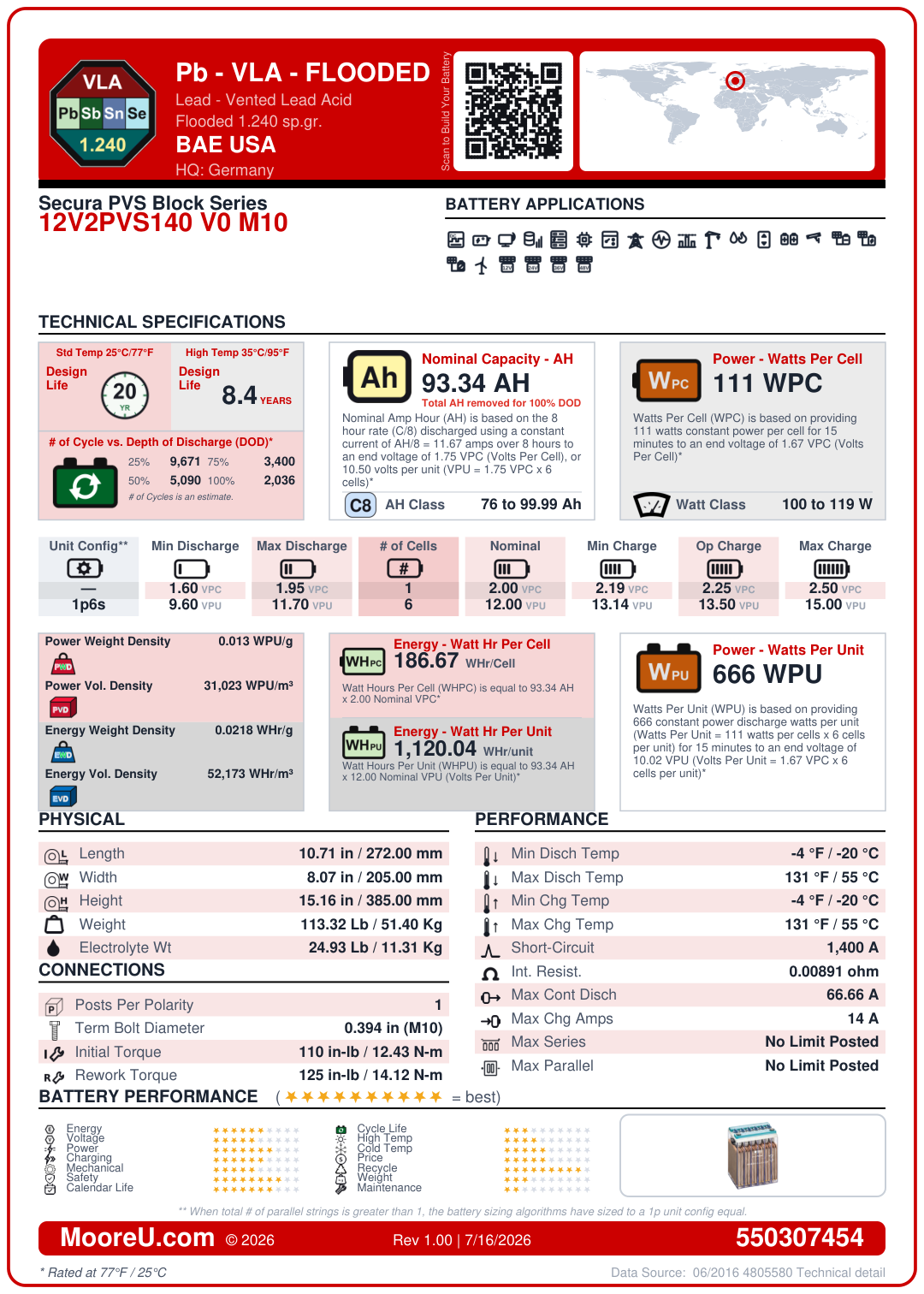

Front of card
Back of card
Furnish New Battery BAE Battery Secura PVS Block Series 12V2PVS140 V0 M10
Technology: Pb_Sb_Sn_Se_VLA_Flooded_1240.pngFurnish New Battery BAE Battery Secura PVS Block Series 12V2PVS140 V0 M10
$340.72
Build my Battery
Recycle My Battery
Furnish New Battery BAE Battery Secura PVS Block Series 12V2PVS140 V0 M10
| Battery Model | BAE Battery Secura PVS Block Series 12V2PVS140 V0 M10 |
|---|---|
| Adjustment | 1 |
| AH Per String | 93.33664 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.85 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -20°C to 55°C |
| ISC Amps | 1400 |
| Internal Resistance | 0.00891 Ohms |
| Dimensions (L x W x H) | 10.7087 x 8.07087 x 15.1575 in |
| Weight | 113.3176 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.393701 in (M10 mm) |
| Torque (Initial / Maintenance) | 110 / 125 in-lbs |
| Container | V0 |
| Terminal | M10 |
| FOB | T |
| Max Continuous Discharge | 66.66 Amps |
| Max Charge Amps | 14.000496 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 111 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 24.929872 lbs |
