Furnish New Battery Hoppecke solar power VRM Series VRM6 200 V0 M8

Technology: Pb_VRLA_AGM_GEL_850.png
Furnish New Battery Hoppecke solar power VRM Series VRM6 200 V0 M8

$388.36

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Hoppecke solar power VRM Series VRM6 200 V0 M8

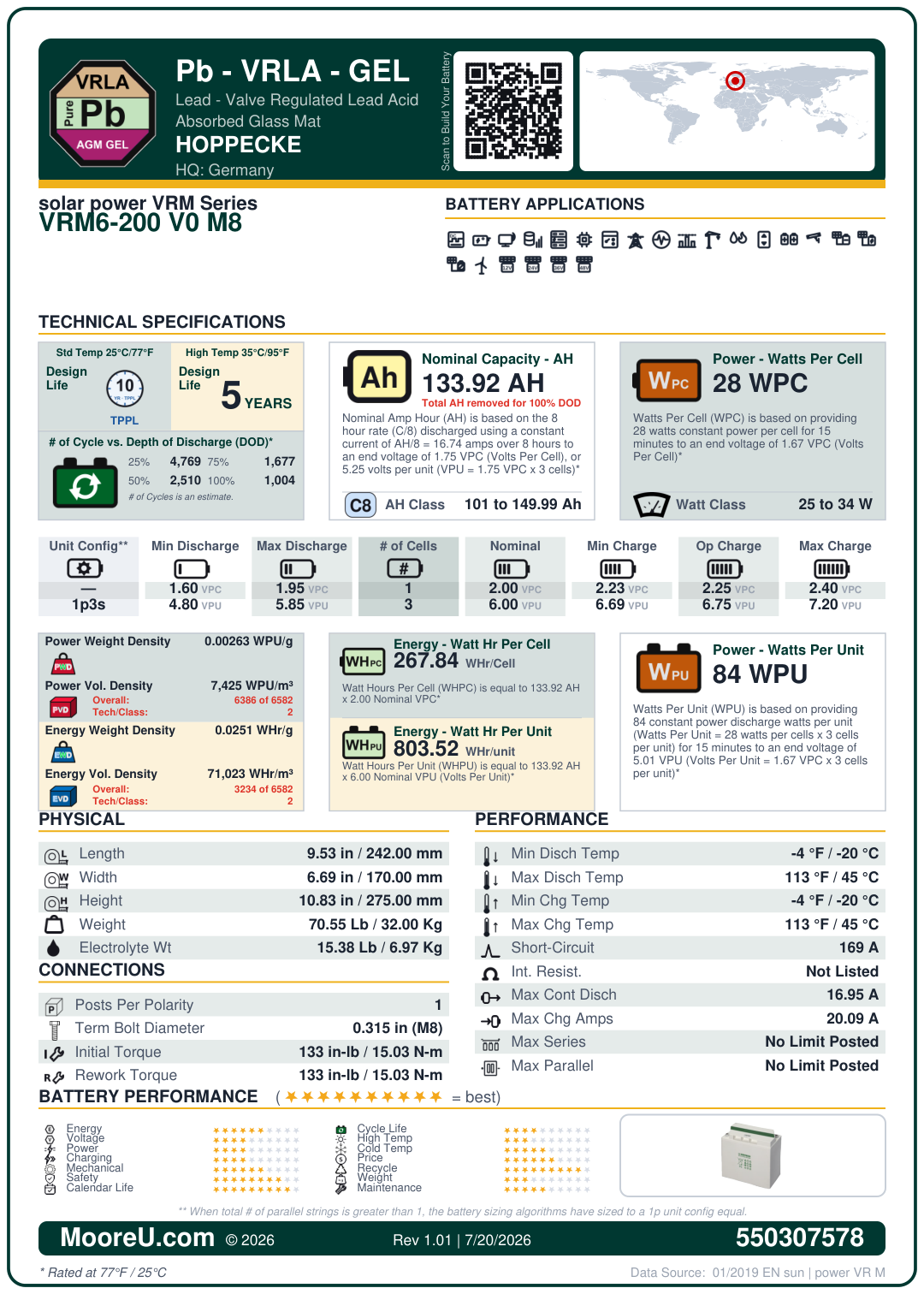

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Hoppecke solar power VRM Series VRM6 200 V0 M8
Adjustment	1
AH Per String	133.92
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	3
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.85
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 45°C
Charge Temp Range	-20°C to 45°C
ISC Amps	169
Internal Resistance	0.0011 Ohms
Dimensions (L x W x H)	9.52756 x 6.69291 x 10.8268 in
Weight	70.5479 lbs
Number of Posts	1
Terminal Bolt Diameter	0.3149 in (M8 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	16.95 Amps
Max Charge Amps	20.088 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	28
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	15.3750388 lbs
