Furnish New Battery Narada Lithium Series FE105A M6

Technology: Li_LFP.png
Furnish New Battery Narada Lithium Series FE105A M6

$672.56

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Narada Lithium Series FE105A M6

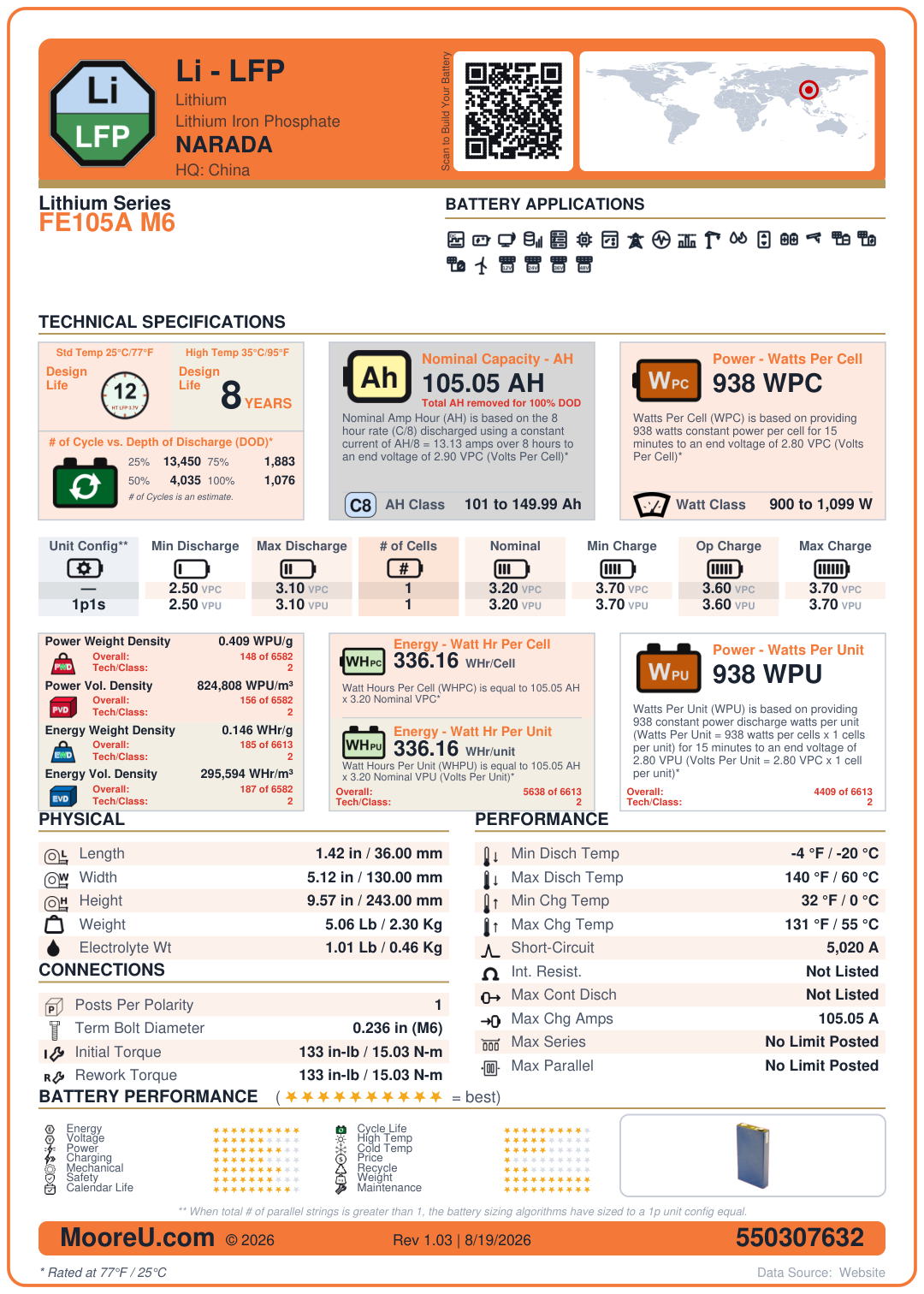

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Narada Lithium Series FE105A M6
Adjustment	1
AH Per String	105.05
AH Per String Rating	8 hr @ 2.9 VPC
Cells Per Unit	1
Nominal VPC	3.2
Model KWH	0
Charge VPC	3.6 (Min: 3.6, Max: 3.6)
Discharge VPC	Min: 2.7, Max: 3.1
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	0°C to 55°C
ISC Amps	5020
Internal Resistance	0.0011 Ohms
Dimensions (L x W x H)	1.41732 x 5.11811 x 9.25197 in
Weight	5.06 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	0 Amps
Max Charge Amps	105.05 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	938
Watts Per Cell Rating	15 min @ 2.8 VPC
Weight of Electrolyte	1.012 lbs
