Furnish New Battery BAE Battery Secura OPzV Series 17OPzV2125 M10
Technology: Pb_Ca_Sn_VRLA_GEL.pngFurnish New Battery BAE Battery Secura OPzV Series 17OPzV2125 M10
$2,149.95
Build my Battery
Recycle My Battery

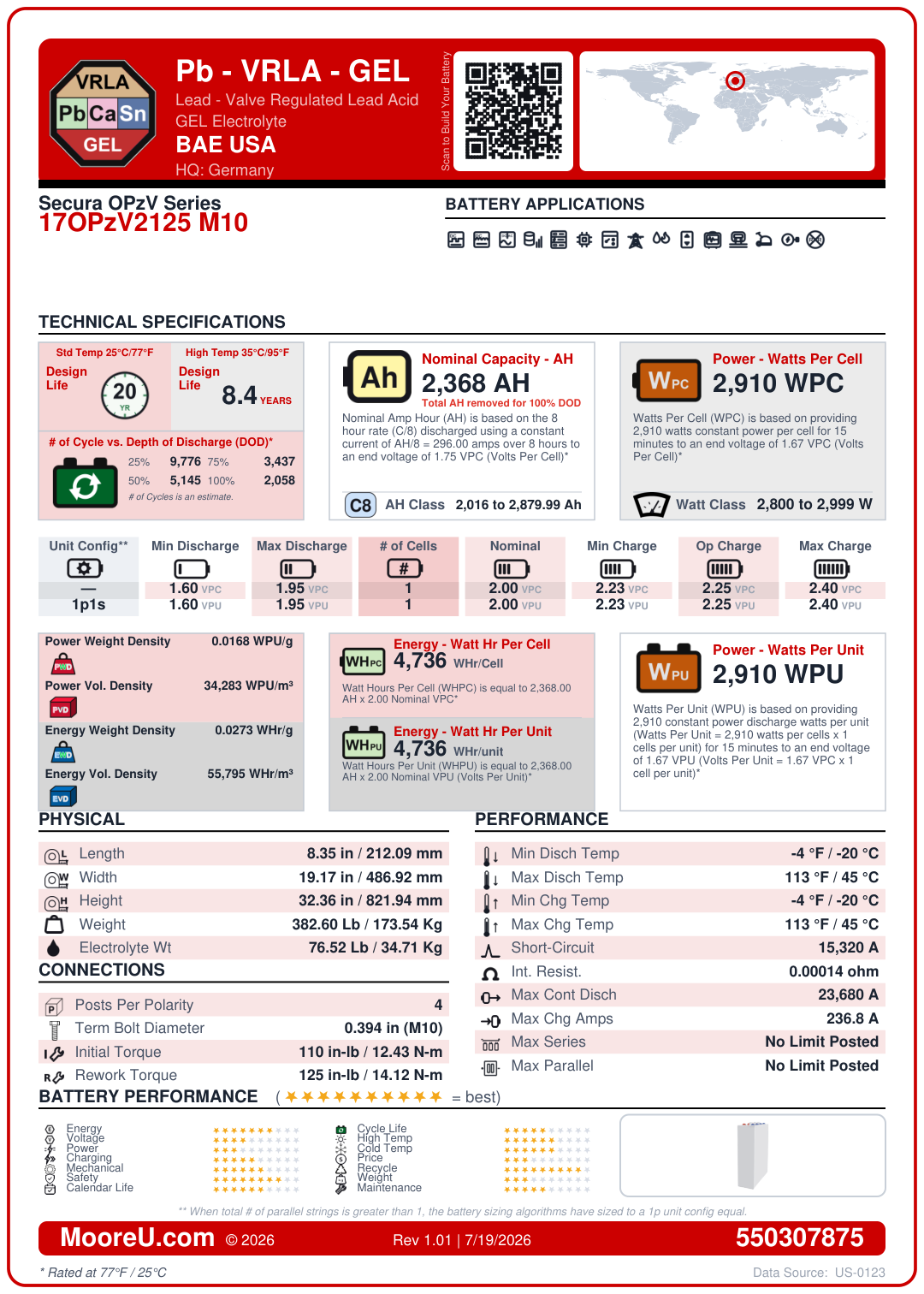

Furnish New Battery BAE Battery Secura OPzV Series 17OPzV2125 M10
| Battery Model | BAE Battery Secura OPzV Series 17OPzV2125 M10 |
|---|---|
| Adjustment | 1 |
| AH Per String | 2368 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 5 |
| Charge VPC | 2.33 (Min: 2.33, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 45°C |
| Charge Temp Range | -20°C to 45°C |
| ISC Amps | 15320 |
| Internal Resistance | 0.00014 Ohms |
| Dimensions (L x W x H) | 8.35 x 19.17 x 32.36 in |
| Weight | 382.6 lbs |
| Number of Posts | 4 |
| Terminal Bolt Diameter | 0.393701 in (M10 mm) |
| Torque (Initial / Maintenance) | 110 / 125 in-lbs |
| Container | V0 |
| Terminal | M10 |
| FOB | T |
| Max Continuous Discharge | 23680 Amps |
| Max Charge Amps | 236.8 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 2910 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 76.52 lbs |
