Furnish New Battery Vision CT Series CT12 55X M6

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Vision CT Series CT12 55X M6

$235.60

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Vision CT Series CT12 55X M6

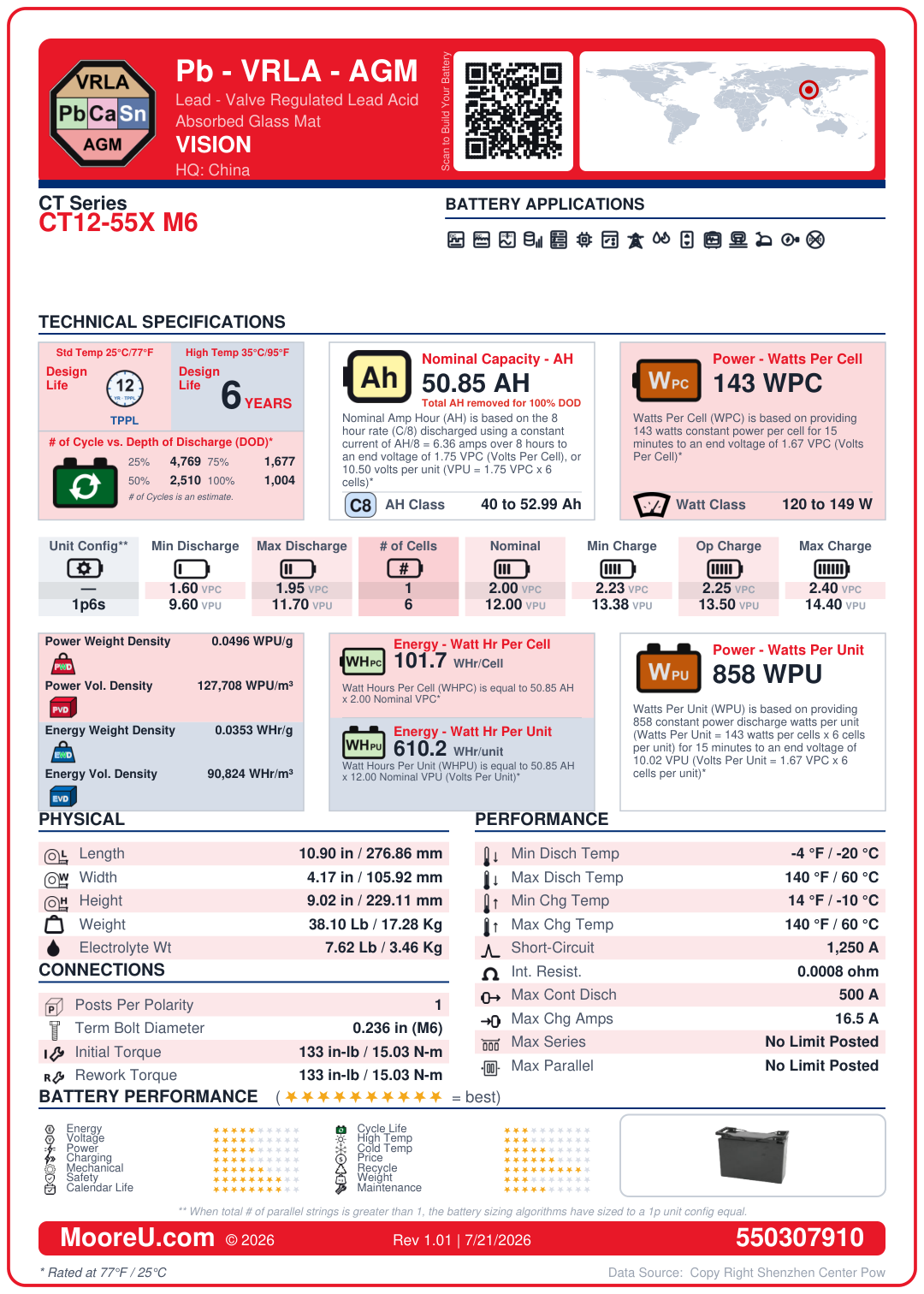

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Vision CT Series CT12 55X M6
Adjustment	1
AH Per String	50.85
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.35 (Min: 2.35, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.92
Operational Temp Comp	-0.002 V/°C/cell
Cycle Temp Comp	-0.003 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	-10°C to 60°C
ISC Amps	1250
Internal Resistance	0.0008 Ohms
Dimensions (L x W x H)	10.9 x 4.17 x 9.02 in
Weight	38.1 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	500 Amps
Max Charge Amps	16.5 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	143
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	7.62 lbs
