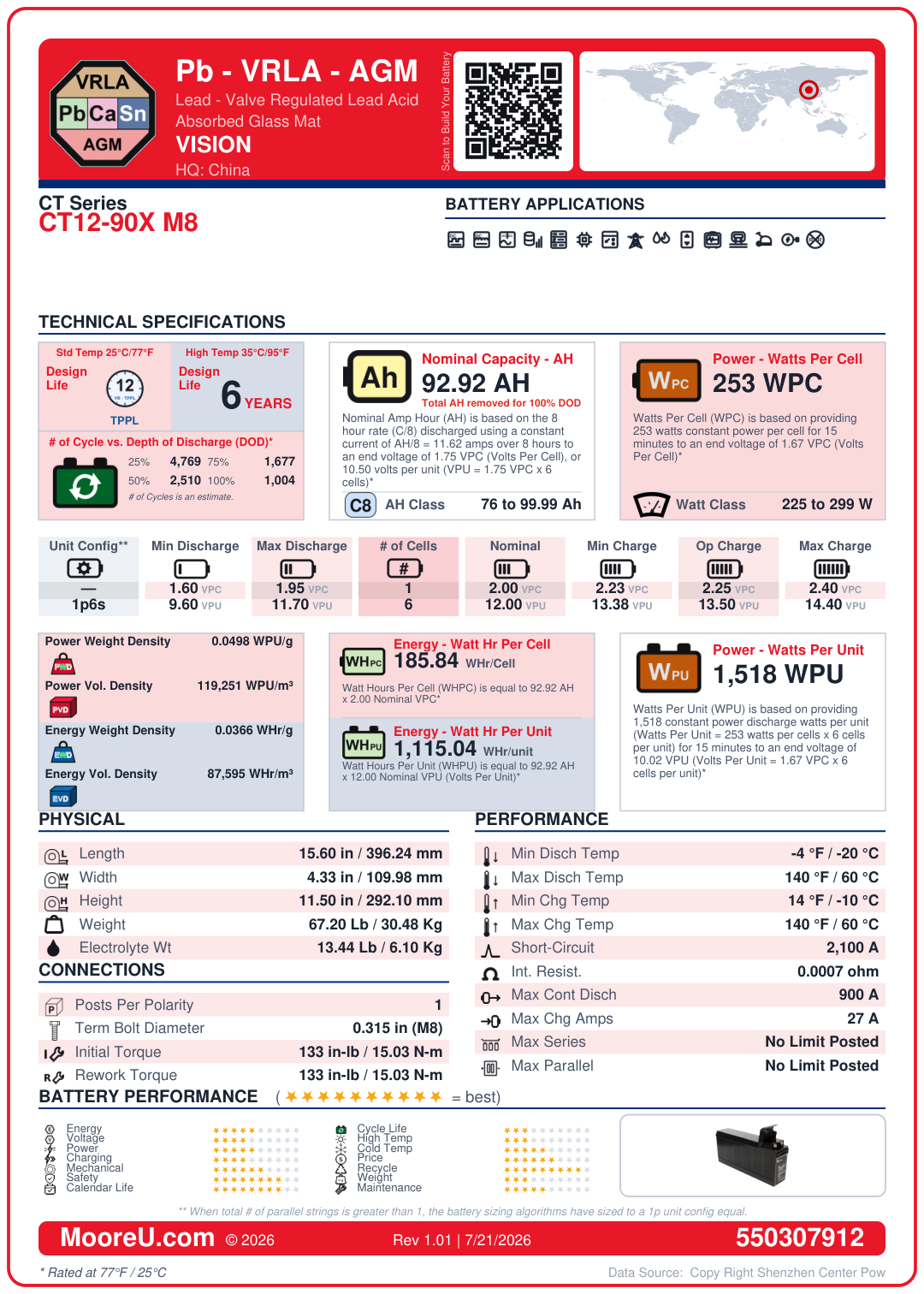

Furnish New Battery Vision CT Series CT12 90X M8
Technology: Pb_Ca_Sn_VRLA_AGM.pngFurnish New Battery Vision CT Series CT12 90X M8
$430.52
Build my Battery
Recycle My Battery
Furnish New Battery Vision CT Series CT12 90X M8
| Battery Model | Vision CT Series CT12 90X M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 92.92 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.35 (Min: 2.35, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.92 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | -10°C to 60°C |
| ISC Amps | 2100 |
| Internal Resistance | 0.0007 Ohms |
| Dimensions (L x W x H) | 15.6 x 4.33 x 11.5 in |
| Weight | 67.2 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 900 Amps |
| Max Charge Amps | 27 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 253 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 13.44 lbs |
