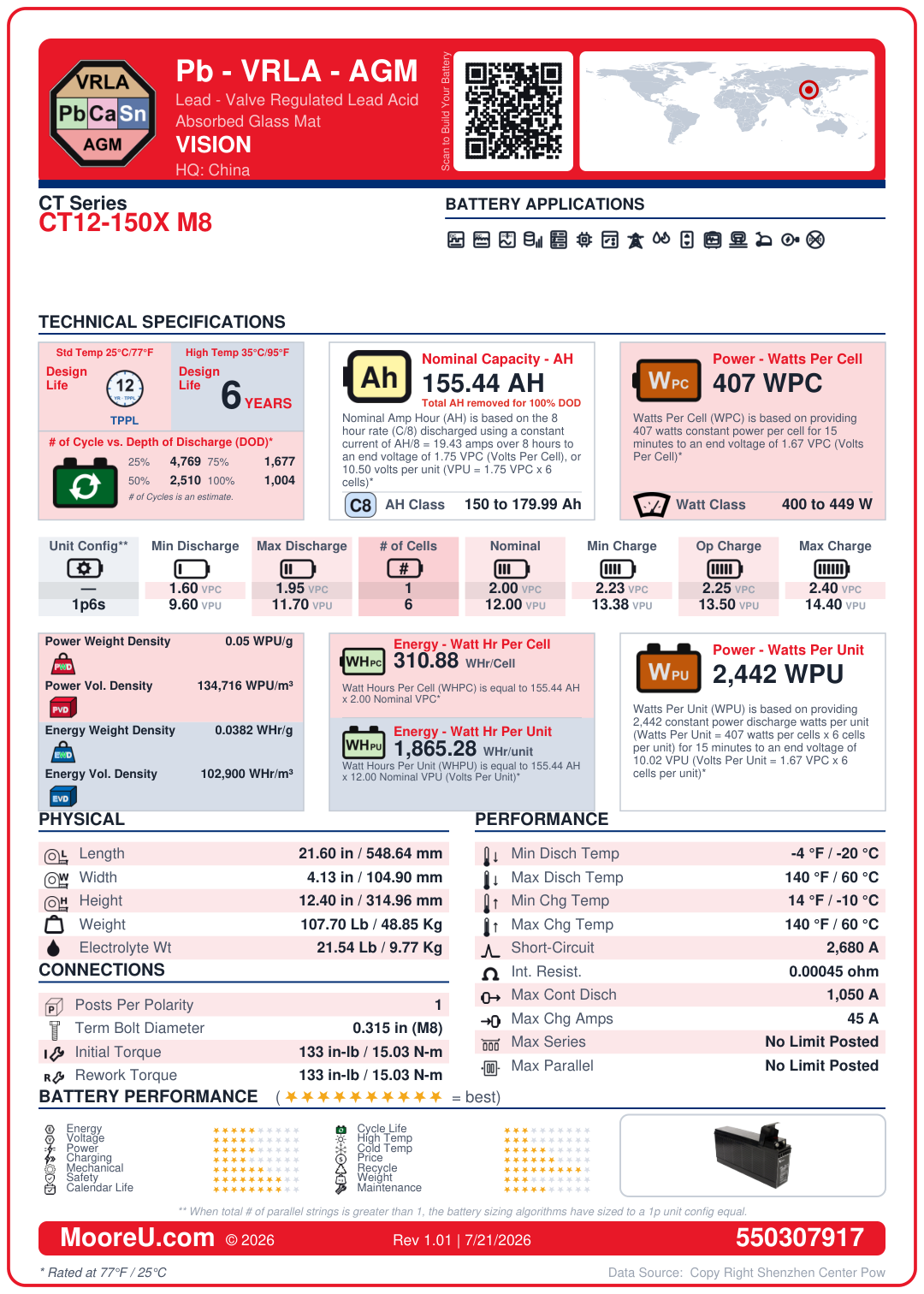

Furnish New Battery Vision CT Series CT12 150X M8
Technology: Pb_Ca_Sn_VRLA_AGM.pngFurnish New Battery Vision CT Series CT12 150X M8
$720.18
Build my Battery
Recycle My Battery
Furnish New Battery Vision CT Series CT12 150X M8
| Battery Model | Vision CT Series CT12 150X M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 155.44 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.35 (Min: 2.35, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.92 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | -10°C to 60°C |
| ISC Amps | 2680 |
| Internal Resistance | 0.00045 Ohms |
| Dimensions (L x W x H) | 21.6 x 4.13 x 12.4 in |
| Weight | 107.7 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 1050 Amps |
| Max Charge Amps | 45 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 407 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 21.54 lbs |
