Furnish New Battery Vision EV Series EV24 85A AM PP AM

Technology: Pb_Ca_Sn_Al_VRLA_AGM_506.png
Furnish New Battery Vision EV Series EV24 85A AM PP AM

$260.40

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Vision EV Series EV24 85A AM PP AM

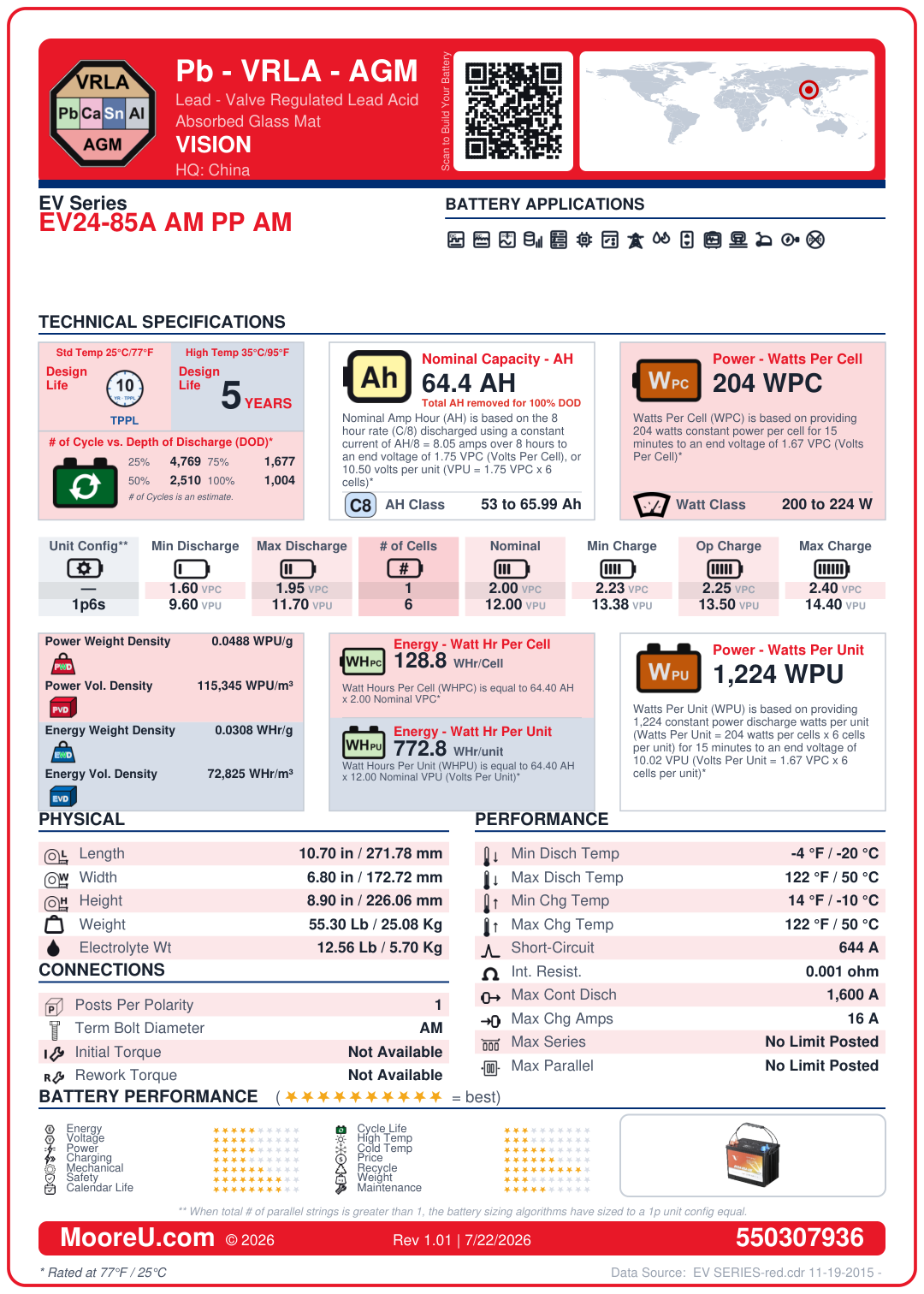

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Vision EV Series EV24 85A AM PP AM
Adjustment	1
AH Per String	64.4
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.35 (Min: 2.35, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.92
Operational Temp Comp	-0.002 V/°C/cell
Cycle Temp Comp	-0.003 V/°C/cell
Discharge Temp Range	-20°C to 50°C
Charge Temp Range	-10°C to 50°C
ISC Amps	644
Internal Resistance	0.001 Ohms
Dimensions (L x W x H)	10.7 x 6.8 x 8.9 in
Weight	55.3 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (AM mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	1600 Amps
Max Charge Amps	16 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	204
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	12.56 lbs
