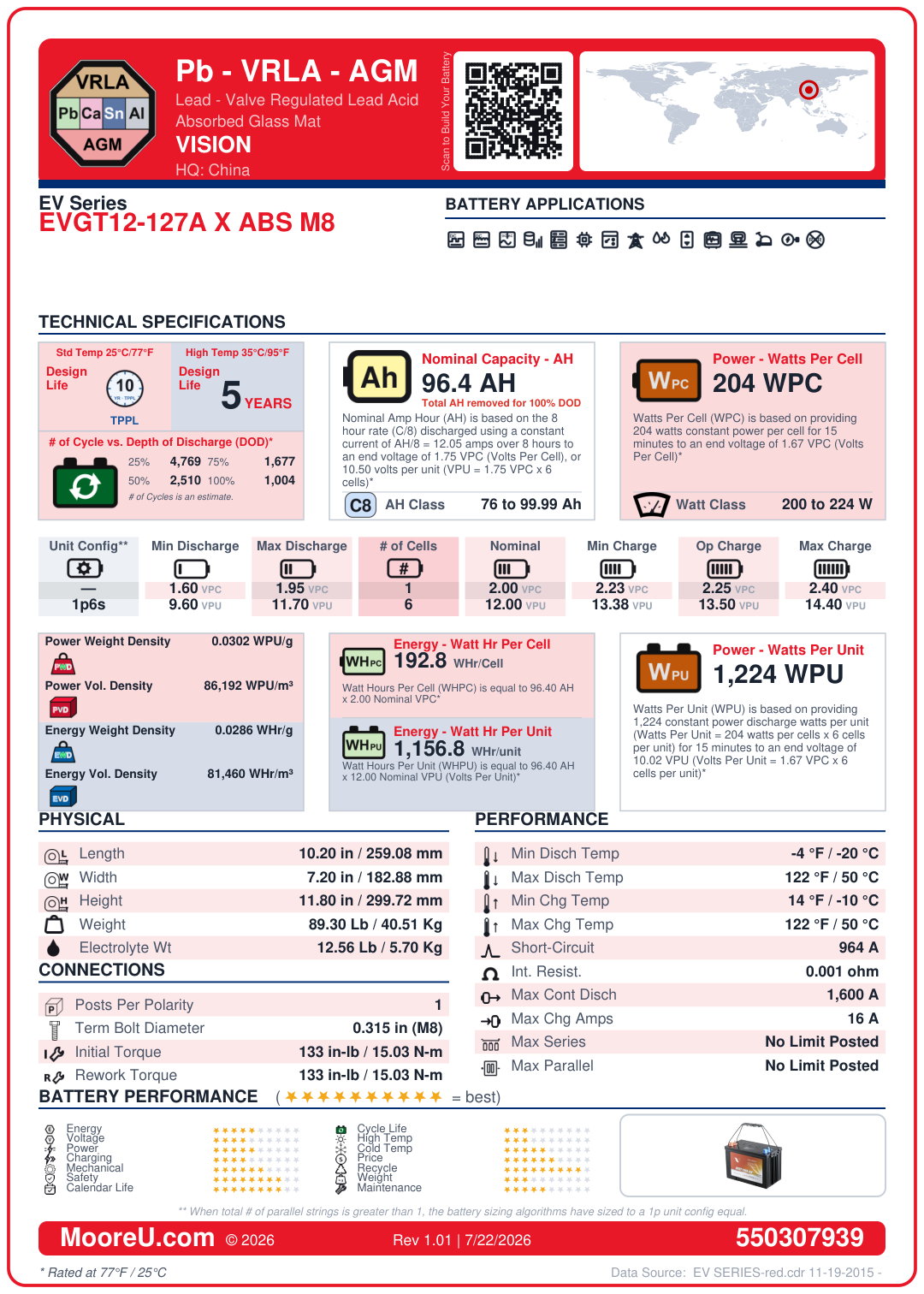

Front of card
Back of card
Furnish New Battery Vision EV Series EVGT12 127A X ABS M8
Technology: Pb_Ca_Sn_Al_VRLA_AGM_506.pngFurnish New Battery Vision EV Series EVGT12 127A X ABS M8
$389.80
Build my Battery
Recycle My Battery
Furnish New Battery Vision EV Series EVGT12 127A X ABS M8
| Battery Model | Vision EV Series EVGT12 127A X ABS M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 96.4 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.35 (Min: 2.35, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.92 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 50°C |
| Charge Temp Range | -10°C to 50°C |
| ISC Amps | 964 |
| Internal Resistance | 0.001 Ohms |
| Dimensions (L x W x H) | 10.2 x 7.2 x 11.8 in |
| Weight | 89.3 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 1600 Amps |
| Max Charge Amps | 16 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 204 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 12.56 lbs |
