Furnish New Battery Vision FM Series 6FM60D X ABS M6

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Vision FM Series 6FM60D X ABS M6

$249.89

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Vision FM Series 6FM60D X ABS M6

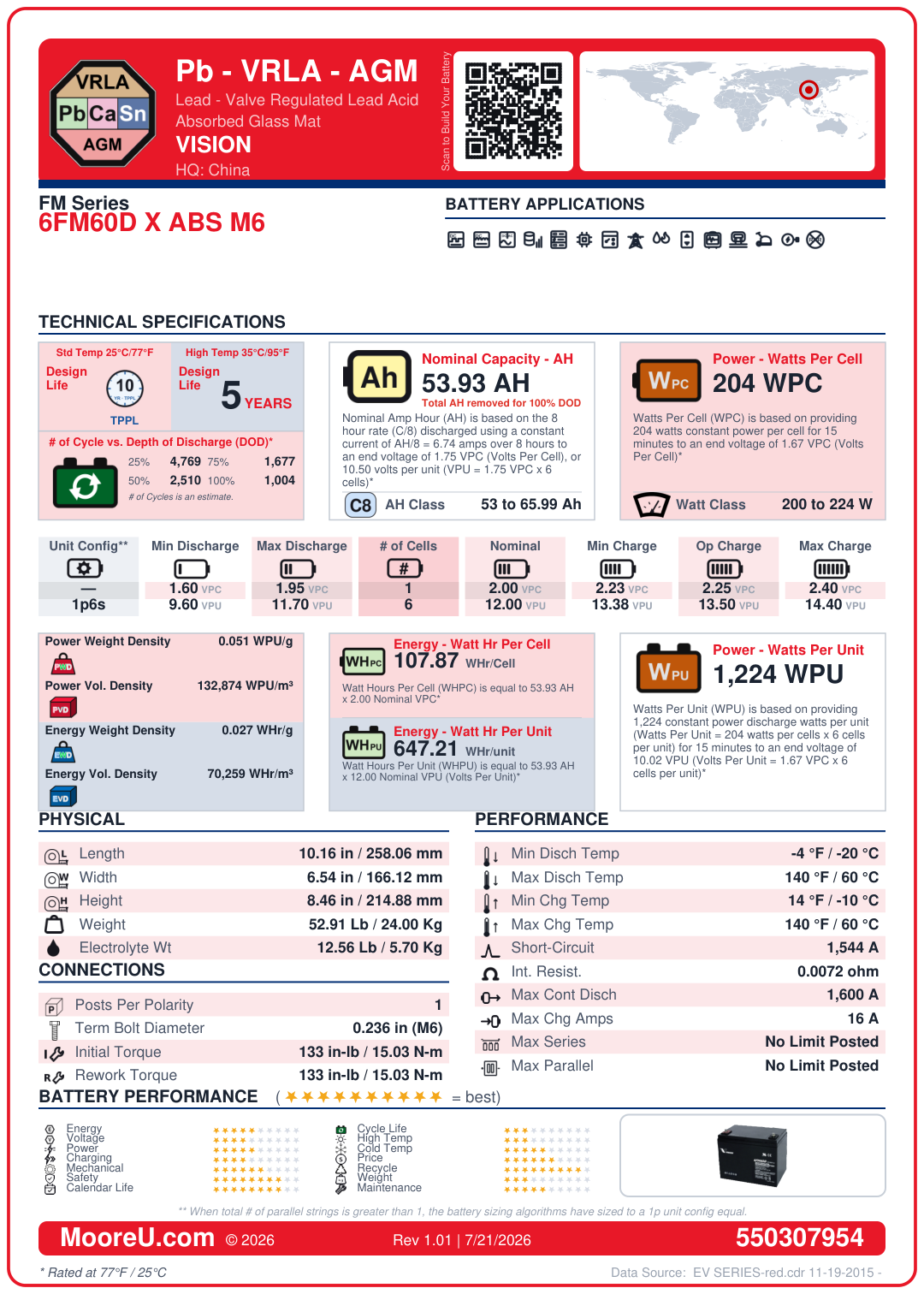

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Vision FM Series 6FM60D X ABS M6
Adjustment	1
AH Per String	53.9345
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.45)
Discharge VPC	Min: 1.6, Max: 1.92
Operational Temp Comp	-0.001 V/°C/cell
Cycle Temp Comp	-0.003 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	-10°C to 60°C
ISC Amps	1544
Internal Resistance	0.0072 Ohms
Dimensions (L x W x H)	10.16 x 6.54 x 8.46 in
Weight	52.91 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	1600 Amps
Max Charge Amps	16 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	204
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	12.56 lbs
